The DIAMOND® is a 3D-controlled dispersion multidirectional reflection panel with a depth factor that is logarithmically varied. It is, therefore, a three-dimension omnidirectional reflection panel that controls primary reflections and fragments the energy in 64 vertices of incidence by using the theoretical numerical sequence ratio of the primitive root as a basis for calculation.
It is built with HIPS recyclable material, and its modular design makes it a particular and high-performance diffuser. The reflection angles were optimised according to mid-size room applications.

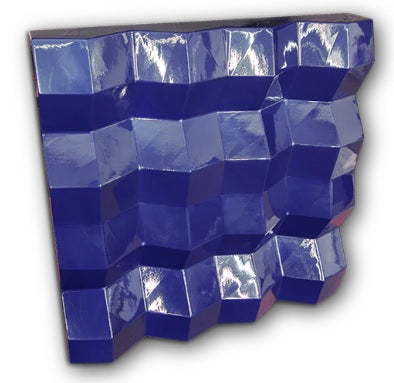

The DIAMOND® is an acoustic diffusion element with a lozenge geometry. The front view refers to 64 interconnected polygons with four multiple sound diffusion angles, which determines a diamond shape.It was created in 16 singular modules that have a quadrangular base and different extrusion heights on each corner. The combination of those positions results in a geometrically scattering diffusion pattern with a very attractive shape.
Thus, the DIAMOND® produces exceptional results of sound diffusion effect and provides spaces with considerable sound perception.
FEATURES
- Manufactured with HIPS
- Average diffusion: 0.63/m2 [>100Hz;<5KHz]
- Fire-resistance: VO - UL94 standards (similar to M2)
- 100% recyclable
- Installation: accessories included
Drawings and Dimensions
| Model | Height | Width | Depth | Weight |
| DIA060 | 60 cm (23.62") | 60 cm (23.62") | 10.5 cm (4.13") | 4.5 kg (9.92 lbs) |
Absorption Coefficient
Color Options
Please give us a call and we can help you with what Panel and Color!
Diamond ship in 3 or 6 panels per box.
