Telefunken M80 Super Cardioid Dynamic Microphone

Note: As of February 28, 2023, lead times on the M80 and M81 variations of Dynamic microphones is 16+ weeks.

TELEFUNKEN Elektroakustik has created the M80 to give the user a superior alternative to the midrange-laden character of the "industry standard microphone."

Featuring a wider frequency response and higher SPL capabilities the M80 delivers condenser-like performance in a rugged dynamic design, producing a microphone equally suitable for on both the stage and in the studio.

Due to its low mass capsule and super thin (yet surprisingly rugged) capsule membrane the M80 presents a wider range of emotion from a live vocal with an intimacy that has been traditionally reserved for studio quality condenser microphones.

The head grill and capsule assembly have been designed to reduce proximity effect resulting in added low-end clarity for vocals, while still providing strength and authority with an open airy character. A tight cardioid polar pattern and a frequency response boasting a subtle rise in the high-end result in a microphone that is ideal for live vocal applications.

The TELEFUNKEN M80 also features a custom wound impedance matching transformer which is where the magic really takes place. When coupled with our proprietary capsule assembly, the results have won hearts and minds in far less time since it's introduction than we ever imagined possible.

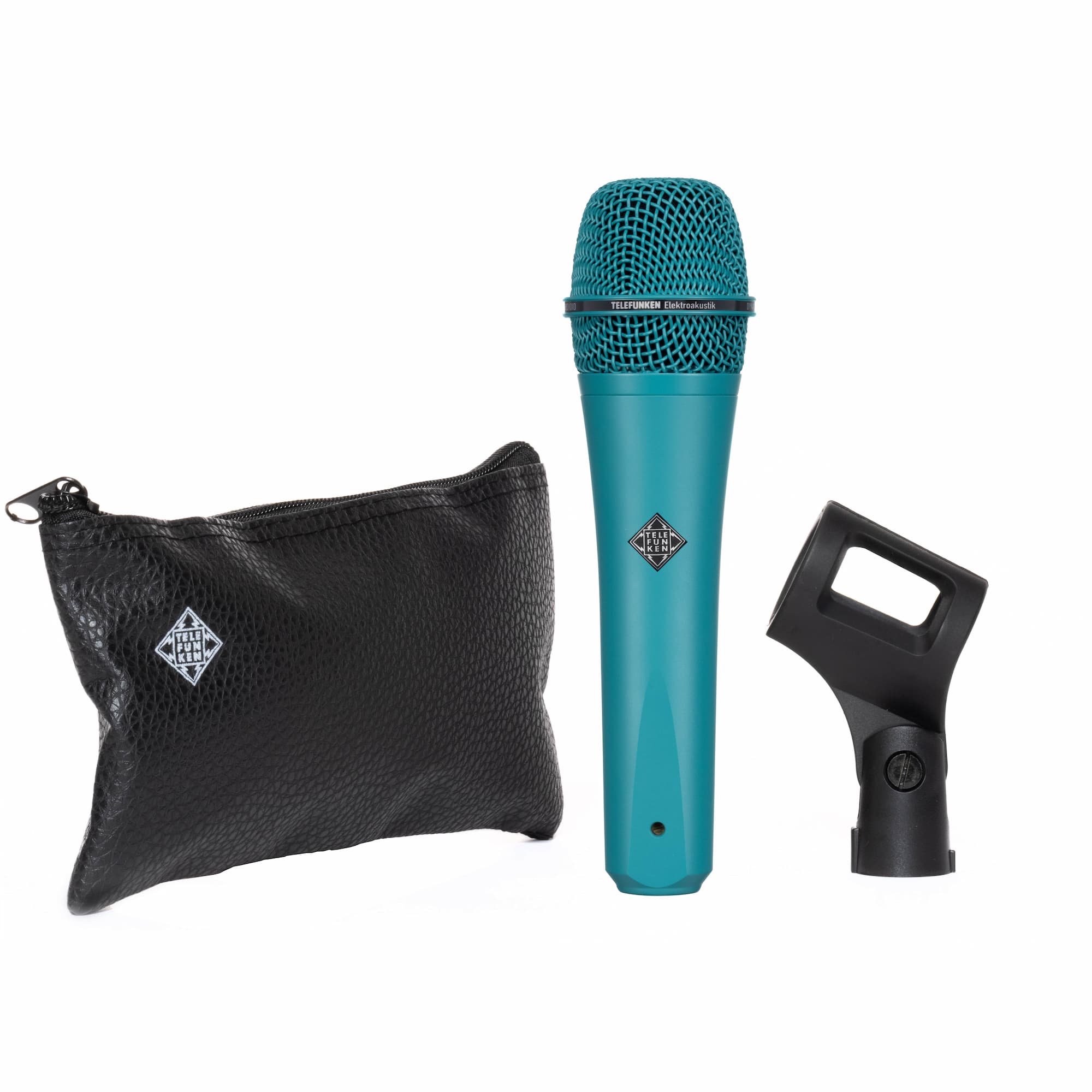

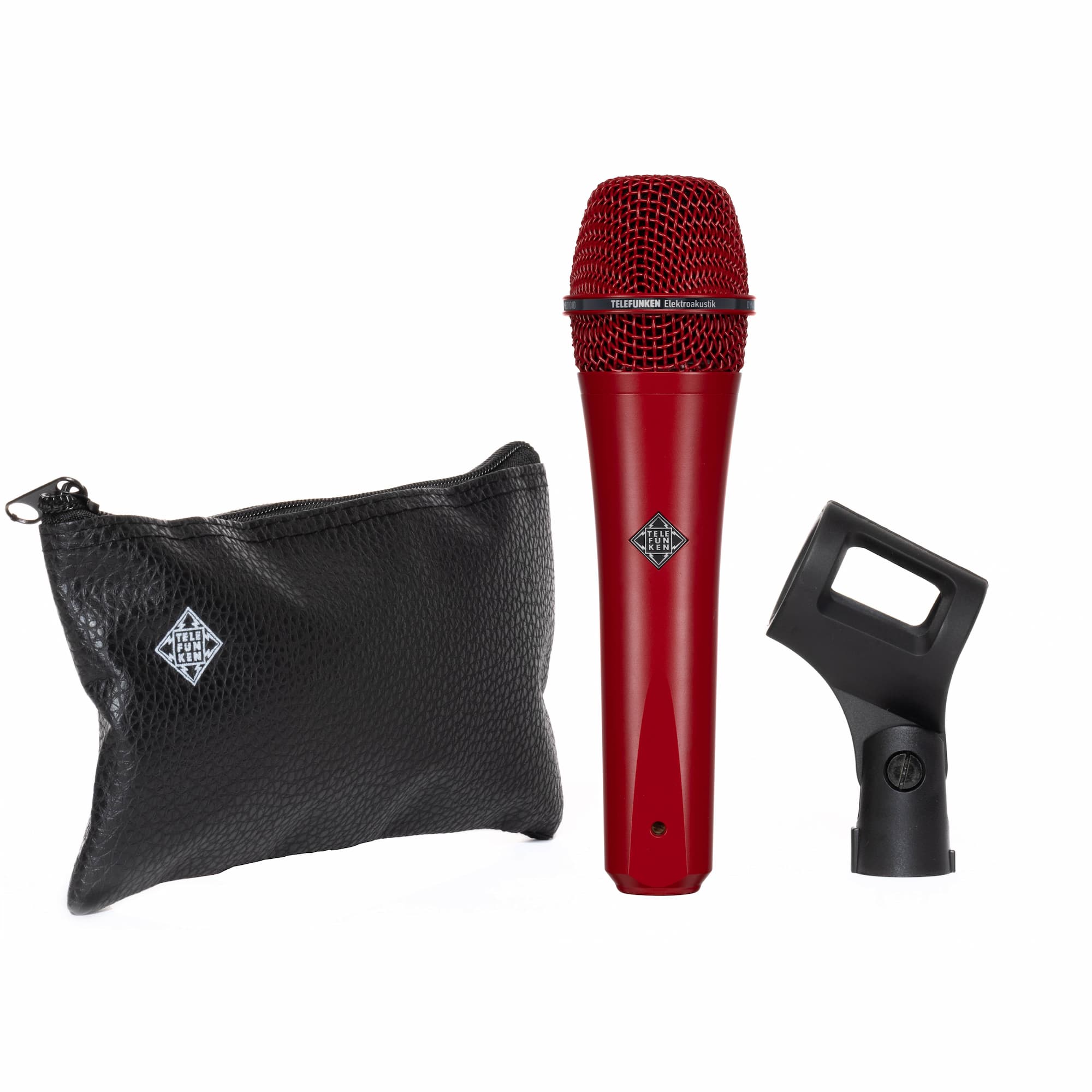

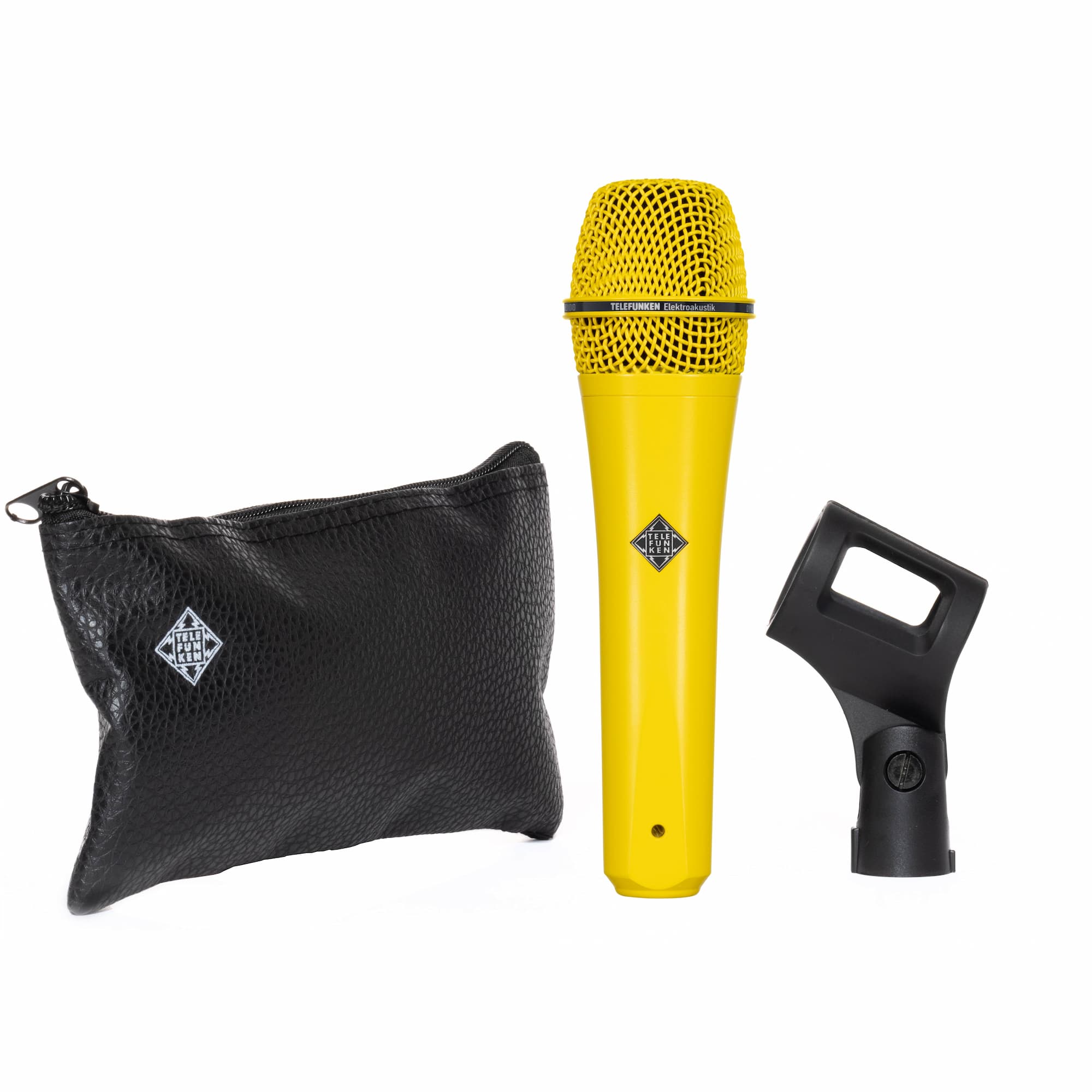

The M80 is offered with either a Black or Chrome head grill. In addition, a variety of solid color, wood or metal finishes are available from the TELEFUNKEN Custom Shop.

Specifications

Type Dynamic             Moving Coil
Capsule                       25 mm
Tube Type                   n/a
Transformer                Custom Wound Telefunken T80
Polar Pattern              Super Cardioid
Frequency Range      50 Hz / 18 kHz
Sensitivity                  1.54 mV/Pa
THD at 1kHz at 1Pa (Amplifier) n/a
Output Impedance      325 ?
Maximum SPL (for 1% THD) 135 dB
S/N Ratio                   n/a
Self Noise (Amplifier) n/a
Dimensions / Size      184 mm L x 48 mm Dia.
Weight                         387 g
Current Draw from Mains 0 mA
Power Supply            n/a
Cable                         n/a
Shockmount              M 780 - Mic Clip
Wooden Box             n/a
Flight Case                n/a
