Apogee Symphony I/O MKII Dante + Pro Tools HD Chassis with 8x8 Analog I/O + 8 Mic Pre Amps

Sale price$ 6,425.00
SKU: SYM2-CONNECT-8-DANTE

Call us at 1-877-223-8858 or Ask a Question below

Apogee Symphony I/O MKII Dante + Pro Tools HD Chassis with 8x8 Analog I/O + 8 Mic Pre Amps

Model

Apogee Symphony I/O MKII Dante + Pro Tools HD Chassis with 8x8 Analog I/O + 8 Mic Pre Amps

Trade in and Trade Up to Apogee Symphony IO MkII

June 1, 2024 – August 31, 2024

Trade up to Symphony I/O MkII

  • Get up to $1,200 toward your purchase
  • Trade in any audio interface from any brand
  • Customer gets $149 voucher in Apogee plugin for sending your audio interface

Apogee Symphony I/O MKII Dante + Pro Tools HD Chassis with 8x8 Analog I/O + 8 Mic Pre Amps + 8x8 AES/OP I/O (Single slot populated)

Put the Sound of a Symphony on the Most Popular Audio Over IP Network

With the Symphony I/O Mk II Dante + Pro Tools HD option card and a simple Ethernet cable, Symphony I/O Mk II can be easily connected and shared across post production, broadcast, live sound or recording studio networks, unleashing legendary sound quality on the world’s most popular audio-over-IP solution. The Symphony I/O Mk II Dante option card also includes Pro Tools connectivity for integration of Pro Tools | HD systems into a Dante network environment. No other Dante-enabled audio interface offers this level of quality, flexibility and modularity.

The Symphony I/O Mk II Dante option card uses Audinate’s Brooklyn II module which features plug-and-play media networking for up to 32 bidirectional channels at 96kHz and 16 bidirectional channels up to 192k. The system can be configured with a number of custom options ranging from 8-32 analog I/O channels. Symphony I/O MK II Dante allows up to 32 channels with Pro Tools and redundant Dante connectivity to be fitted into a single two space rack device providing the smallest footprint available with this feature set.

Highlights

Ultimate Sound Quality – Features Apogee’s Flagship AD/DA conversion and optional mic preamps I/O Flexibility – Up to 32 channels of analog inputs and outputs per unit with optional 8 mic preamp module

Pro Tools HD Peripheral Port – Up to 32 bidirectional channels up to 192kHz. Route Symphony I/O module inputs or Dante Rx to Pro Tools inputs by blocks of 8 channels. Pro Tools HD outputs are routed to Dante Tx and I/O module outputs

Interoperable networking technology – Works seamlessly with any other Dante-powered device

Up to 32 bidirectional channels at 96kHz – 16 bi-directional channels at 192kHz

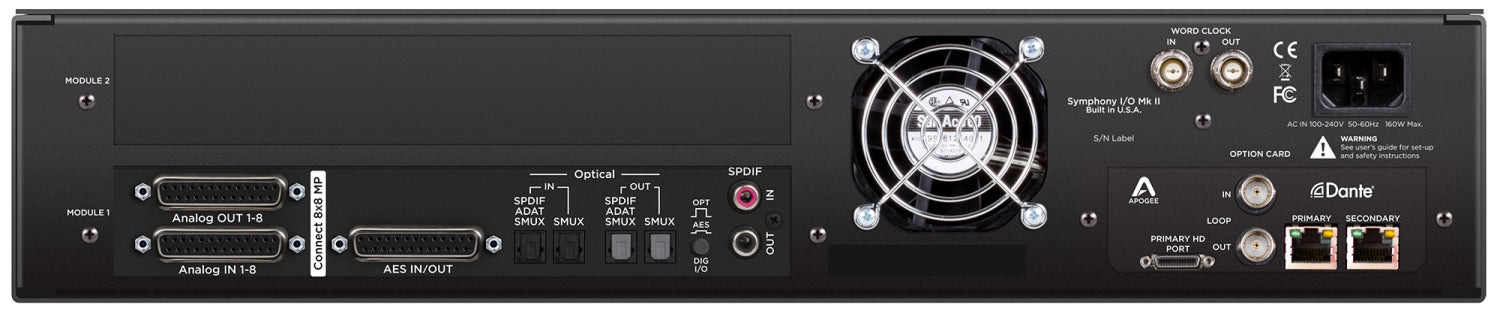

Inputs

  • Analog IN: 8 balanced inputs on 1 DSUB 25-pin connector
  • 8 microphone preamps with up to 72dB of gain
    • Featuring Advanced Stepped Gain Architecture™
  • *AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector
    • (192k single wide compatible)
  • *Optical IN: Supports ADAT, SMUX & S/PDIF
    • ADAT: 8 channels 44.1-48 kHz
    • SMUX: 8 channels 88.2-96 kHz
    • S/PDIF: 2 channels, up to 96 kHz
  • Coax IN: 2 channels of S/PDIF, up to 192 kHz

Outputs

  • Analog OUT: 8 balanced outputs on 1 DSUB 25-pin connector
  • *AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector
    • (192k single wide compatible)
  • *Optical OUT: Supports ADAT, SMUX & S/PDIF
    • ADAT: 8 channels 44.1-48 kHz
    • SMUX: 8 channels 88.2-96 kHz
    • S/PDIF: 2 channels, up to 96 kHz
  • Coax OUT: 2 channels of S/PDIF, up to 192 kHz

Connection: Dante + Pro Tools | HD

Performance: 44.1kHz – 192kHz

Compatibility: macOS or Windows

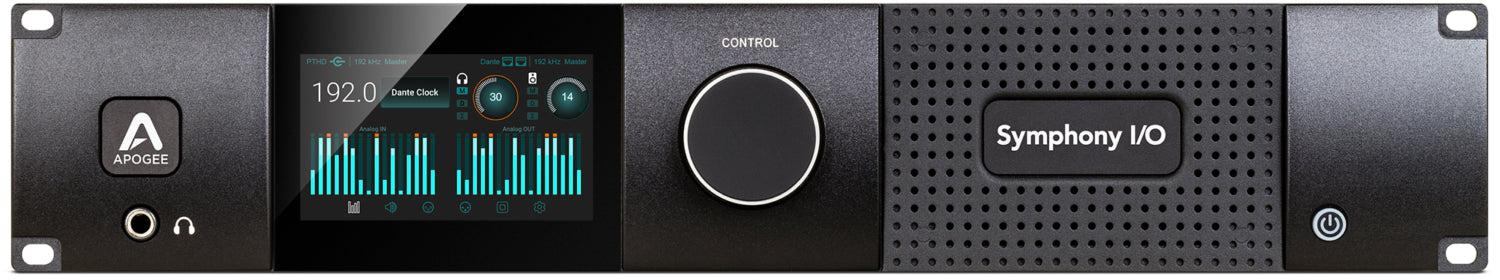

Control: Front panel touch screen
