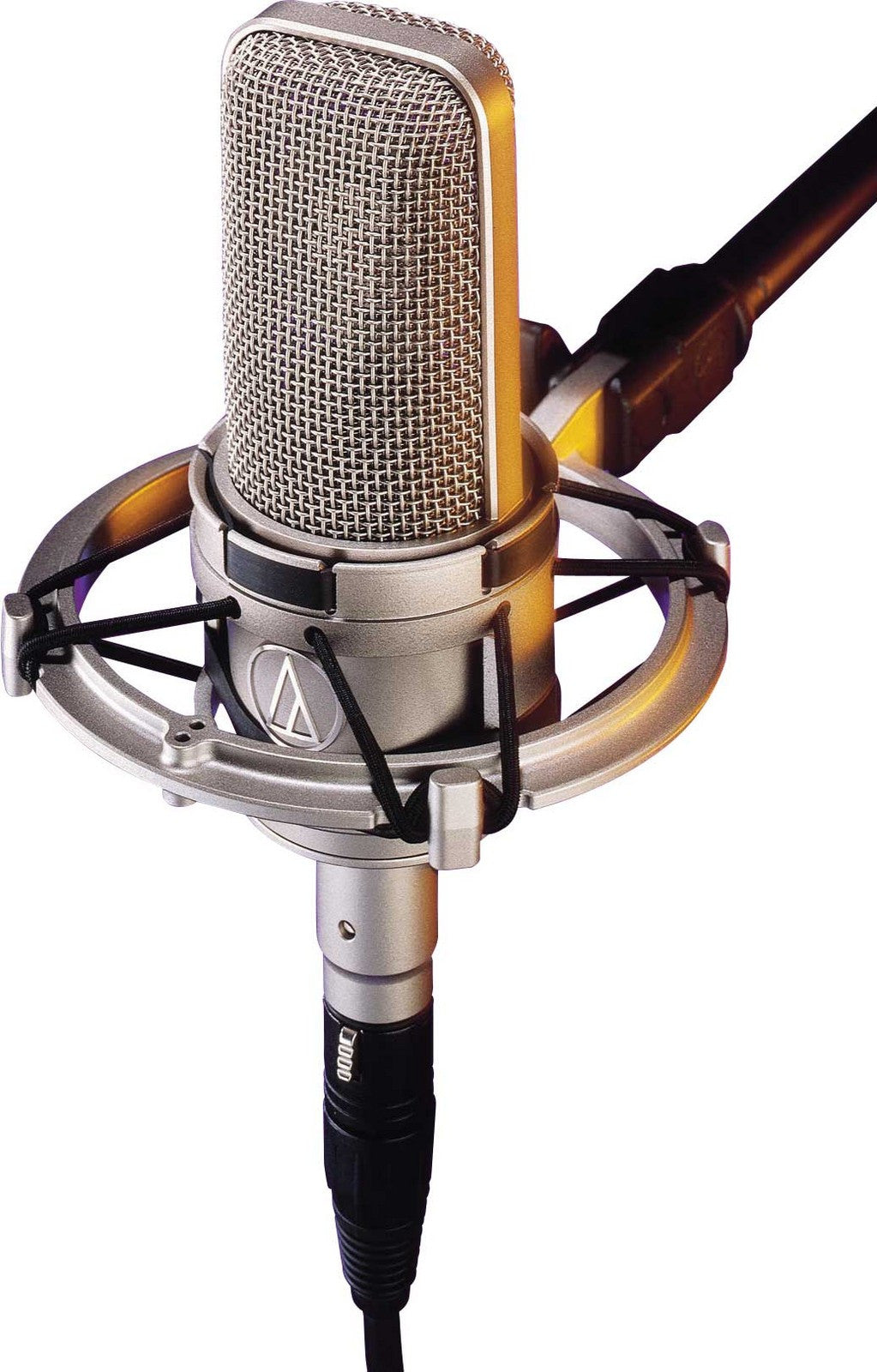

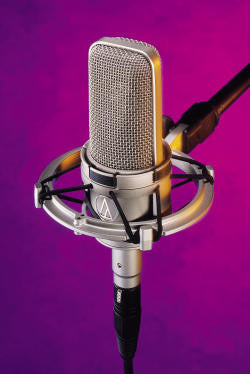

Audio Technica AT4047/SV

Sale price$ 749.00
SKU: AT4047/SV

Call us at 1-877-223-8858 or Ask a Question below

Audio Technica AT4047/SV

Model

Audio Technica AT4047/SV

Audio Technica AT4047/SV

  • Designed for critical studio, live sound and broadcast applications

  • Transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs

  • Exceptionally low self-noise, wide dynamic range and high SPL capability

  • Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone

  • Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity

  • Vintage silver-matte finish on microphone and shock mount

  • Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

  • State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards

  • Switchable 80 Hz hi-pass filter and 10 dB pad

  • Custom shock mount provides superior isolation


SPECIFICATIONS
ELEMENT Externally-polarized (DC bias) condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20-18,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY -35 dB (17.7 mV) dB re 1V at 1 Pa
IMPEDANCE 250 ohms
MAXIMUM INPUT SOUND LEVEL 149 dB SPL, 1 kHz at 1% T.H.D.;
159 dB SPL, with 10 dB pad (nominal)
NOISE 9 dB SPL
DYNAMIC RANGE (typical) 140 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 85 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 48V DC, 3.0 mA typical
SWITCHES Flat, roll-off;
10 dB pad (nominal)
WEIGHT 14.5 oz (410 g)
DIMENSIONS 6.69" (170.0 mm) long,
2.10" (53.4 mm) maximum body diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED AT8449/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
AUDIO-TECHNICA CASE STYLE R1
