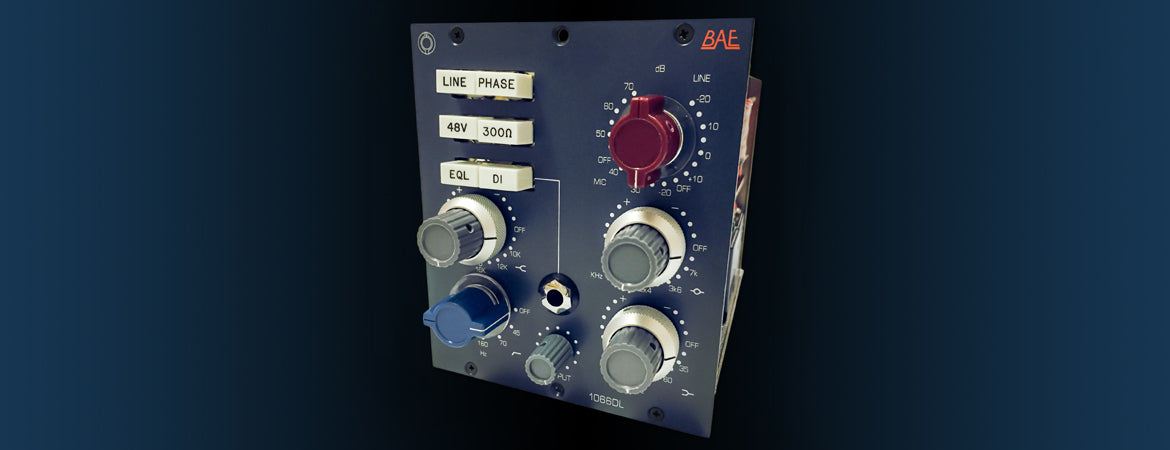

BAE 1066DL

1066DL Features

The new 1066DL is based on the classic 1066, which features the same mic-line pre-amplification stage as the 1073, but features different frequency selections in its EQ for a whole new sonic palette. The available frequencies on the 1066 are especially well suited to guitar applications because of its unique midrange.

The 1066DL is completely hand-wired using Carnhill (St. Ives) transformers and has the same mic-line pre-amp as the 1073, with the exception that the 1066DL adds a few different frequencies to your pallet.

This unit is popular among guitarists for having a unique mid-range. The original 1066 only had a 10k shelving but this unit offers additional frequencies: 10k Hz,12k Hz,16k Hz, 20k Hz and 24k Hz.

High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz &220Hz.
Mid Range: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
EQ Button: Switches the equaliser on or off
Phase Button: 180°
