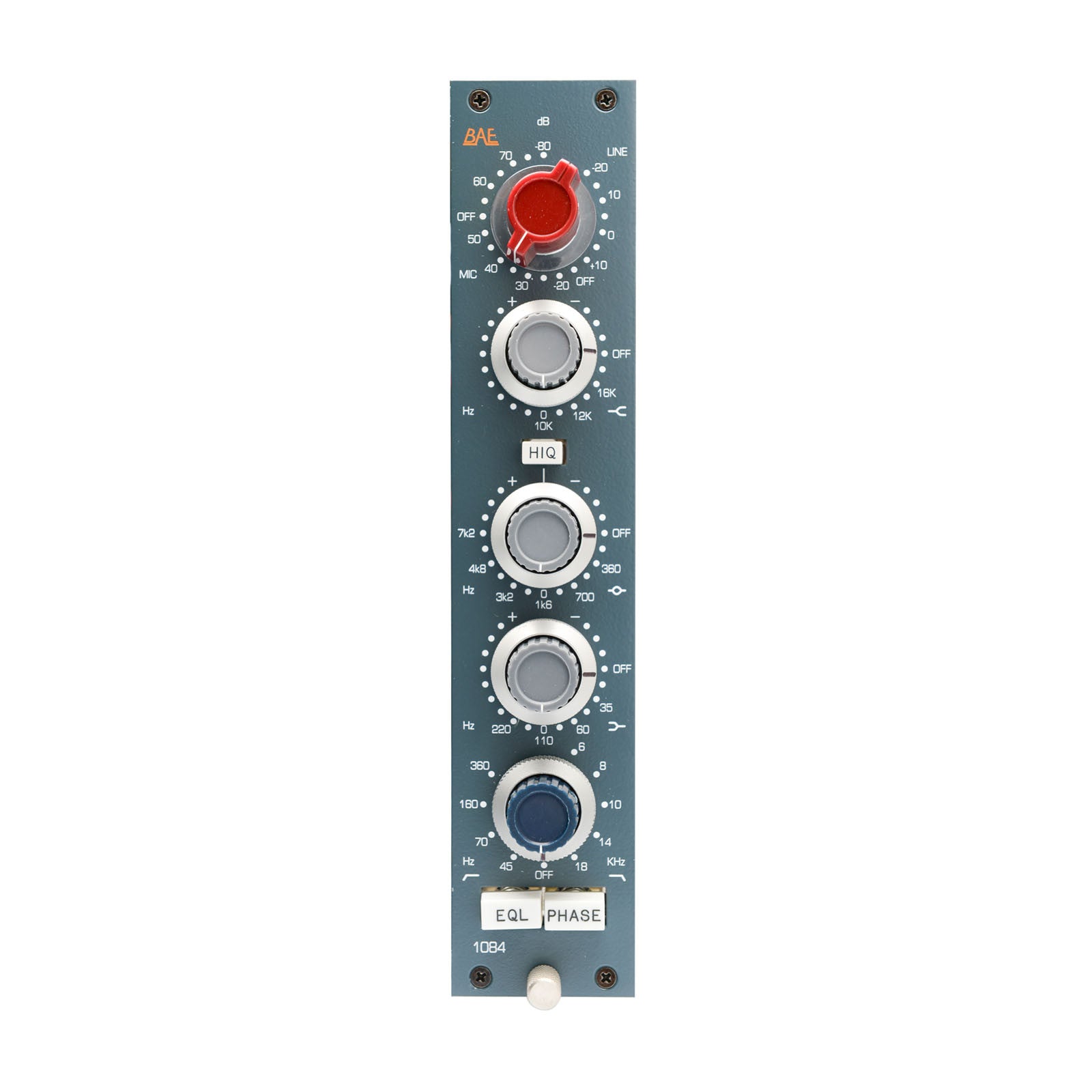

BAE 1084 Module

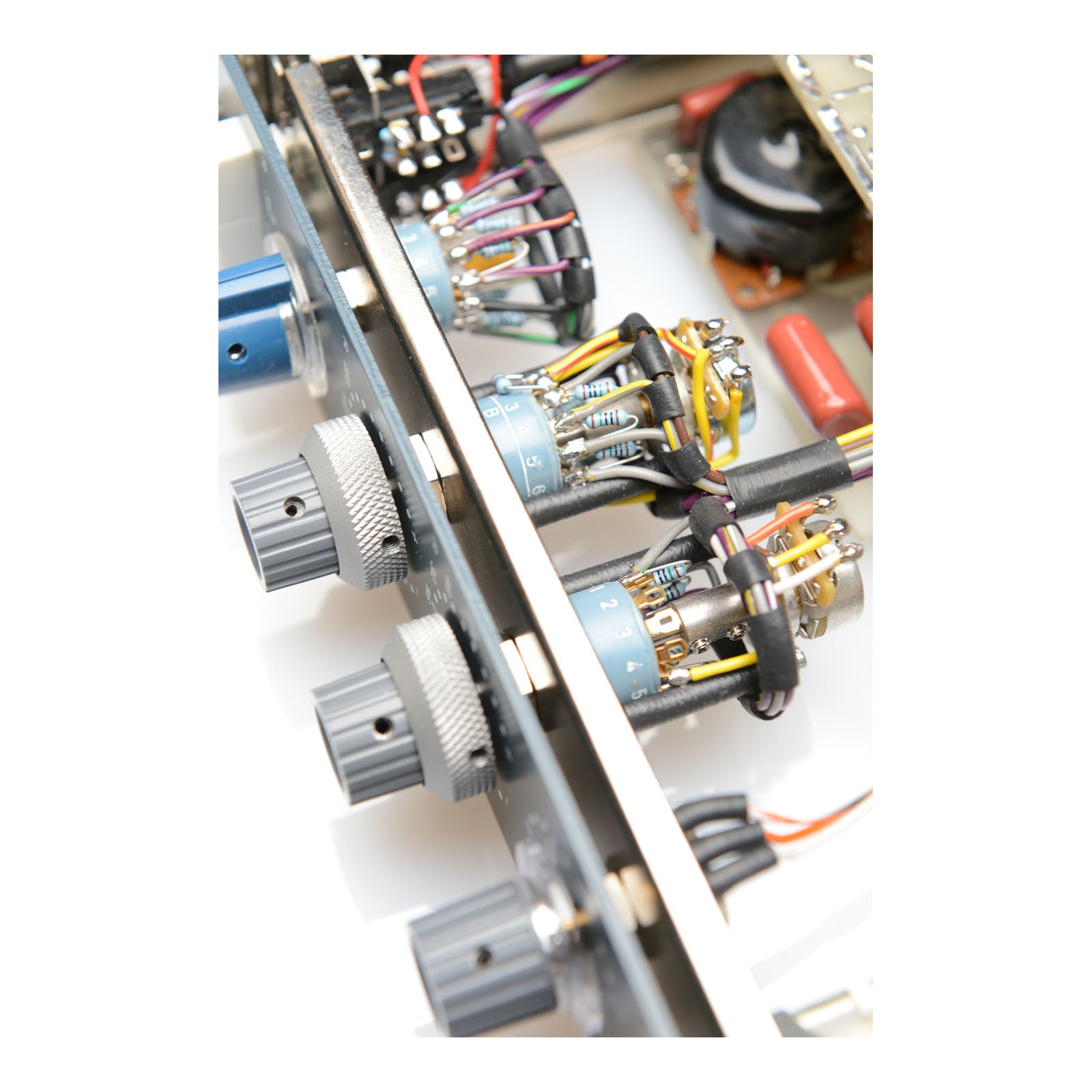

The BAE 1084 is as authentic as you can get to the original, featuring the same St Ives (Carnhill) transformers as the vintage modules, Elma switches and Canford wire.

The BAE 1084 looks identical to the original vintage module and will happily retrofit in vintage Neve 80 Series consoles because the entire product is engineered in exactly the same way as the originals: the same chassis construction, connectors, printed circuit board layouts, hand-wired looms, and circuitry.

• High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz and 16kHz
• Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
• Mid Range: +/-12dB or +/-18dB peaking with switchable 'High Q', selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz.
• High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz
• EQ Button: Switches the equaliser on or off
• Phase Button: 180°

Options Available:

• 1084 WPS 19" 1 RU rack with Power supply
• 1084 NOPS 19" 1 RU rack without Power supply
• Pair 1084 WPS 19" Pair rack with Power supply
