The 1073N retains the discrete, class-A topology made famous by the classic 1073®. Taking this technology forward, the 1073N uses a combination of modern production techniques, including our unique, in-house SMT. Still, crucially, the discrete audio path is constructed using through-hole methods, including mounting of the Marinair® transformers and class-A transistor-based amplifiers.
Inductor-Based EQ
Like the original 1073®, the 1073N uses the original, custom hand-wound inductors manufactured exclusively in the Uk. The 3-band inductor based EQ produces musical results across the frequency spectrum, the mid bell-curve band features ideal presence ranges for male and female vocals with +/-18dB of gain, with high and low shelving bands with +/-16dB gain.
Unique 1073® Gain Staging
The classic 5dB stepped Elma switch delivers accurate gain levels throughout the gain range. This unique layout means there is no need for a mic/line switch; the pot itself selects the preamp and input. Three distinct gain stages are provided by two independent transistor-based preamplifiers producing high gain for any DI, line input or microphone signal.
High Output - Harmonic Saturation
By combining the two preamps together, the 1073® preamp can deliver up to 80dB of microphone gain, bringing out the musical drive and harmonic saturation that the 1073 is famous for.
Phase Invert
The 180-degree phase flip feature is extremely useful in multi-microphone setups with multiple preamps, ideal for top and bottom snare micing.
Lo-Z Impedance
With settings of 1.2kΩ and 300Ω, the 1073LB impedance can be optimised for use with a wide range of modern or vintage microphones.

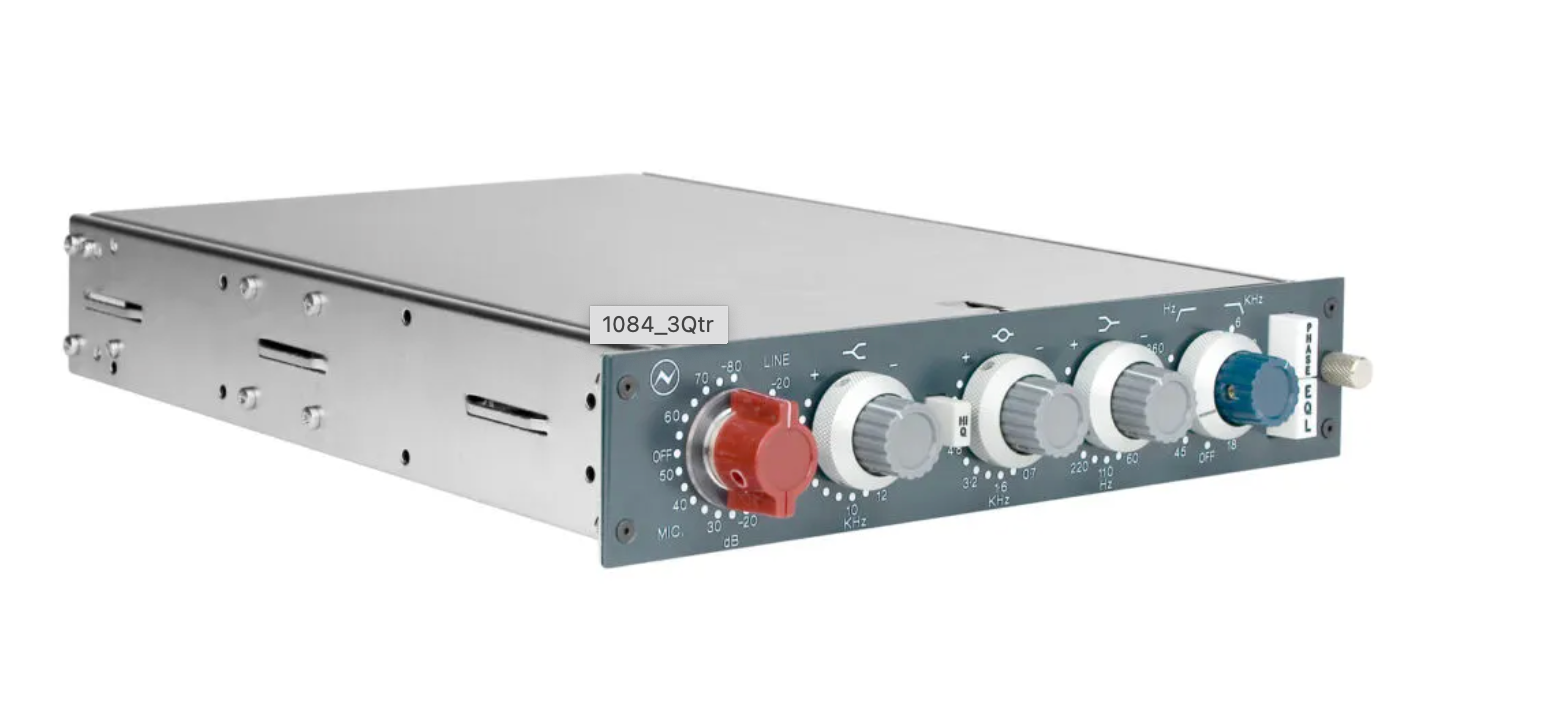

1084
Taking the Legendary 1073 Design to the Next Level.
While the 1084 builds on the same basic design of the world-famous 1073®, it offers a significantly different palette of frequency selections. The 1084 also features a “Q” switch, allowing the user to choose between two different Q types, either narrow or wide with respect to the parametric band.
Hand-built in our 60,000 square foot factory, based in Burnley UK. The 1084 follows the original 80 series module specification from the early days of Neve®.
The 1084 builds on the same basic design of the world-famous 1073®; however, it offers a significantly different palette of frequency selections. In addition, the 1084 features a “Q” switch, allowing the user to choose between two different Q types, either narrow or wide, concerning the parametric band.
The 1084’s improved EQ section builds upon the sonic foundation laid down by the 1073®, featuring selectable high shelf frequency points for greater control over the airband, Hi-Q mid-band setting for greater precision over the presence range and an added low pass filter to complement the 1073’s HPF.
The 1084 uses the same Marinair® specification transformers as the 1073® for its microphone & line inputs and on the balanced line output stage helping to produce classic Neve® module character.
The 1084 uses discrete class-A circuitry throughout, this design is entirely free from crossover distortion and produces a subtle warm & musical analogue hue to any line or microphone source.
The classic 5dB stepped Elma switch delivers accurate gain levels throughout the gain range. This unique layout means there is no need for a mic/line switch; the pot itself selects the preamp and input. Three distinct gain stages provided by two independent transistor-based preamplifiers provide gain for any DI, line input or microphone signal.
Combining the two preamps, the 1073® preamp found in the 1084, can deliver up to 80dB of microphone gain, bringing out the musical drive and harmonic saturation that gives the 1073 its fame.
The 180-degree phase flip feature is extremely useful in multi-microphone setups with multiple preamps, ideal for top and bottom snare micing.
The 1084 module has two impedance settings accessed via the rear-mounted Hi/Lo switch. With settings of 1.2kΩ and 300Ω, the impedance can be optimised for use with a wide range of modern or vintage microphones.
The 1084 module has two impedance settings accessed via the rear-mounted Hi/Lo switch. With settings of 1.2kΩ and 300Ω, the impedance can be optimised for use with a wide range of modern or vintage microphones.
