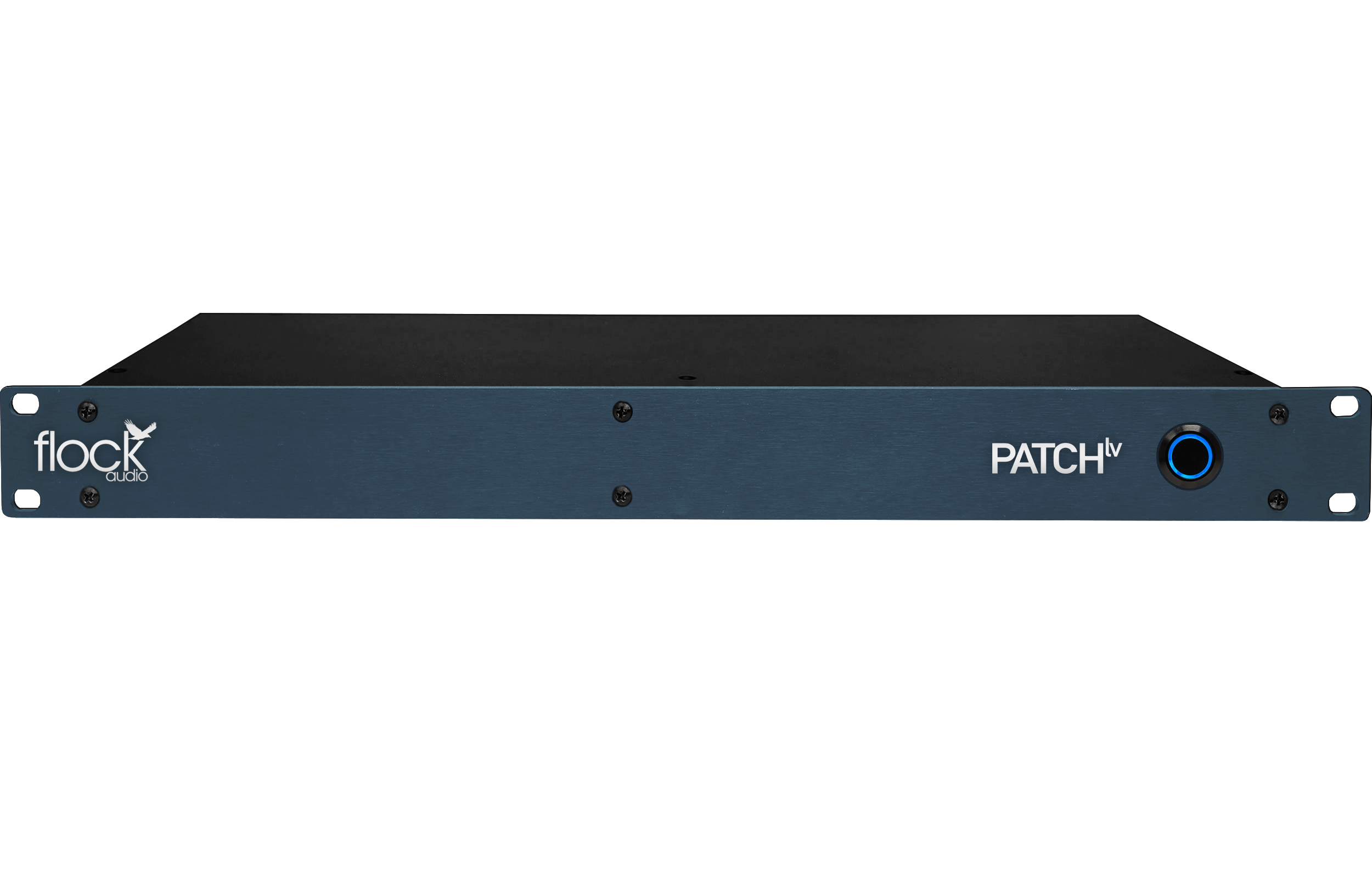

Flock Audio Patch LV-*Preorder* Est Q3-2025

PATCH LV revolutionizes the live sound industry as the first-ever digitally controlled analog routing solution. Featuring 24 channels of Flock Audio's award-winning, multi-patented analog routing technology along with 16 Channels of DANTE. PATCH LV empowers Live Sound Engineers to seamlessly integrate analog hardware into live applications. Delivering unparalleled performance with minimal AD/DA conversion and virtually no latency, it sets a new standard for live audio systems.

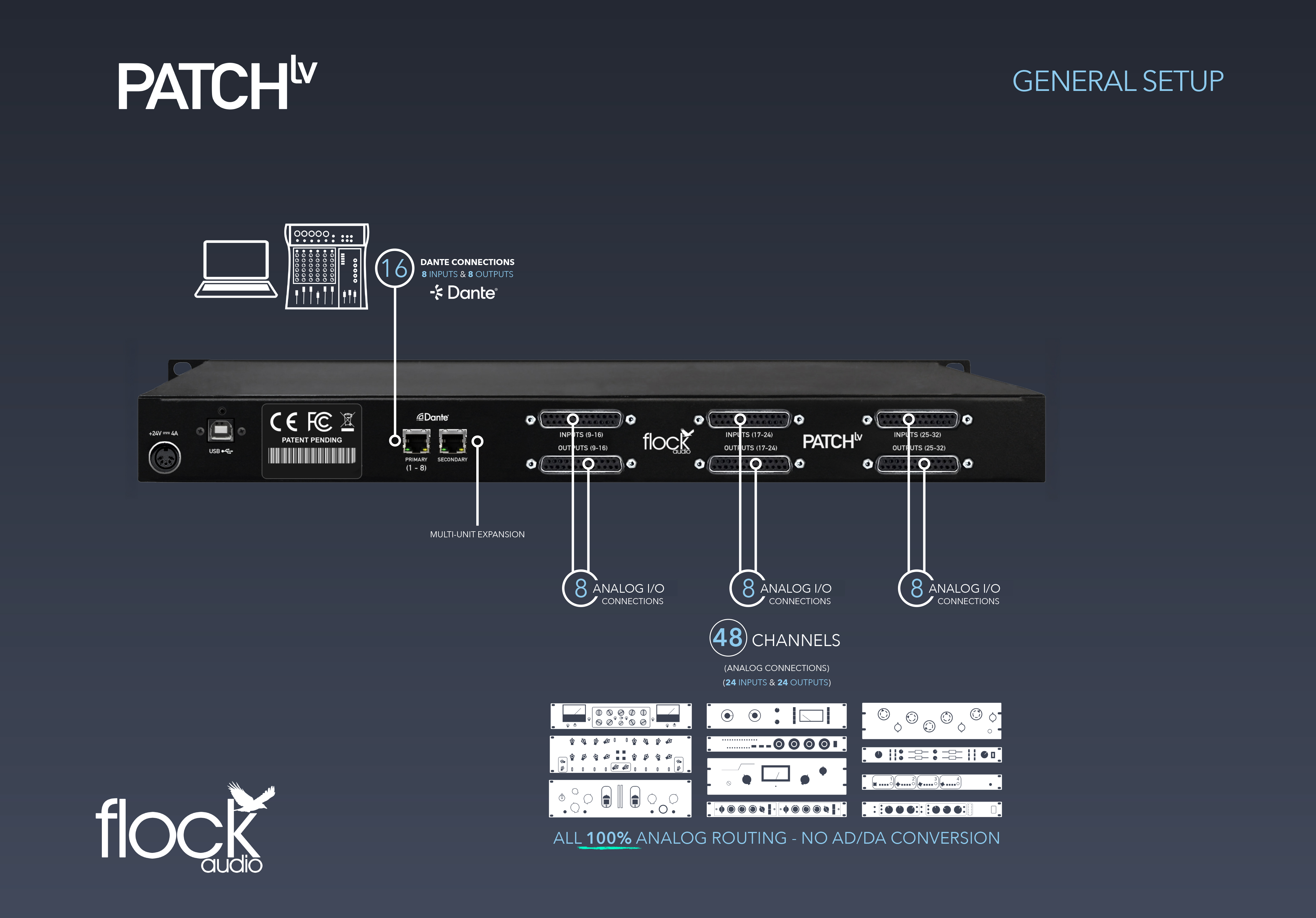

• 64 Point Connections (Total)
        (8 Inputs / 8 Outputs - DANTE Enabled Connections) 192 kHz / 32 Bit
        (24 Inputs / 24 Outputs - Fully Analog PATCH Series Routing)

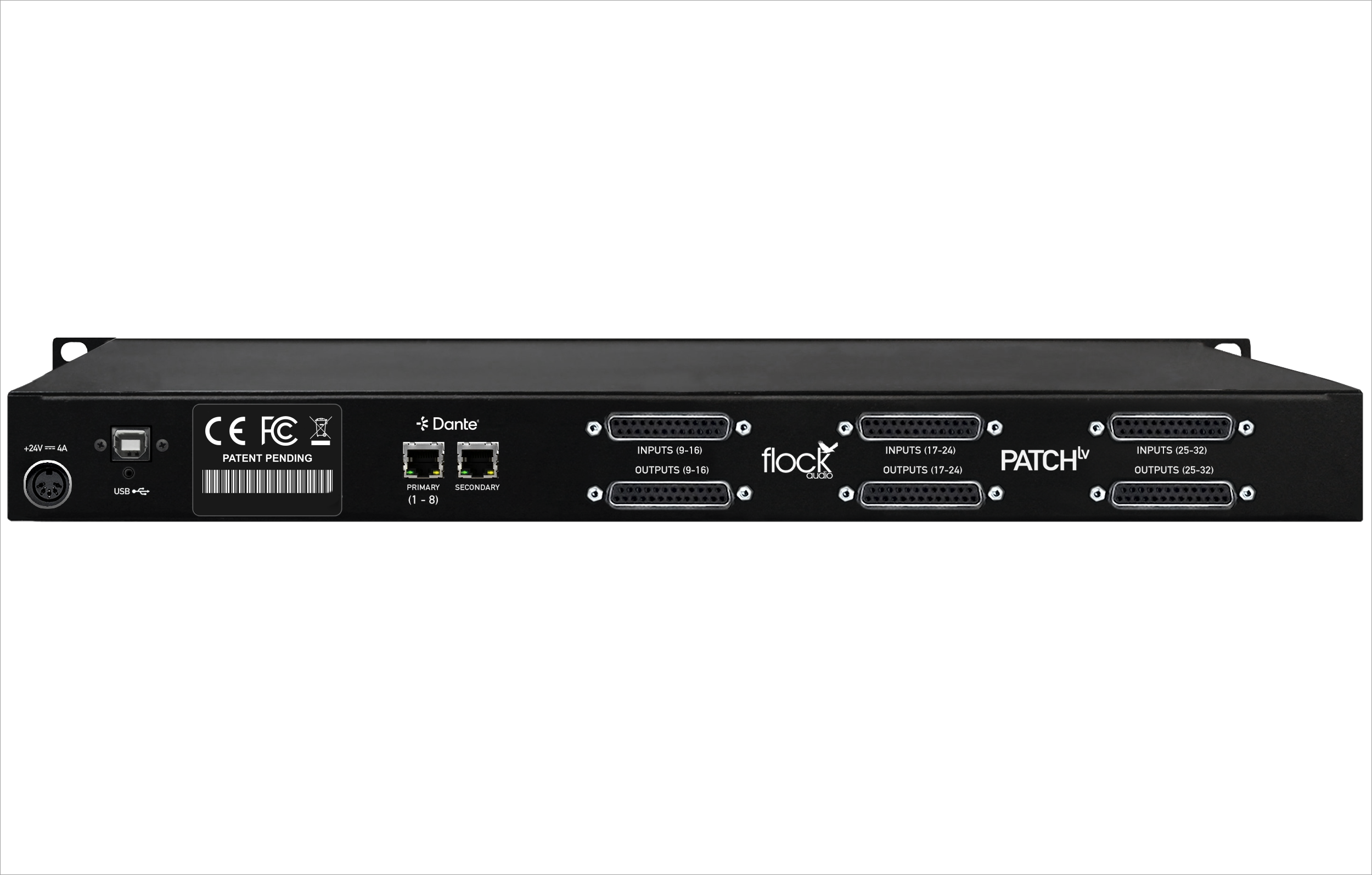

• DB-25/D-SUB Tascam Standard Pinout Format Connectors (24 Ins x 24 Outs)
• PATCH APP Routing Software (OSX & Windows)
• Create, Store & Recall Routings in Seconds
• Create Complex Multing Combinations w/ No Impedance Issues
• No AD/DA Conversion, 100% Transparent Analog Signal Path (24 Ins x 24 Outs)
• Patented Flock Audio Matrix Technology - 48 Channels - (24 Ins x 24 Outs)
• Multiple Unit Expansion via DANTE for Larger I/O Systems
• External 5Pin 24VDC Locking Power Supply w/ IEC Cable Included
• Threaded Locking USB Connector w/ 10 Ft. - USB 2.0 (USB-A to USB-B) - Cable Included
• Unit Dimensions: 1U - 1.75”(H) x 19” (L) x 8” (D) - 15 lbs
• Est. Shipping Q3 - 2025
