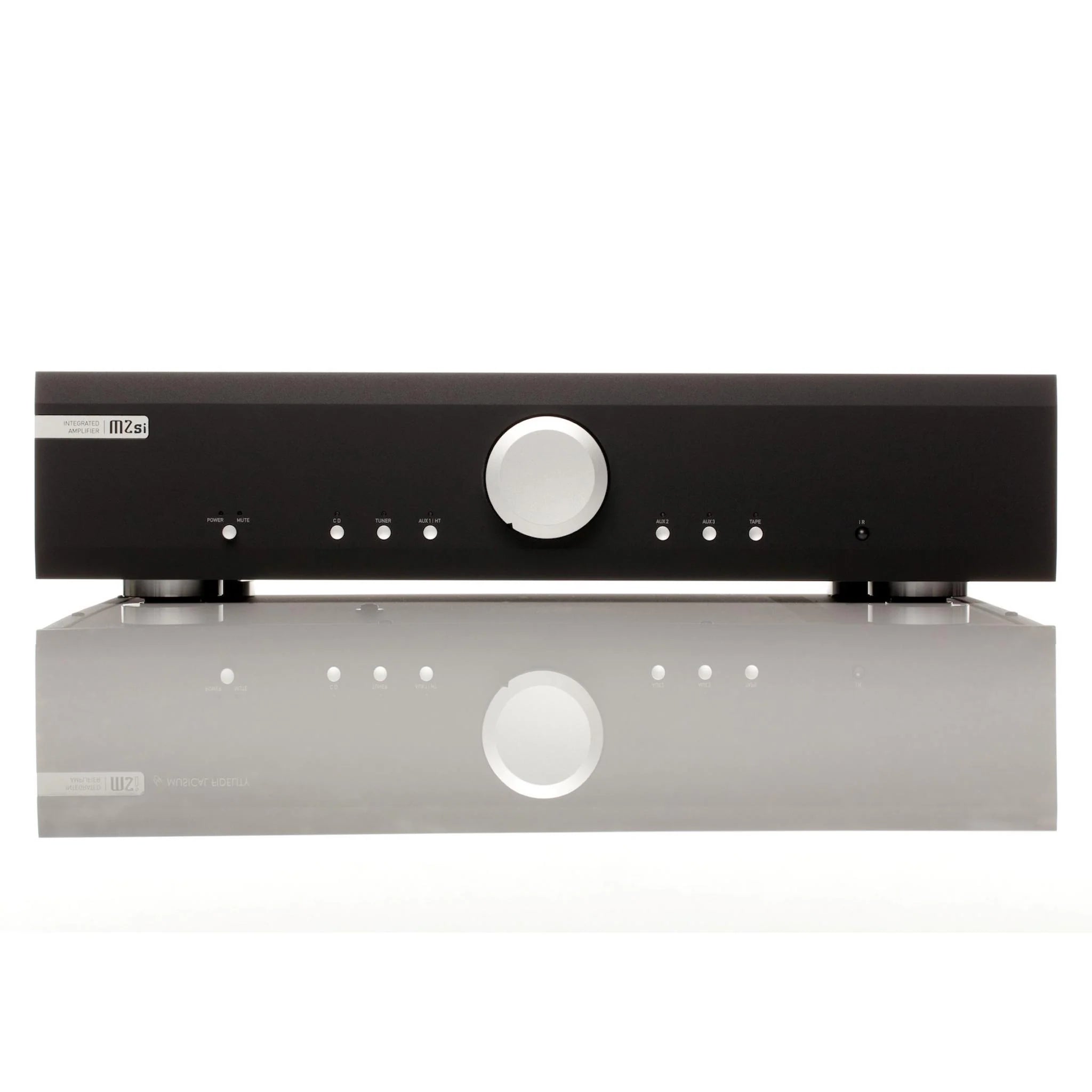

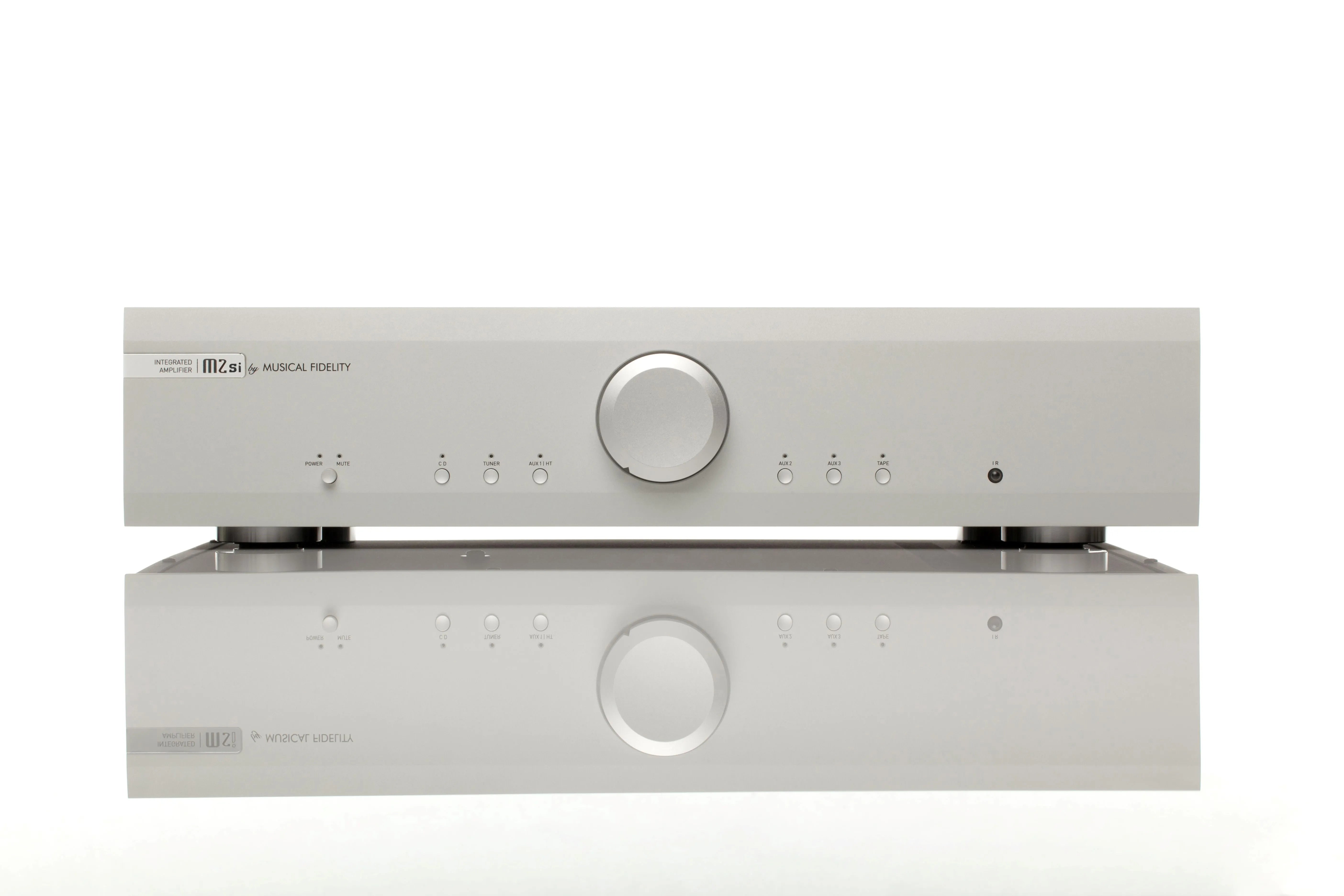

The M2si is a affordable and puristic audiophile integrated amp, solely designed for maximum musical fidelity.
The M2si integrated amplifier takes our premium-amp technology and applies it to a more affordable price point. Drawing upon the design philosophy and insights gleaned from our mighty TITAN flagship, along with the inclusion of high-end elements such as the robust metal controls, extruded aluminum front panel, and a chassis crafted entirely from metal, the M2si occupies an enviable position for discerning audiophiles seeking an unadulterated high-end amplifier.
Fully Discrete Power Amplifier
The M2si delivers 72 watts per channel into 8 ohms and 137 watts into 4 ohms. This means the M2si will drive a wide range of speakers, even power-hungry models. The fully discrete power amp, complemented by its dedicated power supply and generously proportioned toroidal transformer, guarantees reserves for proper peak delivery and a wide dynamic range. Power hungry and difficult speakers are driven with ease. Low impedance dips are managed gracefully and the judiciously rated output devices won‘t faulter under any load.
Precision Matched Preamp and PRE/POWER Configuration
The low noise preamp has its own, independent power supply. In effect, this means the M2si offers the performance benefits of a pre/power configuration with the compact convenience of a one-box design. For best low channel volume matching we employ a high quality Burr-Brown stepped attenuator delivering performance way above that of conventional potentiometer designs.
The Musical Fidelity Design-Philosophy
Further flexibility is provided by the M2si‘s carefully considered connectivity, which includes six line-level inputs and switchable home-theatre throughput. We have purposefully decided against a phono input or any digital high-frequency and DAC circuitry. The M2si remains committed to unadulterated sound quality over extraneous features. The introduction of digital high-frequency modules would be at odds with the nuanced performance of the analogue pre and power amplifiers, and the substantial transformer and power amp circuitry could introduce interference to delicate phono signals.
Redefining The Amplifier
With the M2si, our aim was to distill the expertise and design principles honed through our high-end amplifiers, creating an unbeatable package in this price point. Rather than burdening the analog amplifier‘s performance with superfluous features, we opted for a puristic and audiophile-oriented amplifier design that would elicit envy from owners of more costly, feature-loaded integrated amplifiers. With a true Musical Fidelity amplifier, you receive precisely what you desire. An affordable and puristic audiophile integrated amplifier for a lifetime, solely designed for the maximum of musical fidelity.
M2si In Brief
Amplifier
High-end circuitry inspired by TITAN
Fully discrete transistor based Class A/B power amp design
Drives power hungry speakers with ease and gracefully manages low impedance dips
72W/8 Ohm & 137W/4 Ohm output power
Extreme power reserves for proper peak power delivery and wide dynamic range
Pure sound quality instead of features:
- No digital circuitry: no digital high-frequency modules built in
- No phono stage: huge transformer and power amp circuitry will not interfere with low level phono signals
HT-input: bypassed preamp-stage allows connecting home-theater processors to use your M2si as ultimate L/R channel amp
Preamplifier
Low noise design for best THD and signal integrity at low as well as high levels
High quality Burr-Brown stepped attenuator for better channel matching than conventional potentiometer designs
Pre Out for bi-amping with M6sPRX or active subwoofer connection
Power Supply
Generously rated 280VA toroidal transformer
Independent power supplies for preamp and poweramp
Output devices, and power supply generously rated to provide peaks even into difficult to drive speakers
Mechanical Construction
Uncompromising metal work in typical Musical Fidelity tradtion
Heavy front panel milled from extruded aluminium profiles
Clean, stunning and indestructable metal exterior protects against electromagnetical interference
M2si - Specifications
Output
- Power: 72 Watts per channel into 8 Ohms; 137W into 4 ohms; 242W peaks into 2 ohms
- Voltage: 22 Volts RMS, 20Hz to 20 kHz; onset of clipping
- 62 Volts peak to peak
- Current: 25 Amps peak to peak
- Damping factor: 36
- Output devices: 1 pair per channel
Line input
- THD+N < 0.014 % typical, 20Hz to 20 kHz
- Signal / noise ratio > 96dB ‘A’-weighted
- Input impedance 40 k Ohms
- Frequency response +0, –0.1dB, 10Hz to 20 kHz

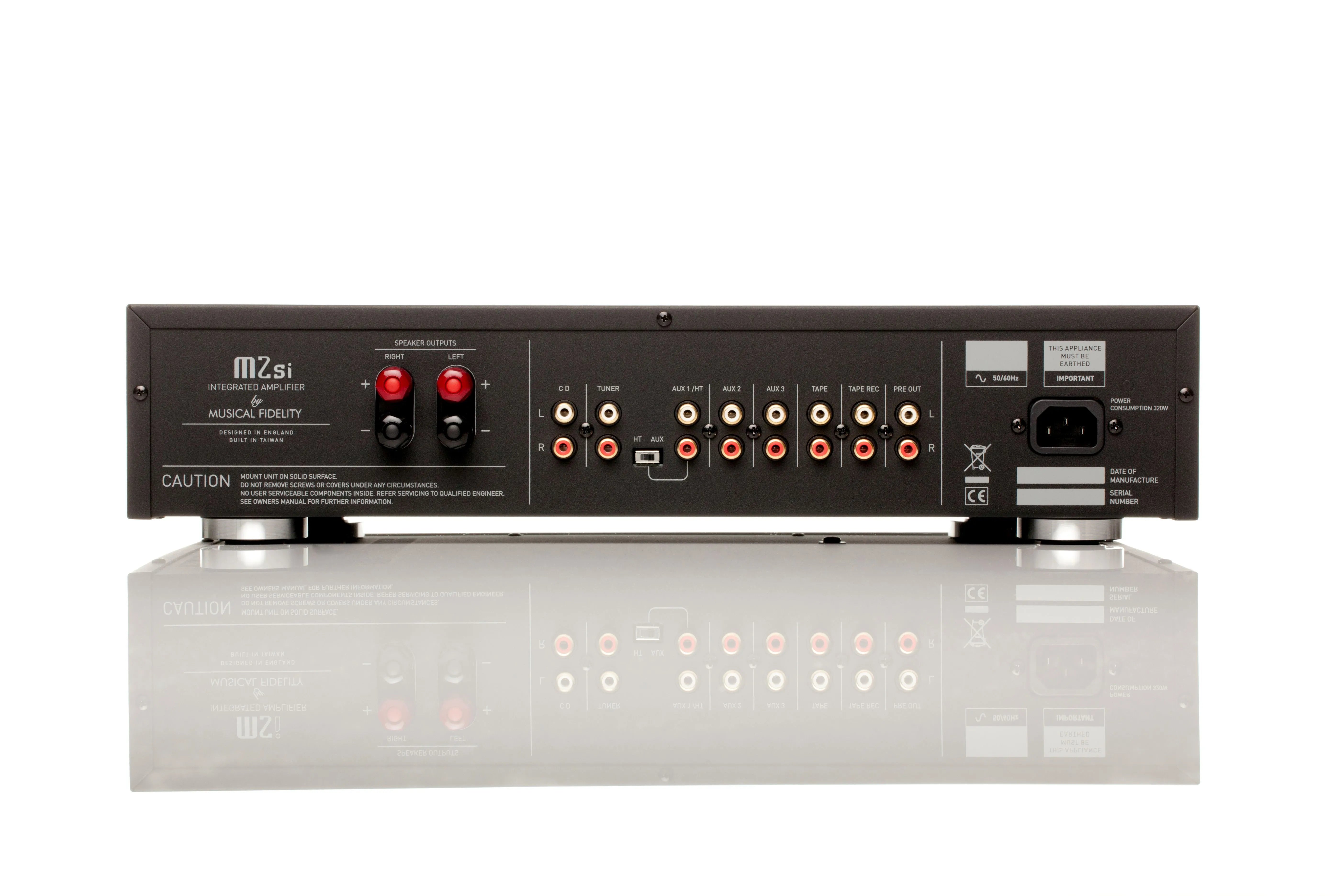

Connections
- Line level inputs 6 pairs line level RCA connectors
- Line level outputs 1 pair line level RCA connectors, constant level TAPE outputs
- 1 pair line level RCA connectors, preamp outputs for e.g. bi-amping
- Speaker outputs 2 pairs 4mm banana plug/binding posts
Power requirement
- Mains voltages 115/230VAC 50/60Hz (factory pre-set)
- 100VAC 50/60Hz (alternative)
- Consumption 320 Watts maximum
Weight
- Unit only, unboxed 9.2 kg (20¼ lbs)
- In shipping carton 13 kg (30⅔ lbs)
Dimensions
- Wide 440 mm (17⅓”)
- High, including feet 100 mm (4”)
- Deep (front to back) including terminals 400 mm (15¾”)
