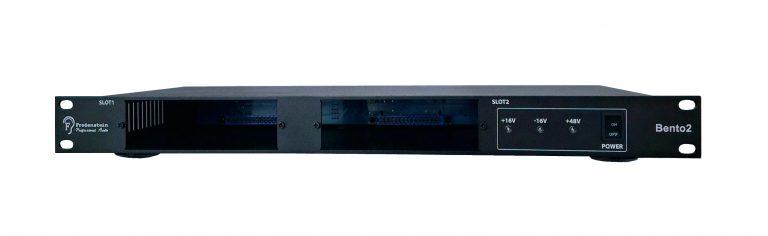

Fredenstein Bento 2

The Fredenstein Bento 2 is a high performance two module carrier for Fredenstein Series 600 modules or API-500 compatible plug-in cards. The unit can accept a maximum of 2 modules. The Bento 2 features several important upgrades compared with third party products:

Universal power supply: Mains voltages range from 90V AC to 240V AC, 50 to 60 Hz.

Increased output currents: +/-16V DC 0.9A and +48V DC 0.033A

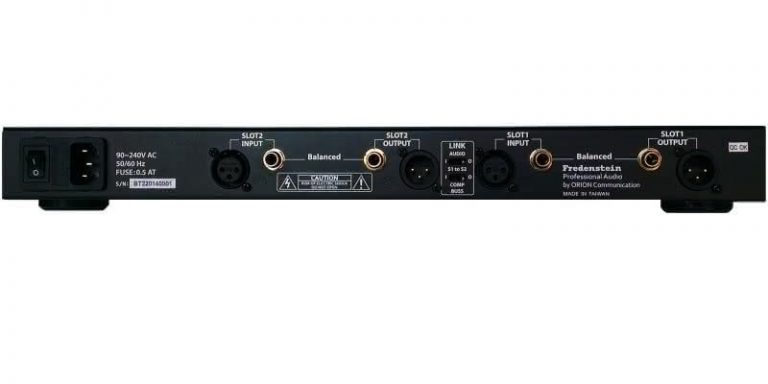

Additional TRS inputs and outputs, parallel to the XLR connectors.

Built-in Audio Routing: Slot 1 can be daisy-chained to slot 2 by simply flipping a switch on the back-panel.

Compressor buss linking: Compressor modules can be linked by engaging a switch on the back-panel as well.

Secondary power-switch and voltage indicators are on the front-panel.

Features & Specs

• 2-slot 500 Series rack
• Onboard audio routing
• Compressor bus linking
• Module Power: ±16V DC 0.9A, +48V DC 33mA
• Universal power supply accepts voltages from 90V to 240V AC, 50 to 60Hz
