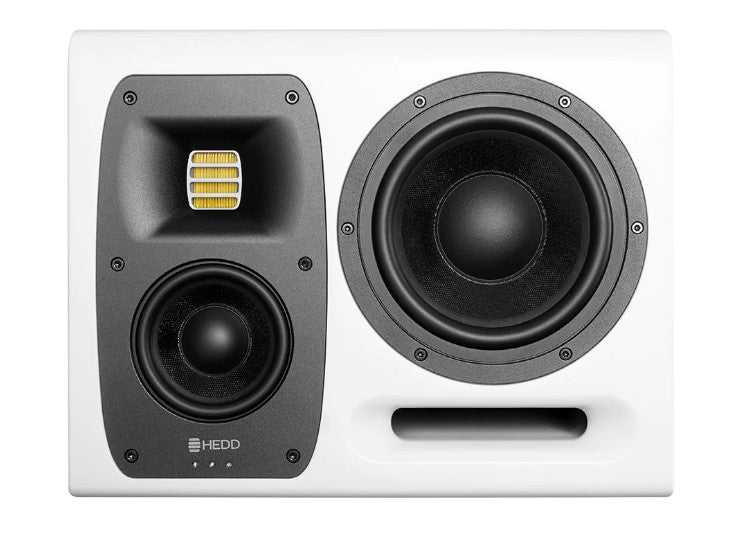

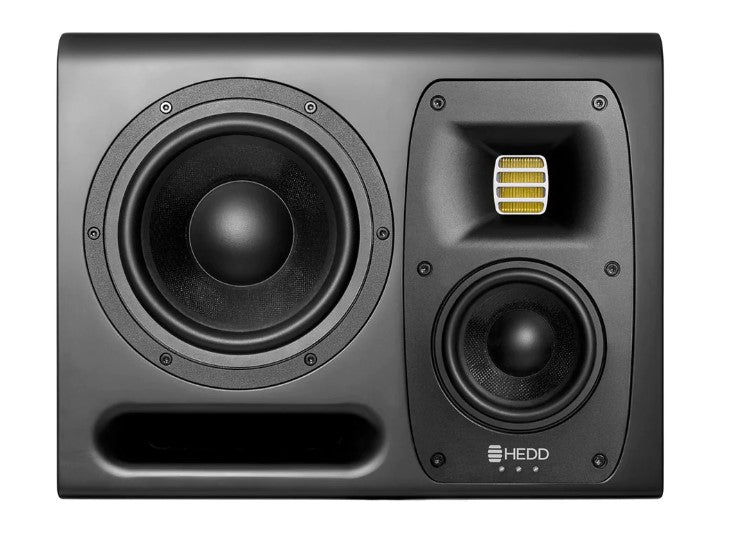

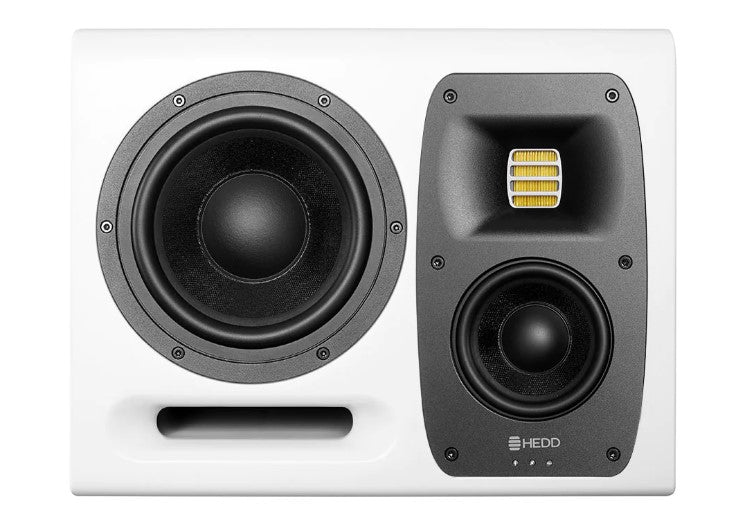

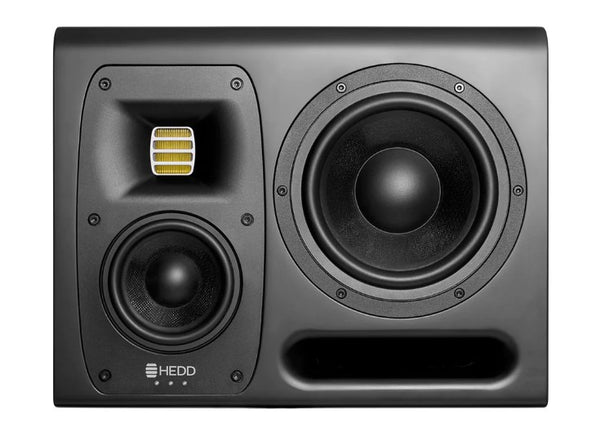

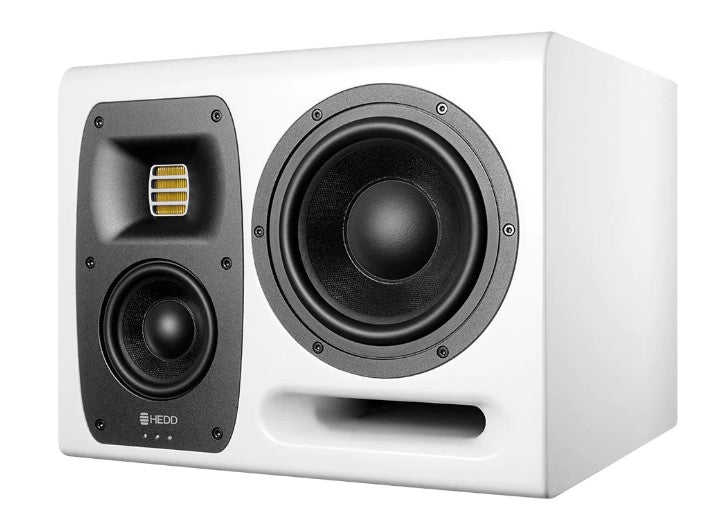

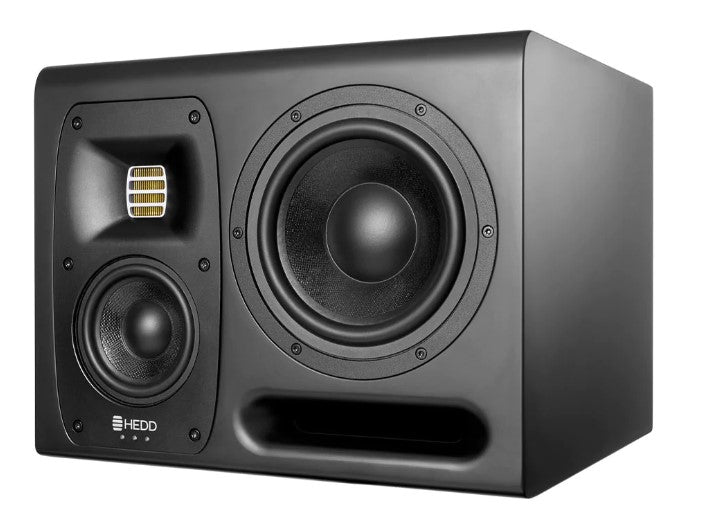

HEDD TYPE 20 MK2 Studio Monitor, 3-way, 3x300W with DSP

HEDD TYPE 20 MK2 Studio Monitor, 3-way, 3x300W with DSP

HEDD TYPE 20 MK2 Studio Monitor, 3-way, 3x300W with DSP

HEDD TYPE 20 MK2 Studio Monitor, 3-way, 3x300W with DSP

HEDD TYPE 20 MK2 Studio Monitor, 3-way, 3x300W with DSP

HEDD TYPE 20 MK2 Studio Monitor, 3-way, 3x300W with DSP

HEDD TYPE 20 MK2 Studio Monitor, 3-way, 3x300W with DSP

$ 2,399.00

SKU: HEDDTYPE20MK2L-Black

Color:

Black

Layout:

Left

Variant

QTY:

Apply for Financing PADvantage

Call us at 1-877-223-8858 or Ask a Question below

HEDD TYPE 20 MK2 Studio Monitor, 3-way, 3x300W with DSP

HEDD HEDD TYPE 20 MK2 Studio Monitor, 3-way, 3x300W with DSP

$ 2,399.00

HEDD TYPE 20 MK2 Studio Monitor, 3-way, 3x300W with DSP

Model

HEDD TYPE 20 MK2 Studio Monitor, 3-way, 3x300W with DSP

Combine openness, punch, a gloriously honest midrange clarity, and a jaw-dropping low end performance and you have the Type 20 monitor. The perfect all-rounder. The perfect companion for every audio endeavor. From producing bass-hungry beats to mastering the most sophisticated Jazz records: This 3-way monitor will unveil new layers in your music and transport your engineering skills to the next level.

FEATURES

7” woofer
Dedicated 4” midrange driver
High definition HEDD Air Motion Transformer
Powerful SHARC-DSP and onboard LineariserR flatten speaker phase and create fascinating stereo image and depth
Closed or Ported functionality for two distinct sound experiences: accurate and detailed (closed) or energetic and bassy (ported)
Complete linear phase Satellite-Subwoofer setup with BASS 12 subwoofers
Desktop and shelving filters
Bass-extension mode
Stepped aluminum pot controls
3 year warranty when you register your product with us

SPECIFICATIONS

Main Features
HEDD Lineariser®, CoP, GDC, LFE, Desk and Shelf Filters
Dimensions
280 x 358 x 338 mm
Weight
15.4 kg per unit
DSP Integration
Custom high-resolution 96 kHz / 32 Bit AD / DA converter
Drivers
3-Way: Proprietary 7" and 4" Honeycomb Woofers, HEDD AMT Tweeter
Power
3x300 W ICEpower amplification (85-264 V)
Crossovers
250 Hz / 3.200 Hz
Frequency Range
32 Hz - 40 kHz (LFE: 26 Hz - 40 kHz)
Maximum SPL
SPL 120 dB SPL (sound pressure level) per pair at 1m
Inputs
Analog (XLR / 22 kΩ) and Digital 2ch (AES / XLR)
Output
Digital AES pass-through via XLR
