JOCAVI ATP PROPACK Room Pack

Sale price$ 12,060.00
SKU: ATPPROPACK

Call us at 1-877-223-8858 or Ask a Question below

JOCAVI ATP PROPACK Room Pack

Model

JOCAVI ATP PROPACK Room Pack

The ATP PROPACK complements the ATP COREPACK by adding an even higher control level to the room.

Similar to the BASISPACK and the COREPACK, the PROPACK treats the first reflections coming from the speakers that occur on the side walls and ceilings through the use of 24 ATP SNOWSORB absorption panels that improve sound definition and the sound field image at the mixing position. By using these panels, we are reducing the interference between the direct sound and the specular reflections, controlling the comb-filter effects and the reverberation time in the room. The back wall is treated with 6 ATP CORALREEF diffusion panels to control specular reflections generated from this surface, thus improving the sense of spaciousness within the room providing clarity to the mid-high frequencies.

The main difference is that PROPACK is more effective for larger rooms. Including 8 ATP BASSKEEPER ANGLE low frequency absorbent panels for the corners, as well as a whopping 10 ATP BASSKEEPER WALL low frequency absorbent panels for the walls, it offers higher control power of stationary low-frequencies. The ATP BASSKEEPER ANGLE and WALL also help improve the control of the speaker boundary interference response and the modal emphasis, producing a good balance between the reverberation time through the frequency range. This amount of low frequency absorption will definitely provide you with the best balance you can possibly achieve with an acoustic treatment pack.

PROPACK is a very practical assembly kit for Control-Rooms and Music Rooms, provided with assembly instructions required to install all acoustic modules.

This pack can be easily adapted by adding modules depending on the size of your room. Contact us for more information.

Features

  • 64% Reverberation time reduction
  • 10% Excellent RT balance time/frequency
  • Ideal for control rooms
  • Optimized for rooms with areas between 25 m2 and 35 m2 (279 ft2 and 375 ft2)
  • Ideal for minimum height of 2.4 m (95")
  • Easily customizable for other room sizes
  • Multiple color combinations available
  • Very cost effective acoustic balance control
  • Mounting instructions/accessories included*

INCLUDED PRODUCTS

  • 24 x Snowsorb Absorbent Panel
  • 6 x Coralreef Diffuser Panel

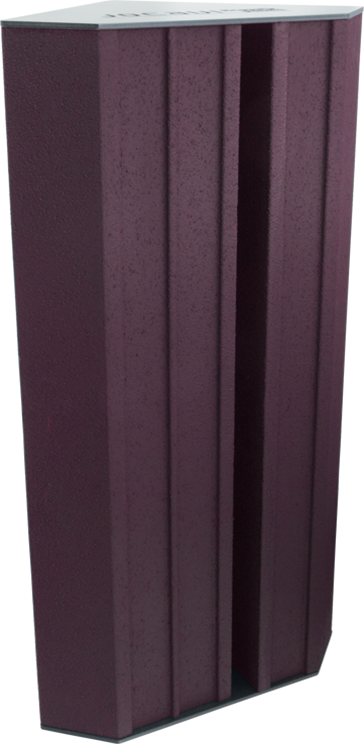

  • 8 x Basskeeper Angle Basstrap

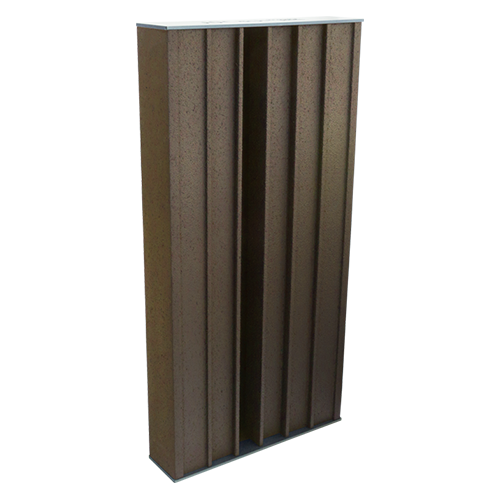

  • 10 x Basskeeper Wall Basstrap

PACKAGING

PRODUCT SIZE PANELS BOXES BOX SIZE BOX WEIGHT ABSORBER DIFFUSOR TUNED AB.
ATP SNOWSORB 60x60cm
(23.6" x 23.6")
24 6 65x65x35cm
(25.6" x 25.6" x 13.8")
3kg
(6lbs 10oz)
Yes
ATP CORALREEF 60x60cm
(23.6" x 23.6")
6 2 65x65x35cm
(25.6" x 25.6" x 13.8")
6.3kg
(13lbs 15oz)
Yes
ATP BASSKEEPER ANGLE 120x44X44cm
(47.2" x 17.3" x 17.3")
8 4 65x65x120cm
(25.6" x 25.6" x 47.2")
8.2kg
(18lbs 2oz)
Yes
ATP BASSKEEPER WALL 120x60cm
(47.2" x 23.6")
10 5 65x65x120cm
(25.6" x 25.6" x 47.2")
7.2kg
(15lbs 14oz)
Yes
