JOCAVI IN SHOCK AB CEILING Industrial Insulation

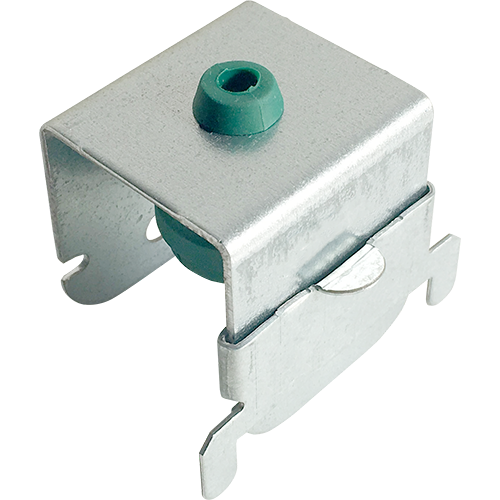

SHOCK AB is a wall and ceiling vibration absorber, a composite piece consisting of a molded metal frame and a damping rubber component, which allows to support the weight of the wall or ceiling, thereby minimizing physical contact to the support structure and forming the sound insulation layer between the sound wave irradiation and the original base surface, wall or ceiling.

The SHOCK AB is provided in two models; one for the ceiling and one for the wall.

SHOCK AB Ceiling is an effective way to cut off the structure-borne sound transmission of the suspended ceiling and the original building base.

SHOCK AB Wall is suitable for installing and fixing the wall reinforced sound insulation layer structure.

The quantity of pieces to be used on each application depends on the weight of the insulation layer that will be applied, so it is recommended make the calculation, bearing in mind that it is considered an operating range of 30kg to 50kg per piece (fixation point).

Features

• Dramatically improves the performance of your soundproofing layer
• Minimise physical and structure sound transmission
• Operating range of 30Kg to 50Kg per piece. Application: using screws
• Can be applied in standard steel profiles used in the construction with plasterboard
• Quick and easy installation with Safety System (SHAWC model)
• Packaging: 20 pieces

Tech drawings
