JOCAVI ATP STRIPESORB Absorbent Panel

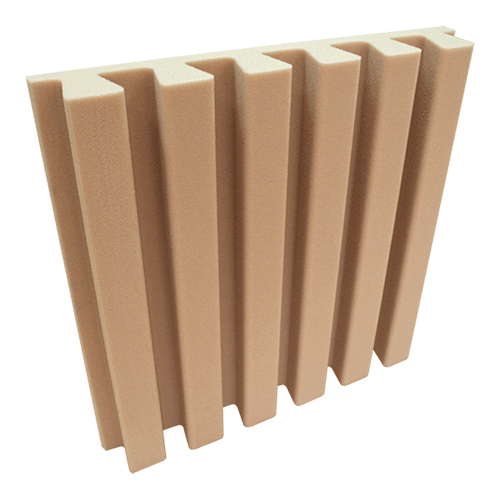

The STRIPESORB is a stripe-shaped acoustic treatment absorber made of selfextinguishing acoustic foam. Its shape looks similar to parallel blades with angular spaces between them. It was designed in order to have small longitudinal absorption surfaces separated by small angled incisions; its shape maximizes the area that is exposed to the sound waves for better absorption.

There are two different shapes, STRIPESORB, which is flat, and STRIPESORB ARC, which describes a concave and convex arc that wave uniformly, these can be combined to offer different decorative alternatives.

It is meant to achieve a great absorption for the budget-conscious acoustic projects. Installed by gluing it directly to the existing surface with our recommended adhesives.

The STRIPESORB is recommended for project spaces, large room environments, common workspaces, music studios, listening rooms, as well as small booths. This model can be applied on large continuous areas when mandatory and stronger acoustic absorption is required, by solving excessive reverberation problems as well as flutter echo problems.

The STRIPESORB is a stripe-shaped acoustic treatment absorber made of selfextinguishing acoustic foam. Its shape looks similar to parallel blades with angular spaces between them. It was designed in order to have small longitudinal absorption surfaces separated by small angled incisions; its shape maximizes the area that is exposed to the sound waves for better absorption.

There are two different shapes, STRIPESORB, which is flat, and STRIPESORB ARC, which describes a concave and convex arc that wave uniformly, these can be combined to offer different decorative alternatives.

It is meant to achieve a great absorption for the budget-conscious acoustic projects. Installed by gluing it directly to the existing surface with our recommended adhesives.

The STRIPESORB is recommended for project spaces, large room environments, common workspaces, music studios, listening rooms, as well as small booths. This model can be applied on large continuous areas when mandatory and stronger acoustic absorption is required, by solving excessive reverberation problems as well as flutter echo problems.

Features

• Raw material: Melamine Foam or Regular Acoustic Foam
• NRC: 0.81/m² [>250Hz;<10KHz]
• MELAMINE FOAM - Flame resistance: Euroclass B-s1, d0 (similar to old M1 France, Germany B1,GB class1, USA V0/HF1)
• ACOUSTIC FOAM - Flame resistance: Euroclass B-s3, d1 (similar to old M1)
• Standard Dimensions: 60x60x11cm and 120x60x11cm, STS120A and STS060A
• Shape and design recommended for continuous surface treatment
• Sold in pairs (STS120A and STS060A models)
• Very easy to install

Tech drawings and Dimensions

Absorption Coefficients

Color options
