JOCAVI TUBABSORBER Basstrap
JOCAVI TUBABSORBER Basstrap
JOCAVI TUBABSORBER Basstrap

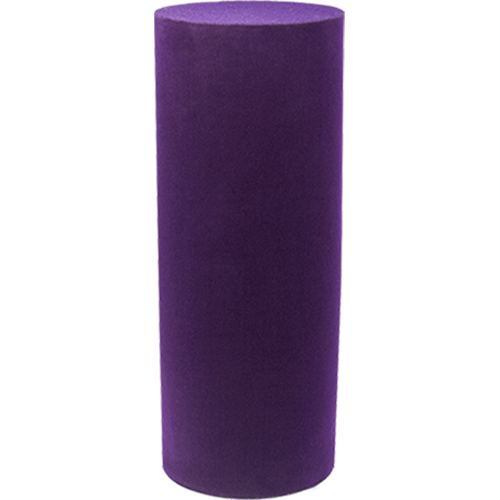

The Tubabsorber and Tubabsorber SY are the most important absorbing elements of medium/low frequencies in our catalog.
They were created to take most advantage in areas of high acoustic pressure that is normally generated in the corners of rooms.
Due to the way they work each model can be mounted on the floor or suspended on ceilings. When they are installed on the floor they are easy to assemble and to adjust in order to optimise the results.
Due to its smallest resonance chamber the Tubabsorber SY is tuned to a higher frequency, 250Hz, while the Tubabsorber is tuned slightly below 200Hz.
The materials used in its manufacture are very light and highly efficient what gives to these models versatility, efficiency and ease of assembly.
Features
- Uses 60% of recycled materials
- Tuned to 200Hz
- Average absorption: 0.86/m2[>50Hz;<250Hz]
- Fire-resistance: Euroclass B (similar to old M1)
- 100% recyclable
- Installation: accessories included
Tech drawings and Dimensions
| Model | Height | Width | Depth | Weight |
| TUB103 | 103 cm (40.6") | 40 cm (15.7") | -- | 8.2 kg (18.1 lbs) |
Absorption Coefficients
