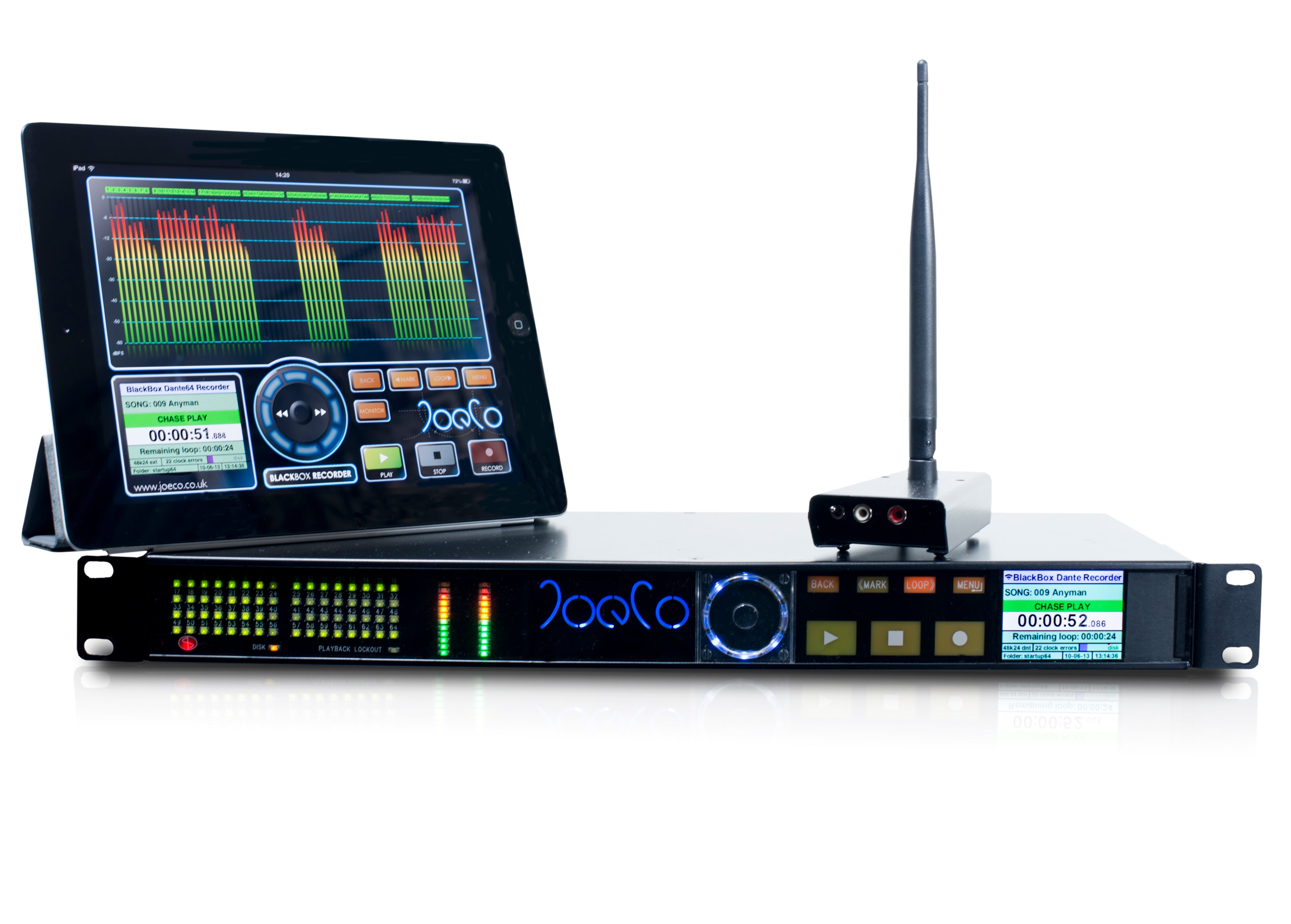

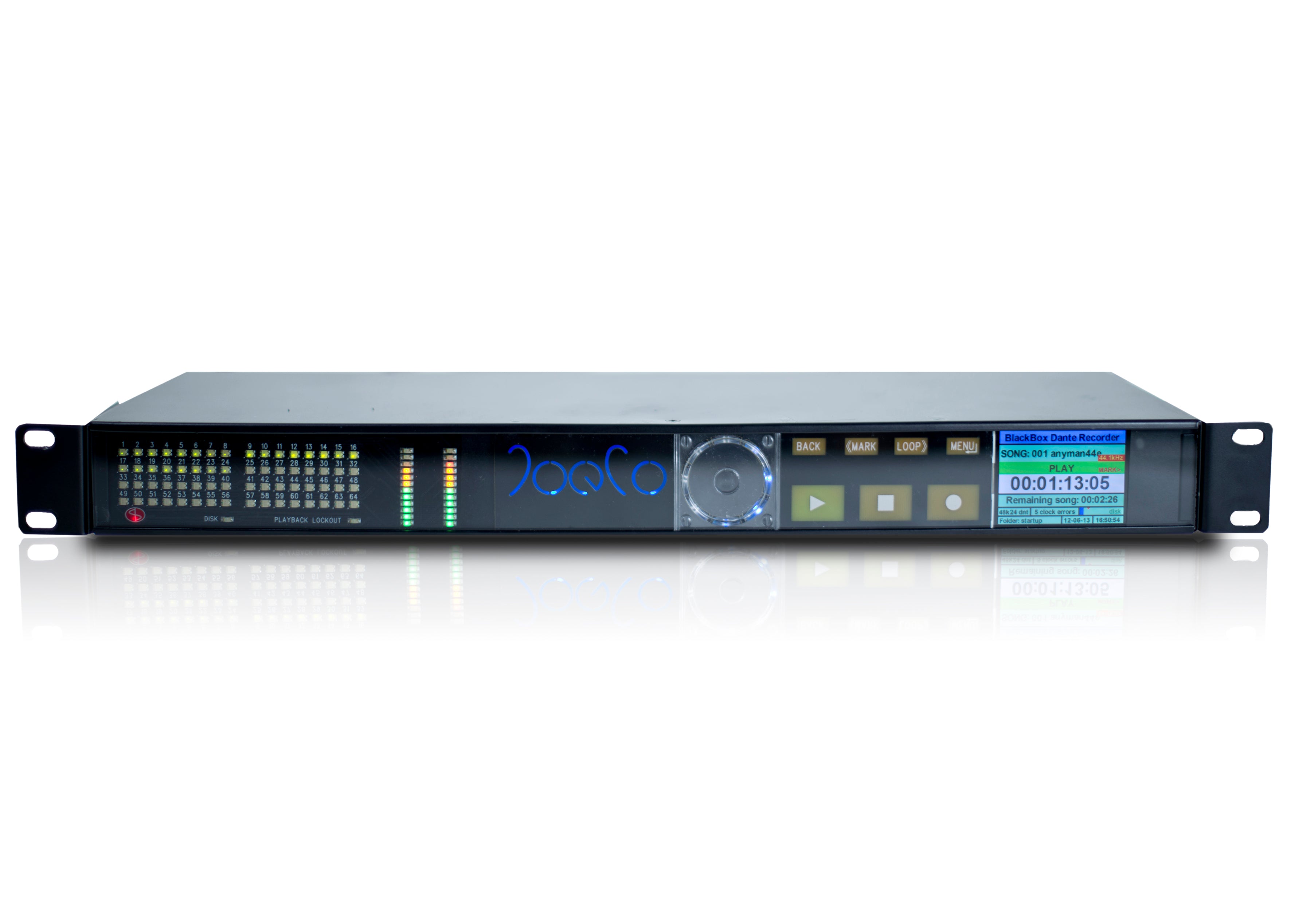

Joeco BBR64-DANTE - BLACKBOX Recorder Hardware

As Dante™ becomes the professional’s choice for AV networking, so the BLACKBOX Recorder delivers a trusted multi-track Dante recorder solution upon which professionals can rely – the BLACKBOX BBR64-DANTE.

With the BBR64-DANTE, users can record and replay up to 64 channels of audio data from a Dante™ network, recording at 44.1kHz and 48kHz directly to Broadcast WAV files on an external USB2 drive. (Higher sample rate recording is also accommodated at a reduced track count.)

The BBR64-DANTE allows hassle-free communication with any of the many hundreds of Dante™-enabled devices now in use worldwide. Designed to support standard network components and switches, it can also record 8 channels of analogue (balanced line in) alongside 56 channels of Dante for capturing audience and ambience.

The BBR64-DANTE will lock to or generate word clock, as well as locking to the incoming Dante audio stream. In addition to the PFL bus providing both hi-resolution metering and headphone monitoring, an additional “mix” feature has been added to the headphone output.

All BLACKBOX Recorders are designed and built to exacting standards with rugged construction and a suite of unique multi-track audio capture features. The choice of professional users, the BBR64-DANTE multi-track Dante recorder is the solution the professional audio industry chooses and trusts. For more information, see below to download the BLACKBOX Recorder brochure, for full information on the entire BLACKBOX range.

BBR64-DANTE Specifications
