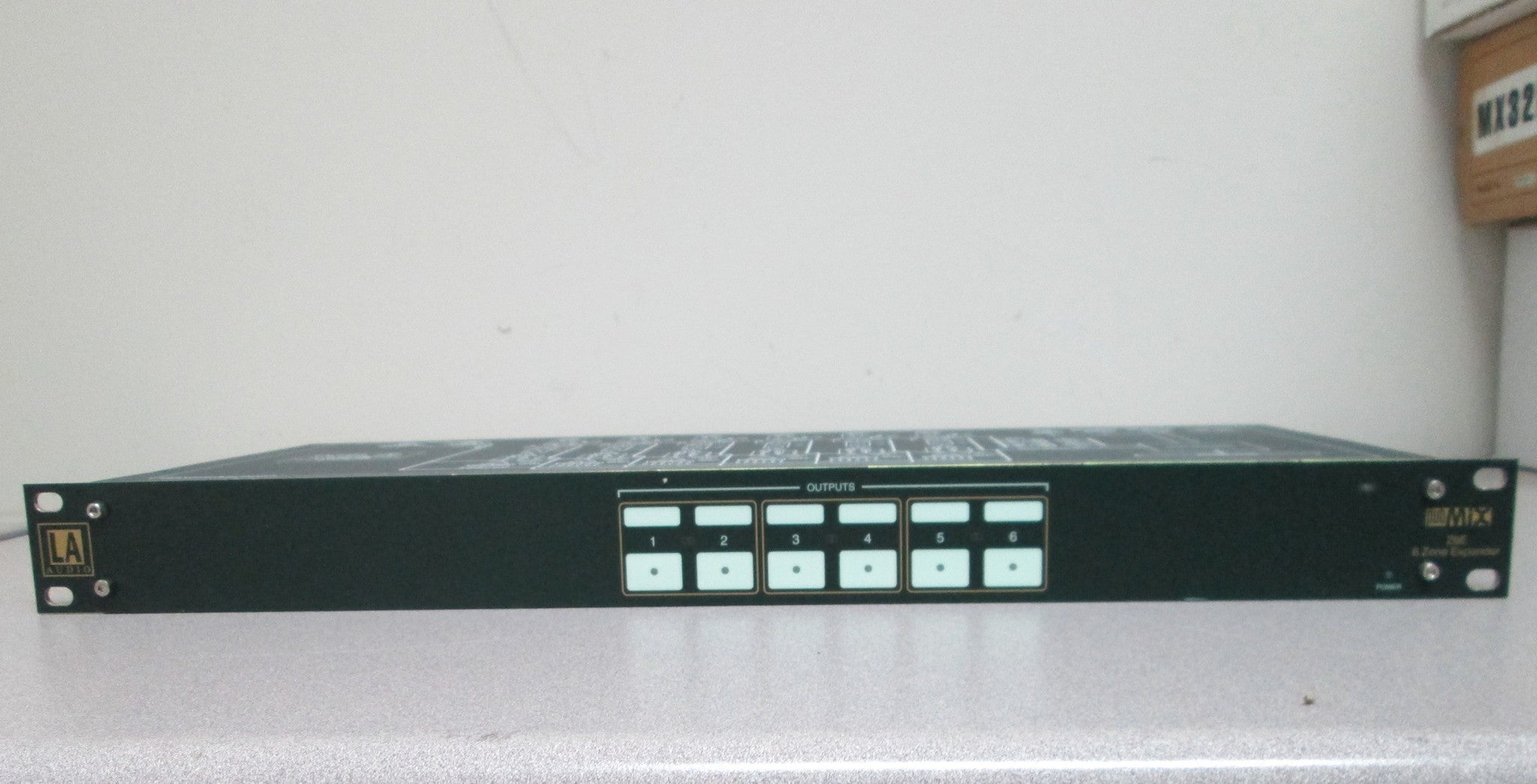

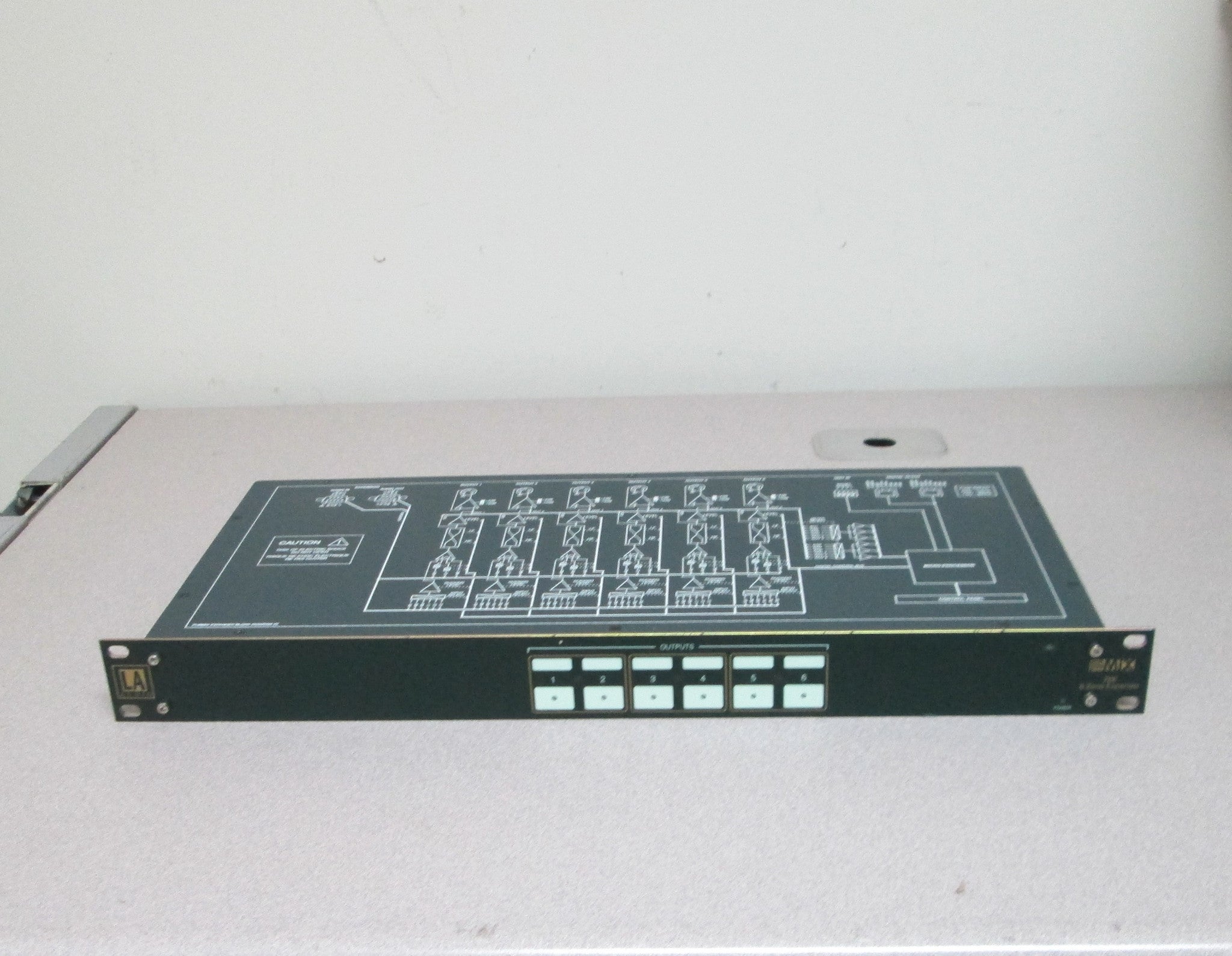

LA Audio ZX135E 6 Zone Expander

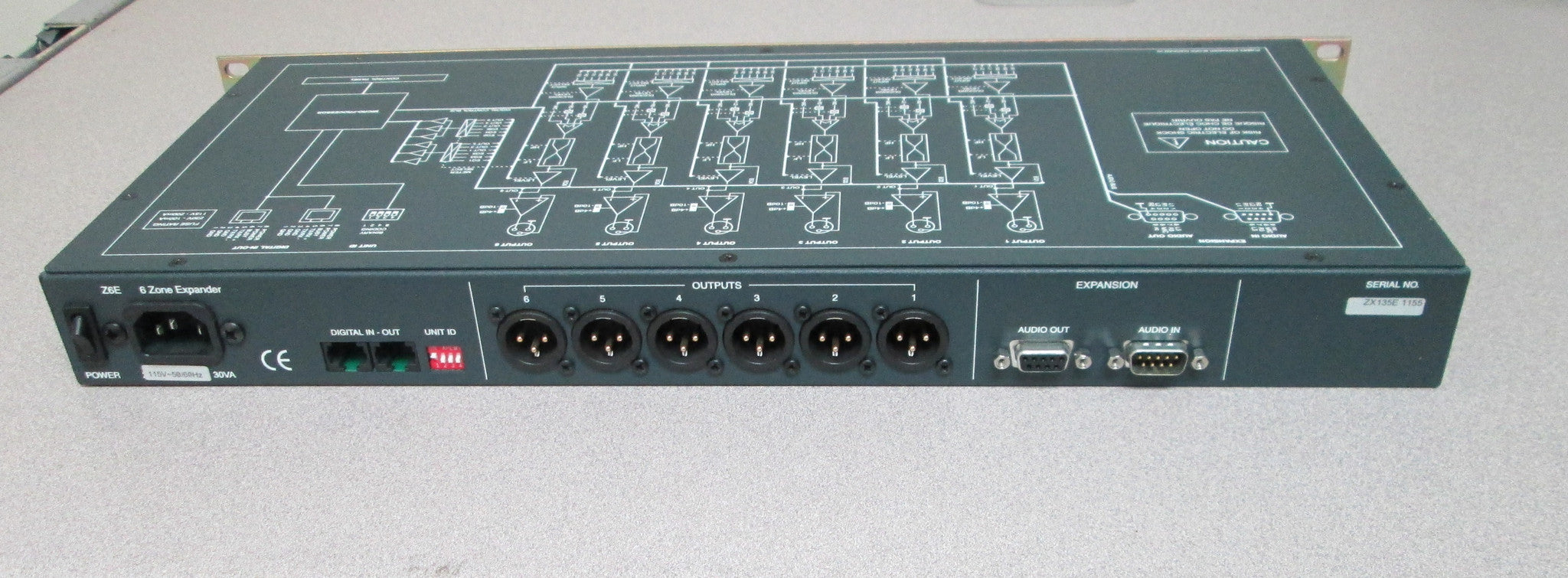

The ZX135 'PubMix' is a zone mixing system designed to fulfil the audio distribution requirements of smaller venues such as pubs, clubs, restaurants and retail outlets.The system combines all the demands of these installations into a digitally controlled package that reduces the complexity and time taken for installation and enhances the security and control of user functions in a way never before presented at this price point. An RS232 option allows the system to be interfaced with external system controllers or PC. The PubMix system will accommodate one microphone input and three line inputs into a maximum of 23 outputs, which can be configured as a mix of mono and stereo zones.The building blocks of the system consist of the ZX135 Master unit and the ZX135E Expander unit. Additional accessories such as a Paging Microphone unit, Master Zone Controller and individual Remote Zone controllers for volume and source selection.The ZX135 Master unit provides the input connections, One Microphone, One balanced Line on XLR and front panel break jacks, and two unbalanced Lines on Phono connectors. Five balanced outputs are provided on XLR connectors. Outputs 1-4 can be configured as Stereo pairs and output 5 is designed to feed background music to common areas such as corridors and toilets. Therefore the ZX135 provides an out of the box solution for many small applications.The ZX135E Expander unit provides six additional outputs (three stereo zones), and up to three ZX135E units can be added to the system.
Features
* Full routing matrix of 4 inputs to 23 zones
* Configurable for Mono and Stereo zoning
* Individual level control for each zone
* Individual Equalisation for each zone
* Automatic Volume Dependant Equalisation
* Priority Paging system with remote Paging unit
* Priority line input for connection to Juke Box or announcement machine
* Master zone control panel for source selection and zoning with LCD for displaying zone names
* Individual wall box Zone controllers for Volume only and Volume plus Source Select
* Security announcement override system
* Simple CAT5 installation of Remote boxes and
* Paging unit.
* Total software locked security and user access levels
* RS232 controllable
