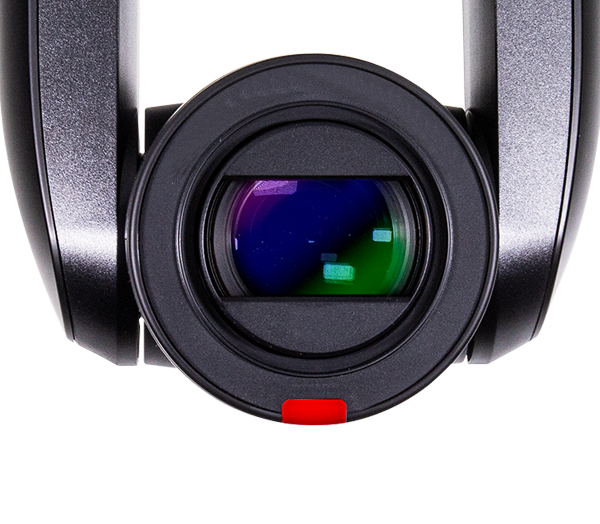

Marshall CV730-BHN PTZ cameras feature 9.2 million-pixel Sony sensors with a long 30x optical zoom range and flexible simultaneous 12GSDI & HDMI outputs along with networkable full-NDI®, NDI|HX3, NDI|HX2, IP (HEVC), SRT and other common IP codecs. The crystal-clear UHD (4K) images up to 3840x2160p at 60fps offers a flexible professional camera source to any production. Full NDI® delivers the lowest latency, highest quality, frame-accurate video, and audio in real time to IP workflows. NDI®5.5 and other NDI|Tools opens the ability to integrate more video devices and applications into your production workflow. Also, ability to Genlock the SDI signals via Black Burst or Tri-Level Sync and optional USB3.0 workflow.
Best of Class
Featuring output options of 12GSDI, HDMI, USB and IP simultaneous outputs from a professional grade 9.2 million pixel 1/1.8" UHD sensor and smooth synchronous movements. CV730 delivers crystal-clear UHD images up to 3840x2160p at 60fps and remote broadcast-style adjust & match setting control through NDI, IP, RS232/RS422 using universal open source protocols.
Flexible Zoom Range
Designed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures crystal clear head & shoulder shots at very long distances.
Ease of Use
Install one-cable from IP switch with PoE++ to ethernet port on rear panel of camera – THAT’S IT – or use Ethernet for PoE/Control/Preview and send traditional outputs (12/6/3G-SDI or HDMI) to production, switching or archiving.
Professional Broadcast Performance
Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners. Full NDI, NDI|HX3, SRT, IP, Dante AV-H and more to come.
- 9.2 million pixel UHD Sensor (1/1.8") with Sony square pixel array
- 30x Optical zoom (6.5mm~202mm) starting at 65° H.AOV
- Smart Auto-Focus AI System ensures faces and eyes stay in focus at all times
- 340° pan & 120° tilt range with select-able transition speeds (5~300° per second)
- 12GSDI, 3GSDI, HDMI2.0, NDI|HB, NDI|HX3 or IP (SRT/HEVC)
- 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i and 1280x720p
- All framerates have access to 59.94, 50, 29.97, 25fps framerates
- 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
- 12V Power Supply included (30W max) and PoE++
- Low-light performance – 0.05 lux (F1.6, 50IRE)
Applications:
Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, Observation
