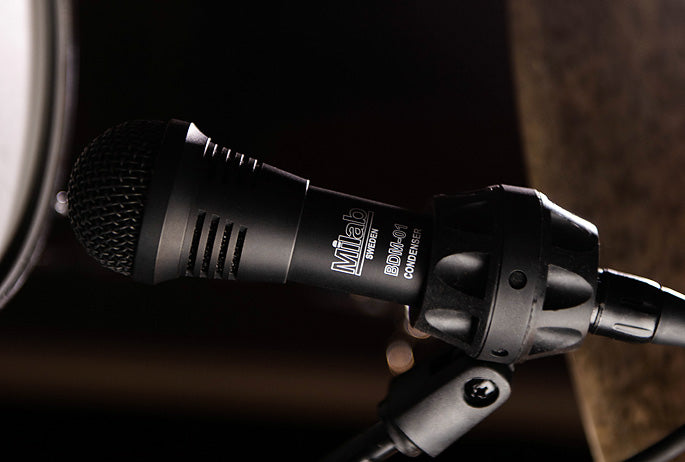

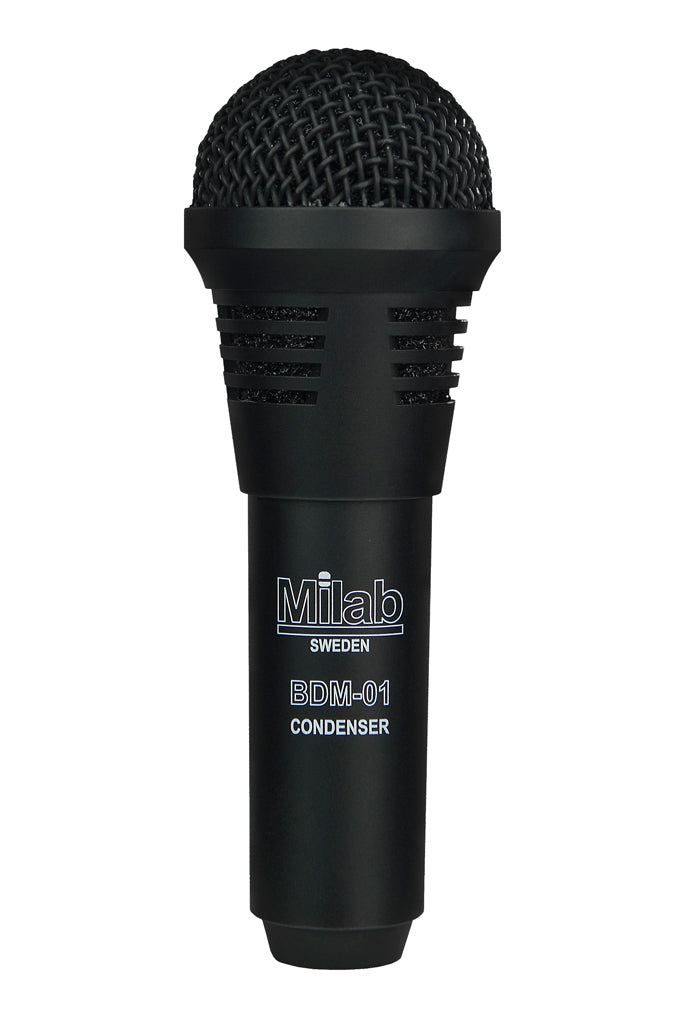

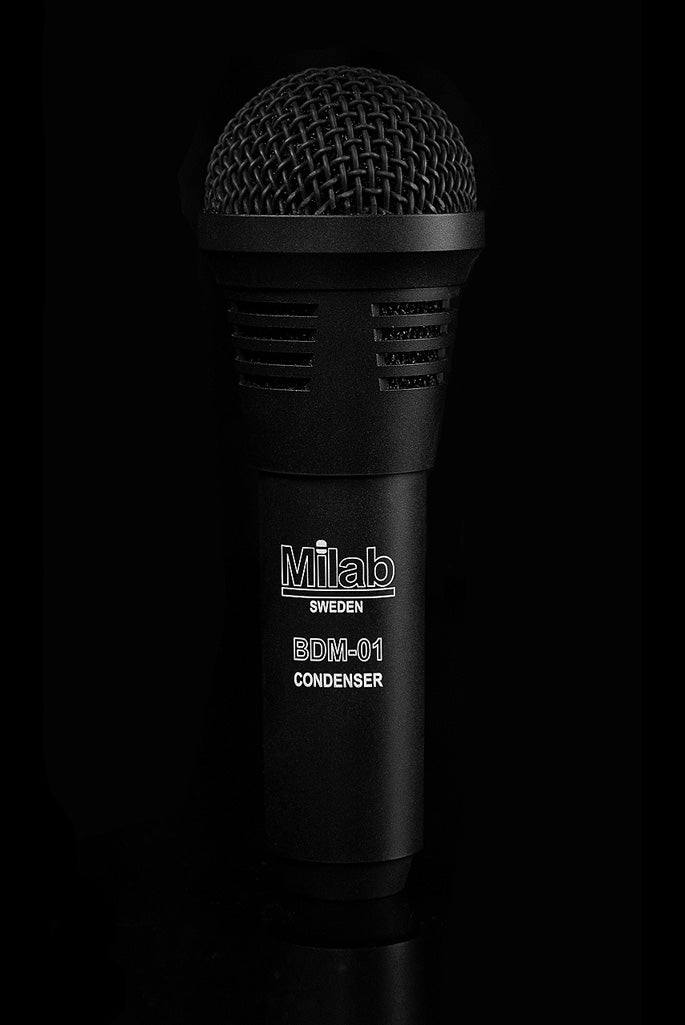

Milab BDM-01 - Bass Drum Condenser Microphone

The BDM-01 is a dedicated bass drum microphone that is as equally at home in the studio as on the road. It has been designed in every detail to handle the sound pressure level and specific sonic qualities of the bass drum. The high-end condenser capsule provides excellent attack and HF response, and the frequency curve has been tailored for that perfect bass drum sound. The dynamic range, sensitivity and pop filters are also optimised for the sound and power of the bass drum.

The heart of the microphone is Milab’s handcrafted 21 mm condenser capsule that captures the true sound of the drum with a fullness and attention to detail that is simply superior to a typical dynamic microphone alternative.

Package includes: 3127 stand holder, 3402 windscreen and individual frequency graph.

Features

• Bass drum condenser
• Transformerless
• Rubber fitted capsule
• 155 dB SPL handling
• Excellent pop protection
• Gold plated XLR connector

Specifications

• Product name

  Milab BDM-01

• Type

  Condenser

• Article number

  1101

• Frequency response

  20 to 20,000 Hz

• Polar pattern

  Cardioid

• Max SPL (1 % THD at 1 kHz)

  155 dB

• Sensitivity at 1 kHz

  2 mV/Pa (± 1 dB)

• A-weighted noise level (IEC 179-A)

  25 dBA

• Power supply

  48 V Phantom (DIN/IEC)

• Current consumption

  4 mA

• Output impedance

  <200 Ω

• Minimum load impedance

  1 kΩ

• Connection

  3-pin XLR

• Length

  142 mm

• Diameter

  24/47 mm

• Net weight

  210 g
