Milab SRND 360 - Surround Condenser Microphone

Sale price$ 5,661.00
SKU: SRND 360

Call us at 1-877-223-8858 or Ask a Question below

Milab SRND 360 - Surround Condenser Microphone

Model

Milab SRND 360 - Surround Condenser Microphone

A single-unit surround system for audophiles, based on a revolutionary technology that produces six separate cardioid channels from only three capsules.

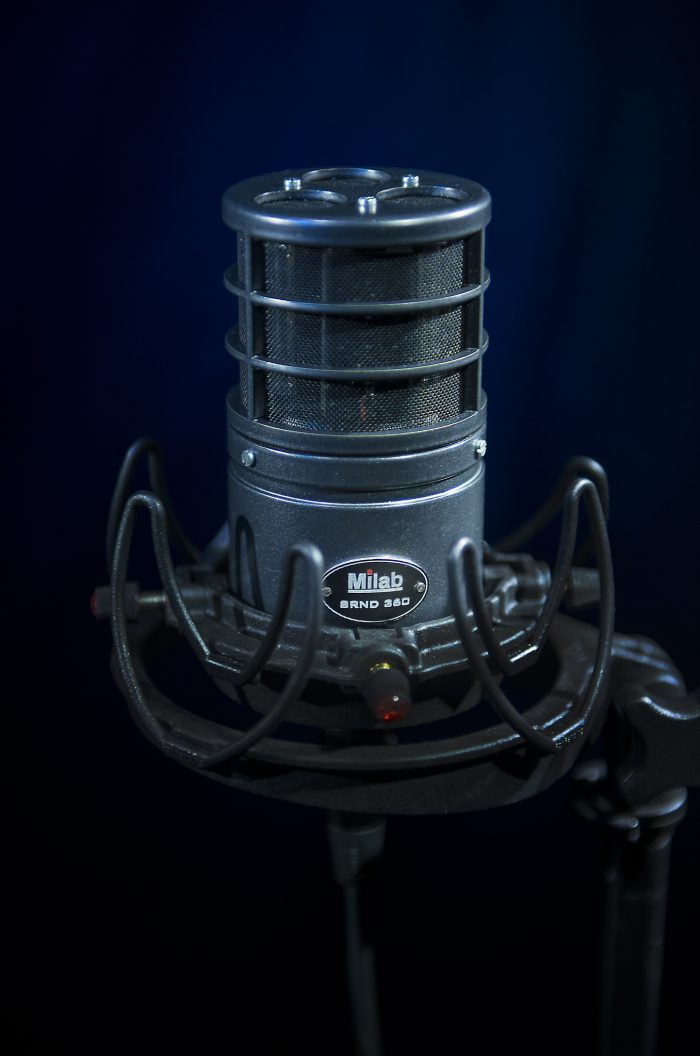

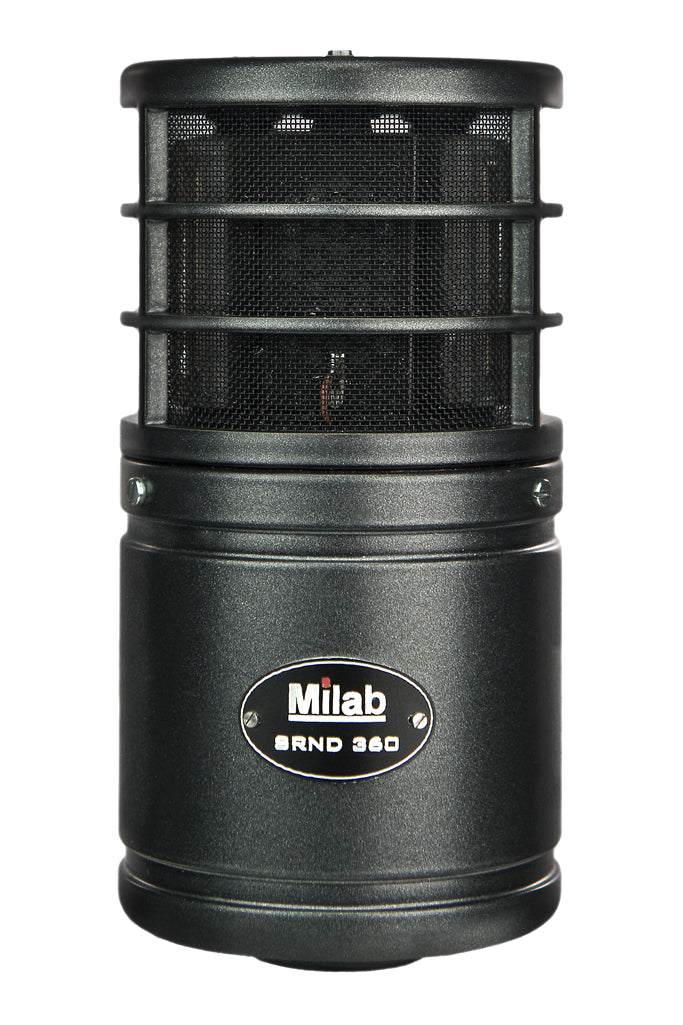

The SRND 360 is an innovative, versatile and very compact single-unit surround microphone that records up to six channels simultaneously using only three microphone capsules.

A separate power unit processes the signals from the three Milab 2900 rectangular capsules to create three additional “virtual” capsules in empty space between the physical ones. The result is six cardioids at 60 degree spacing which can be mixed down to a number of different formats, e.g. 5.1, 6.1 or 2.1.

Nothing has been compromised in sound quality to achieve the surround function. The SRND 360 is based on the same capsule and amplifier as the DC-196 and DC-96C, so connecting only one of the capsules turns the SRND 360 into a conventional large-membrane condenser and it will do a wonderful job on vocals, guitars etc.

Features

  • Single-unit, 6-channel coincident surround microphone
  • 3 x matched Milab 2900 capsules

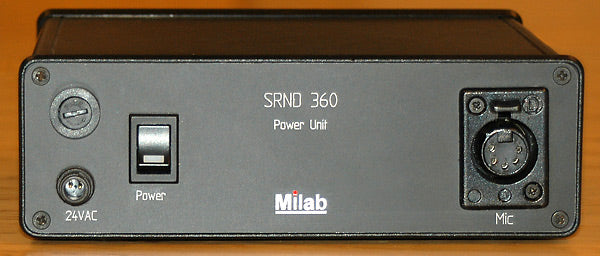

  • Separate power unit
  • 6 x XLR-outputs
  • Custom shockmount by Rycote

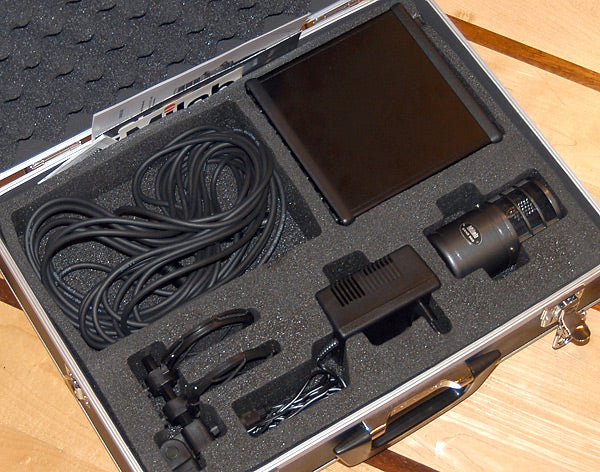

  • High-quality flight case

Specifications

  • Product name

    Milab SRND 360
  • Type

    Condenser
  • Article number

    1134
  • Frequency response

    20 to 20,000 Hz
  • Polar pattern

    6 x cardioids at 60° spacing
  • Max SPL (1 % THD at 1 kHz)

    130 dB
  • Sensitivity at 1 kHz

    14 mV/Pa (± 1 dB)
  • A-weighted noise level (IEC 179-A)

    12 dBA
  • Power supply

    From power unit
  • Output impedance

    <200 Ω
  • Minimum load impedance

    1 kΩ
  • Connection

    6 x 3-pin XLR
  • Cable length

    10 m or customer specified
  • Length

    120 mm
  • Diameter

    60 mm
  • Net weight

    685 g
