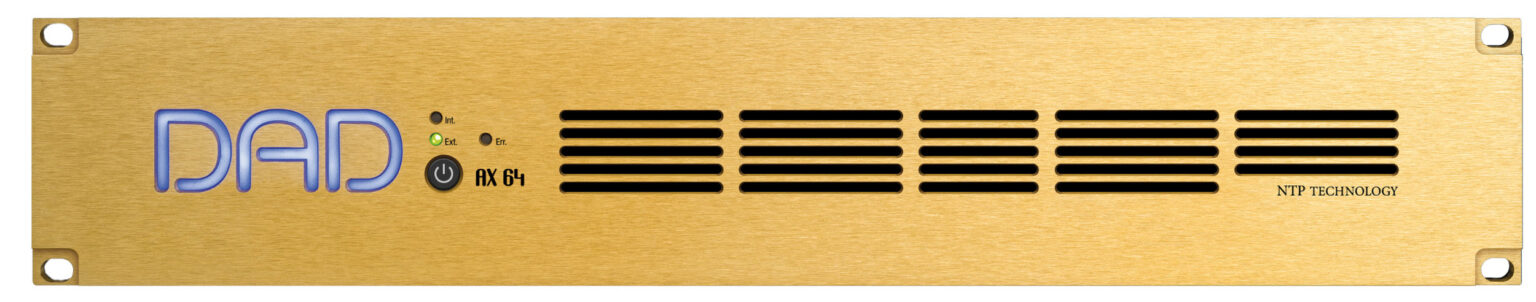

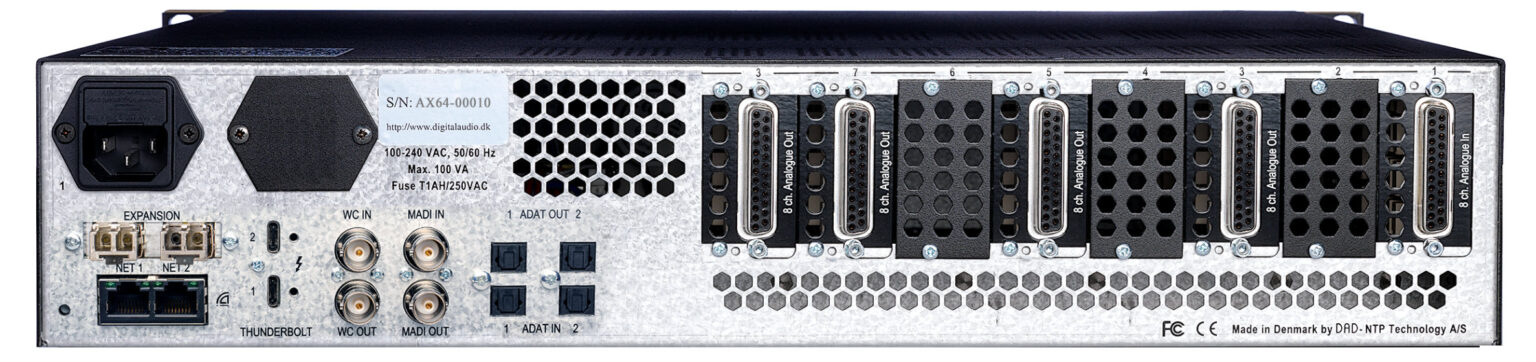

NTP DAD AX64 BASE UNIT

Overview

• 1,744 Input and Output Channels
• Multi-Format Audio A/D, D/A and D/D Converter
• Router and Monitoring Interface Thunderbolt 3 I/O (256 Ch.)
• Dante AoIP I/O (256 Ch.)
• MADI I/O (64 Ch.)
• ADAT I/O (16 Ch.)
• 8 Slots for Optional Multi-Format DAD I/O Cards
• 512×64 Ch. Pro|Mon Summing and Speaker EQ Processing

DAW Interfacing

With Dante, MADI and ADAT ports onboard, native interfaces and versatile and flexible DADman routing control available, it is a stellar A/D, D/A and D/D converter that can grab any digital audio channel – convert it if needed – and route it anywhere.

Another application would be as a dedicated audio interface for your DAW.

Whether you run Pro Tools, Logic Pro, Nuendo, Cubase, Ableton Live, Digital Performer or any other DAW, AX64 is your super low-latency entrance. With the ADAT, MADI and Dante connectivity, you can easily add analog preamps or insert points to the mix.

Features

The basic I/O configuration for the AX64 multi-format interface is:

• 2 Thunderbolt 3 Ports (each w. 15W power)
• 256 Bidirectional Channels at 48 & 96 kHz
• ASIO / Core Audio Thunderbolt PCIe Drivers
• MADI/BNC-Optional 2 x SFP/BNC MADI
• ADAT /Litepipe (16 Ch.)
• DANTE: 256 Ch. at 48 kHz, 128 Ch. at 96kHz (IP Core)
• WC I/O • SPQ: 64 Ch. with 16 Filters
• Pro|Mon Support • Summing Processor 64 Output / 512 Input Busses
• Internal Router: 4096 x 4096
• 32bit Floting Point Processing
• 8 Slots for Any Available Expansion Cards
• Avid Eucon Enabled Devices via DADman
• Apple Silicon M1 and Intel Compatible Software
• Control via Ethernet or Thunderbolt Connection
• Dual 110/240V AC Power Connection as Option
