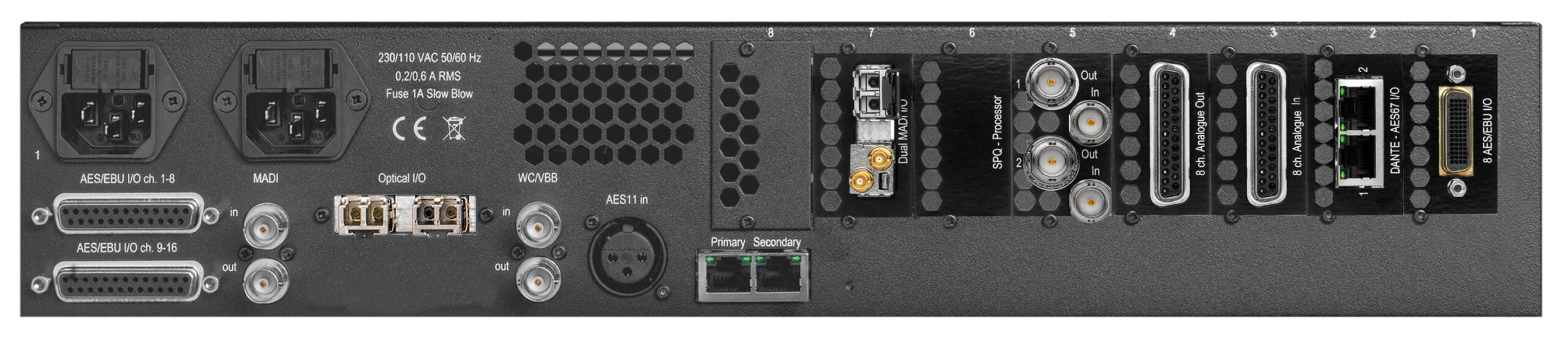

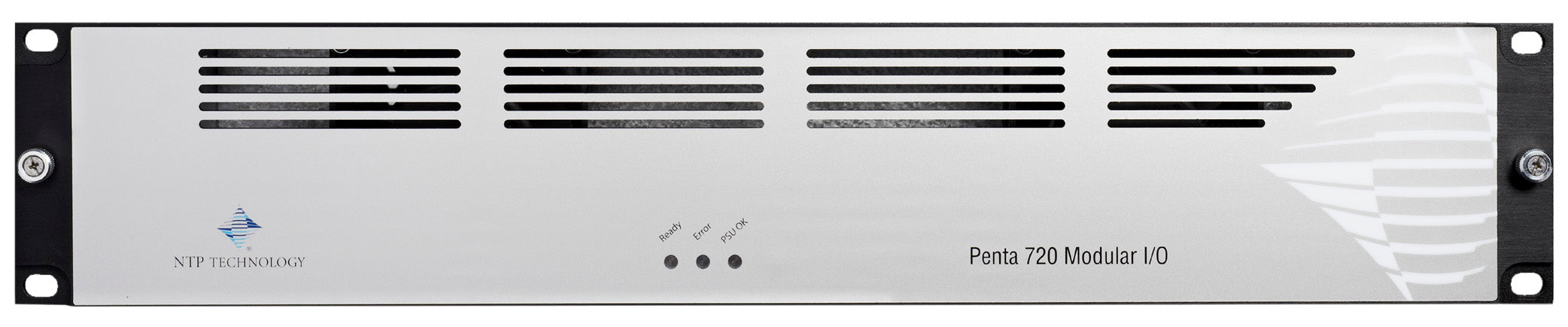

NTP PENTA 720 MODULAR AUDIO INTERFACE

PENTA 720 is a new generation of audio router and audio distribution interfaces from NTP Technology, which provides a versatile and flexible interface for signal distribution of analogue and digital audio via AES/EBU, MADI, SDI SD/HD/3G embedded audio as well as routing via IP Gigabit Ethernet and optical fibre networks.

PENTA 720 is a 2U modular audio interface designed for use in television or radio studios, outside broadcast vehicles and public-event venues. It comes with eight channel AES3 input/output channels, MADI and two IP Audio Ethernet in/outs.

Up to eight optional cards can be incorporated to match specific operational requirements. The range of available plugincards includes an eight-channel analogue input interface, eight-channel analogue output, two-channel SDI/HD/3G embedder interface and a two-channel SDI/HD/3G de-embedder interface. All cards support hot-swop. A mini-module slot is available for dual SFP MADI optical input/output module, which is also compliant to the NTP HotLink/Dual MADI format.
