Prism Sound Titan - Multichannel Audio Interface with Digital Expansion Slot (4 Mic Pres)

Sale price$ 3,499.00
SKU: Titan

Options: Titan with digital expansion slot (4 Mic Pres)

Options

Call us at 1-877-223-8858 or Ask a Question below

Prism Sound Titan - Multichannel Audio Interface with Digital Expansion Slot (4 Mic Pres)

Model

Prism Sound Titan - Multichannel Audio Interface with Digital Expansion Slot (4 Mic Pres)

Titan and Atlas are world class multi-track interfaces offering flexible expansion and unsurpassable sonic clarity. Using the latest generation of Prism Sounds trusted conversion, Titan is ideal for music and sound recording, multi-tracking, overdubbing, stem-based mastering, analogue summing and critical listening applications.

UNSURPASSED CLOCKING AND JITTER REJECTION

Prism Sounds history in developing test and measurement equipment for the audio industry has allowed our engineers to get a much deeper understanding of digital clocking and its associated issues.

DIGITAL MIXER WITH FLEXIBLE MONITORING

Titan has a powerful built-in digital mixer that can be configured to provide a multitude of ultra low latency feeds, Including foldback to performers, stereo and surround outputs.

FLEXIBLE I/O

Titan has a maximum capability of 18 concurrent input and output channels, offering 8 analogue recording channels, 8 monitoring outputs, stereo digital input and output on a phono connector plus concurrent optical digital I/O ports.

FUTURE PROOF CONNECTIVITY

With a standard USB connection Titan can connect to the widest range of computers today and for the foreseeable future. Add to this the option of ProTools HDX and Dante modules for the most flexible and professional solution.

TITAN

ULTIMATE COLLECTION VERSION

The Prism Sound Ultimate Collection is an optional bundle of products offered when purchasing a LYRA 1LYRA 2, or TITAN interface.

Gain access to a wealth of creative, innovative, and industry-leading audio tools. Prism Sounds Ultimate Collection is valued at over $4000, and features an array of premium instruments, contemporary FX plugins, an award-winning music production focused DAW and an industry-leading mastering and edit suite.

MDIO

MULTI-CHANNEL I/O EXPANSION

In an ever changing world of I/O connectivity, the MDIO expansion slot allows your Prism Sound interface to remain relevant, increasing its lifespan and bring a much better return on your investment.
Both options allow you to stack multiple Titan or Atlas providing sample accurate phase locked audio between multiple units.

SOFTWARE

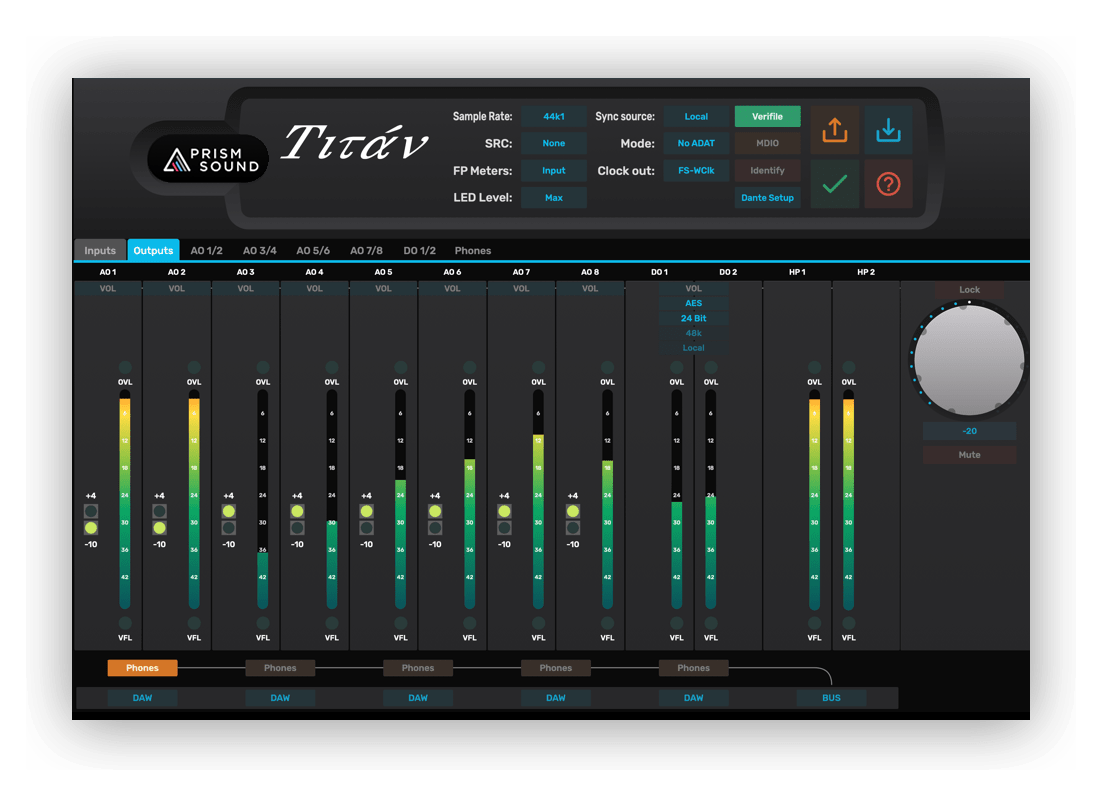

Titan’s front panel gives continuous visual indication of the unit’s main settings and levels, but in-depth control is managed from the Titan Controller applet. This runs on the DAW computer, and can be popped up whenever adjustments are needed.
The upper area of the applet shows a panel of ‘Global’ settings for the entire group of connected interfaces, and a panel of ‘Unit’ settings which is assignable to each connected unit in turn, using the enclosed drop-list. These settings are concerned with general parameters such as sync source and sample rate selection, metering and buffering modes. An ‘Identify’ button causes all the LEDs on the selected box to light, to assist with identification in multi-unit systems. To the right, there are large buttons for loading and saving setups, and for on-line help.

TECH SPECS

DIMENSIONS

1U 19inch rack mountable
(rubber feet and rack ears supplied)

Table top (inc feet): W: 440mm D: 290mm H: 50mm

Rack-mount (inc ears):
W: 483mm D: 290mm H: 44.5mm


POWER

90-250VAC, 50/60Hz internal power supply

IEC 6A connector

35W 0.5A(T) 20mm ceramic fuse


INPUTS

4 x combo connectors with XLR sockets for mic input and 6.3mm TRS jack sockets for line input (balanced or unbalanced)

1 x RCA

1 x TOSLINK for S/PDIF or ADAT Optical input


OUTPUTS

8 x 6.3mm TRS jack sockets (balanced or unbalanced)

1 x RCA

1 x TOSLINK for S/PDIF or ADAT Optical output
