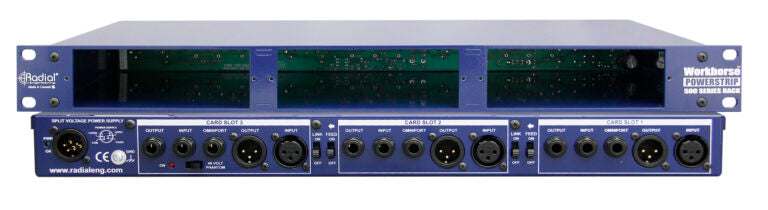

Radial Engineering PowerStrip - 3-Slot Power Rack

The PowerStrip is a three module rackmount power supply designed to bring the fun and excitement of 500 series modular audio to everyone!

• Single RU power rack houses three 500 series modules
• Designed to create the ultimate input strip
• Compatible with Radial and older API systems
• Provides up to 500 mA of shared current

Ultimate channel strip

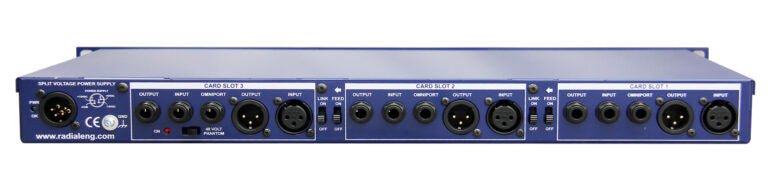

Following the criteria established by the Radial Workhorse, the PowerStrip is 100% backwards compatible with older API modules while being optimized for Radial's expanding range of preamps, processors and routing devices. Construction begins with 14 gauge steel and features dual gold contact EDAC 15-pin connectors for optimal signal transfer. To maximize headroom, the external supply delivers 500mA of current for voltage hungry modules plus a separate 48V phantom tap delivers 10mA of current for microphone preamps. Rear panel connectivity includes standard XLRs for each slot along with ¼" TRS connectors for multing modules, cross patching and parallel processing. Instead of the traditional 'hardwire patch' system employed by others, The PowerStrip employs an innovative feed function that patches modules together in series without the need of cables. And stereo modules no longer need to be soldered to be paired, they can now be sync'd together using a simple switch. The PowerStrip is also equipped with Omniport on each sot. This TRS jack enables the module manufacturer to implement a unique function for a given module such as a key input on a gate.
