Mac® | Windows® | iPad Pro®
Compatible with all Thunderbolt™ 4 computers, all M1, M1 Pro, M1 Max Macs, all Thunderbolt 3 Mac and Windows computers, and iPad Pro tablets with a Thunderbolt port
Peripherals to Your Computer with One Cable
Plug in your USB peripherals, Thunderbolt™ devices, and a monitor, and then connect them all with a single Thunderbolt cable from the Echo™ Dual NVMe Thunderbolt Dock to your computer. When it is time to leave, just unplug the Thunderbolt cable, grab your laptop, and go.

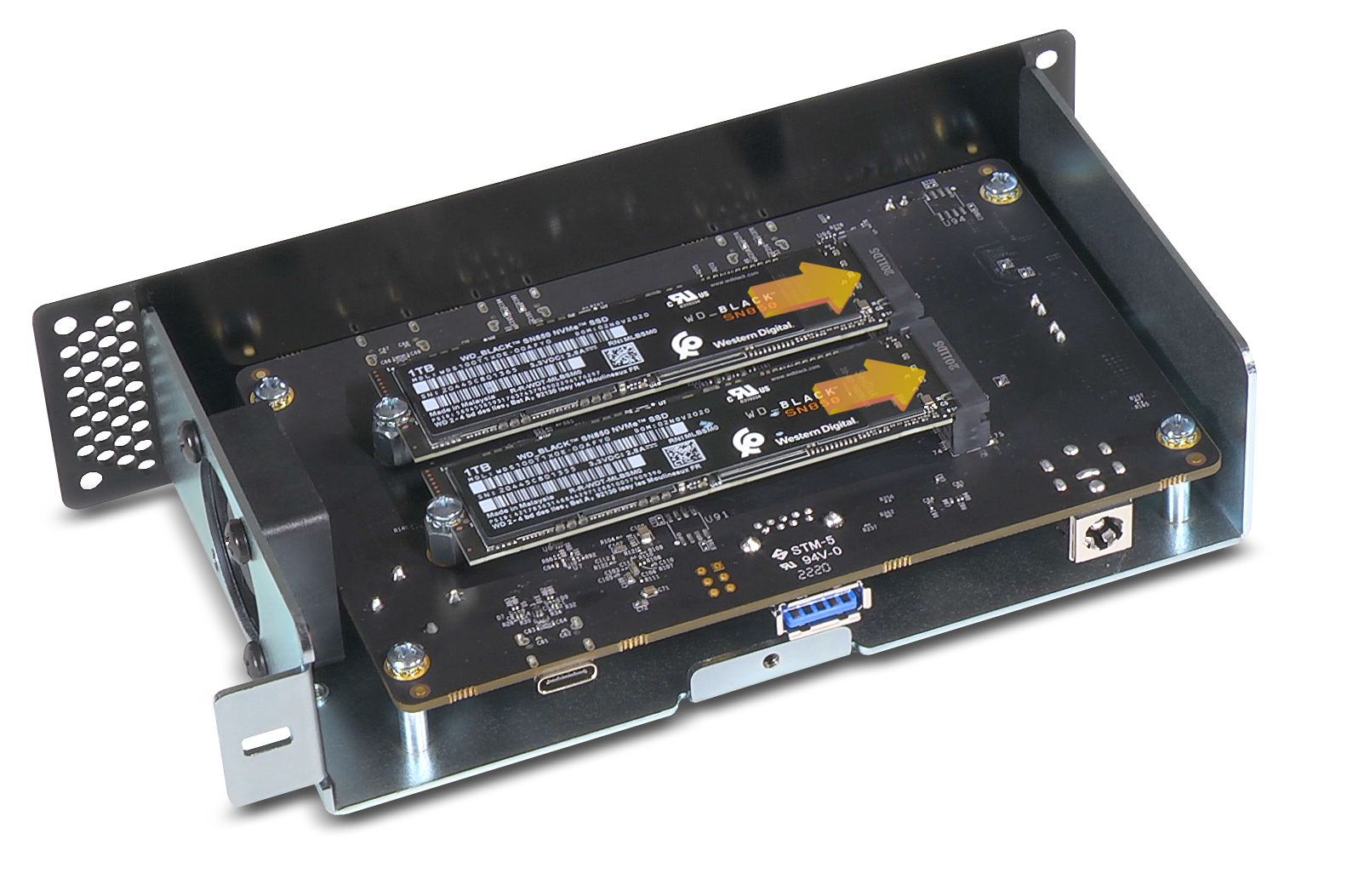

The Echo Dual NVMe Thunderbolt Dock features two M.2 NVMe PCIe SSD slots, enabling you to easily install high performance M.2 NVMe SSDs (sold separately) inside. Because installed SSDs interface with the dock’s Thunderbolt controller, they utilize its bandwidth to deliver the performance of a portable Thunderbolt SSD, but are tucked away neatly within the dock.
Single SSDs installed in the Echo Dual NVMe Thunderbolt Dock can each achieve sustained data transfers of up to 1500 MB/s. Configured as a RAID 0 set for even greater performance, data transfers up to 3000 MB/s are possible. Start with one SSD, and add any size SSD later without needing to format the first one.
Mac Compatibility
iPad Compatibility
- iPad Pro with Thunderbolt port
Windows Compatibility
- Windows computer with Thunderbolt 4 or Thunderbolt 3(1) port(s)
- Windows 11, 10
HDR Compatibility
Part Number
Warranty
Form Factor
External Connectors
- Two Thunderbolt ports
- Two USB 3.2 (10Gbps) Type-C charging ports
- Two USB 3.2 Gen 2 (10Gbps) Type A charging ports
- One power connector
Thunderbolt 3 Computer Port
- Provides laptop charging up to 15W
- Any Thunderbolt 4 cable
- Any Thunderbolt 3 (40Gbps) cable
Thunderbolt 3 Peripherals Port
- Thunderbolt 3
- Thunderbolt 2 (macOS(2))
- USB4
- USB 3, 2.0, and 1.1 devices
- Thunderbolt 3 and USB-C monitors
- DisplayPort and HDMI monitors(3)
USB 3.2 Gen 2 Type-C Ports
- With USB Type-C connector
- USB 3, 2.0 and 1.1 devices
- Thunderbolt 3-only devices are NOT supported
- USB 3.2 Gen 2 (previously USB 3.1 Gen 2) 10Gbps
- 7.5W per port for operating or charging
- 1.5A per port advertised using USB Type-C Charging
- Supports simultaneous charging and syncing
USB 3.2 Gen 2 Type A Ports
- With USB Type A connector
- USB 3, 2.0 and 1.1 devices
- USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps
- 7.5W capacity to charge iPad, iPhone, or other device
- USB Battery Charging 1.2-compliant
- Supports simultaneous charging and syncing
Internal Connectors
- Two M-keyed (NVMe) M.2 sockets (each connected at PCIe x2)
SSDs Supported(4)
- Single- and double-sided M.2 2280 NVMe PCIe SSDs (with or without heat sink)
Power Adapter
- Universal 96W, 100-240V AC, 50-60Hz
Kensington Security Slot™
- Supports Standard, MicroSaver®, and MicroSaver 2 Locks
Operating Temperatures
- 0ºC to 35ºC (32ºF to 95ºF)
Dimensions (WxDxH)
- Dock: 6.8 x 3.4 x 1.8 in. (7.3 x 8.6 x 4.44 cm)
- Power Adapter: 2.8 x 4.9 x 1.0 in. (7.3 x 12.4 x 2.54 cm)
Weight
- Dock and Power Adapter: 2.2 lbs (1.0 kg)
- Complete Package: 3.2 lbs (1.45 kg)
Compliance
- RoHS 3 (Directive 2015/863)
- IEC62368-1 and IEC62368-2 Safety
Package Contents
- Echo Dual NVMe Thunderbolt Dock
- Power adapter
- Power cord
- 0.5-meter Thunderbolt 3 (40Gbps) cable
- ThunderLok 3 Thunderbolt connector retainer clip(5)
- Documentation
