Soyuz 017 TUBE - Large Diaphragm Tube Microphone

Model

Soyuz 017 TUBE - Large Diaphragm Tube Microphone

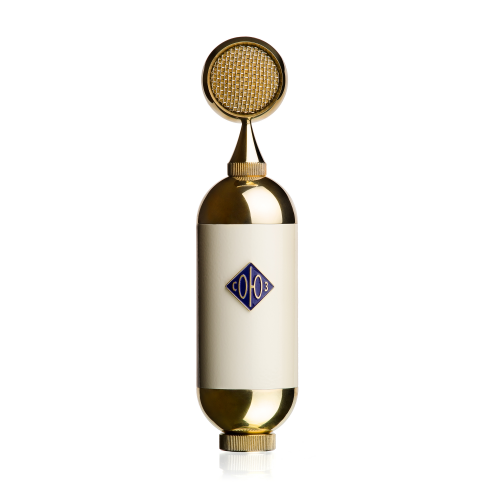

The SU-017 large-diaphragm tube condenser microphone delivers sound that is as rich, warm, solid, and beautiful as its hand-crafted, polished design suggests. Swappable capsules make this high performance microphone at home in a wide range of critical recording applications, from vocals to orchestral instruments.

Features a cardioid capsule with gold-sputtered, hand-tuned 1 inch diaphragm; optional capsules include omnidirectional and figure 8 patterns.

Type- Tube condenser microphone
Capsules- Two 34mm membranes (one gold sputtered)
Frequency Range- 20Hz/20kHz
Polar Pattern- Cardioid (swappable) with optional omnidirectional and figure 8
Sensitivity- 16mV/Pa
Impedance- 270 Ohms
SPL -120 dB Equivalent Noise- 20 dB (a-weighted)

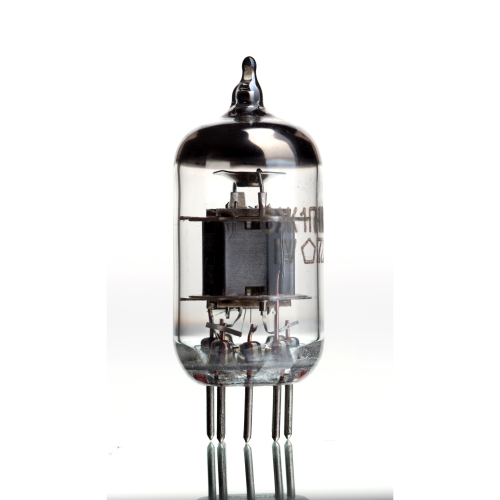

Tube Type- 6G1P
Power- Dedicated power supply- BP - 017
Size- 226mm length x 55mm diameter
Weight- 950g

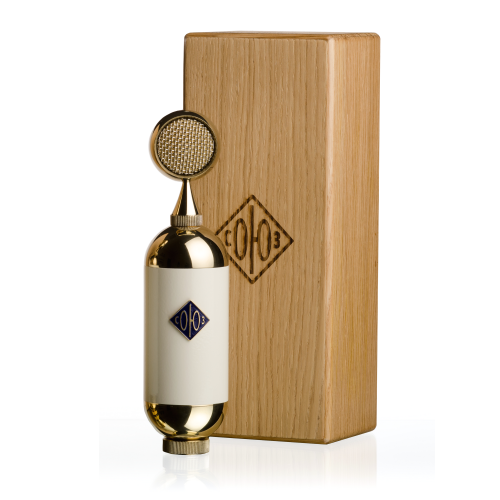

Extras- wooden microphone box, power supply, 6 pin cable, shock mount
