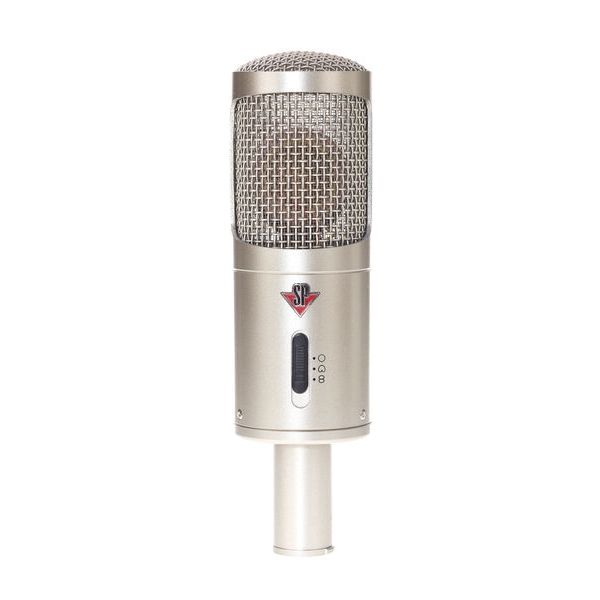

Studio Projects B3 - LD Multi-Pattern Mic

Name: Studio Projects B3 - LD Multi-Pattern Mic
Brand: Studio Projects
SKU: B3
Price: 199.0 USD
Availability: InStock

$ 199.00

SKU: B3

QTY:

Apply for Financing PADvantage

Call us at 1-877-223-8858 or Ask a Question below

Studio Projects Studio Projects B3 - LD Multi-Pattern Mic

$ 199.00

Studio Projects B3 - LD Multi-Pattern Mic

Model

Studio Projects B3 - LD Multi-Pattern Mic

The Studio Projects B3 is the ultimate in large diaphragm condenser microphones at this price anywhere. This microphone has all the technical refinements to be an enduring classic . With features you would expect in a world class microphone, the B3 offer's three recording pattern positions (cardioid, omni and a true figure eight)
with pad and Hi-Pass filter.

Equipped with a true 1" 3 um gold sputtered dual gold large diaphragm in a pressure gradient transducer capsule, the B3 will ensure the finest quality of recordings while offering linear response and a classic deep rich sound. The B3 can be connected to any external microphone preamplifier or mixing console which provides 48 volt phantom power or via any 48 volt external power supply.

Features

• Pressure-Gradient Transducer, Dual 1" 3 um mylar capsule
• Selectable patterns (omni, cardioid, figure eight)
• High Pass Filter
• 10db Pad

Included Accessories

• Zippered Bag
• Foam Wind Screen
• Shockmount

B3 Technical Specifications:
	Type: Polar pattern: Frequency response: Sensitivity: Output impedance: Load impedance: Maximum SPL:	FET 3 micron 1" large dual diaphragm Cardioid, Figure of Eight, Omni 20~20000Hz 14/16/18mV/Pa(Omni./Cardioid/Figure 8) (-37/-36/-35dB @1000Hz) <200 Ohm >1000 Ohm 132/142dB SPL for 1% THD @1000Hz(0dB/- 10dB pad, 0dB SPL=0.00002Pa)
	Noise: S/N: Pad: Low cut: Power requirement Current consumption: Connector: Circuit:	14dB-A (Cardioid) 80 dB -10dB 6dB/Octave at 150 Hz 48 +/- 4V <2.5mA Gold-plated 3-pin XLR Transformerless circuit. (featuring extremely low self noise and large dynamic range)
