Studio Projects C1 - Fixed Cardioid LD Mic

Sale price$ 299.99
SKU: C1

Call us at 1-877-223-8858 or Ask a Question below

Studio Projects C1 - Fixed Cardioid LD Mic

Model

Studio Projects C1 - Fixed Cardioid LD Mic

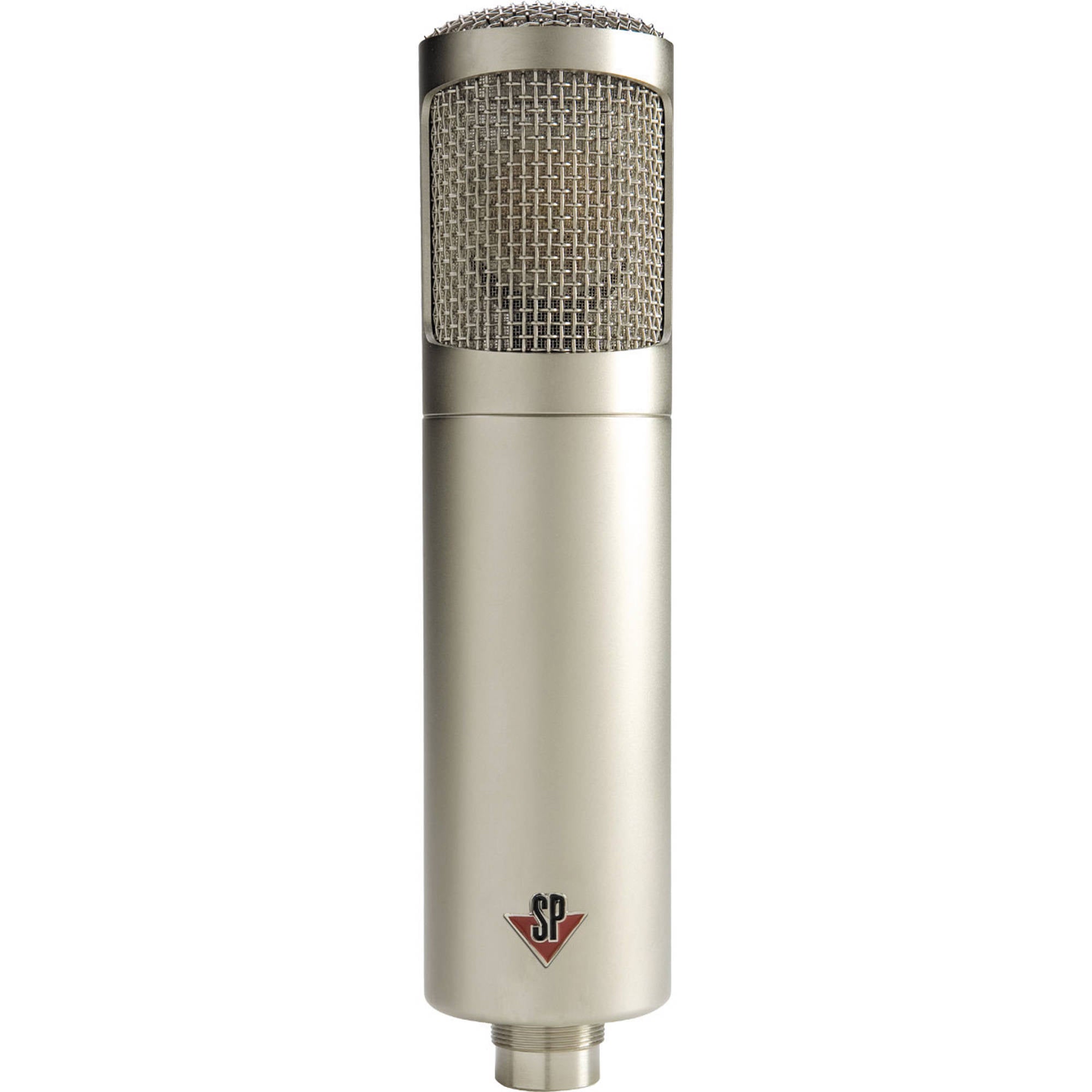

The Studio Projects C1 is a large diaphragm, fixed-cardioid condenser microphone employing a 1.06” (27mm) capsule, high quality, low noise amplifier and balanced, transformerless output circuitry. It features switchable -10dB or -20dB pad and 6dB@75Hz or 150Hz high pass filter for added control in various recording applications and a clear, full response expected from a large capsule microphone design.

Versatility is key in the recording arena, and the Studio Projects C1 is a well-proven and award winning tool. It is designed to deliver the finest quality vocal and instrumental recordings and will serve to enhance any professional or project studio at an unbelievably low price.

As a result of uncompromising dedication and advanced production capabilities, Studio Projects will continue to broaden the range of quality pro audio microphones & electronics for today's recording
environment.

Features


• Pressure-Gradient Transducer: 1.06" (27mm) 6um mylar   diaphragm
• High Pass Filter, 6dB/octave@ 75Hz or 150Hz
• -10db or -20dB Pad

•Can be purchased in a matched pair!


Included Accessories


• Halo Shockmount

• Foam wind screen
• Case

C1 Technical Specifications:



Type:
Polar pattern:
Frequency response:
Sensitivity:
Output impedance:
Load impedance:
Maximum SPL:

Pressure gradient solid state condenser microphone
Cardioid
30~20000Hz
14mV/Pa=-37dB(0dB=1V/Pa)
<200 Ohm
>1000 Ohm
131 dB SPL for 1% THD @1000Hz (0dB SPL=0.00002Pa)

Noise:
S/N:
Pad:
Low cut:
Power requirement
Current consumption:
Connector:
Circuit:
(Line): 27dB (A weighted)---17dB
77 dB
-10dB or -20dB
6dB/Octave at 75Hz or 150Hz
48 +/- 4V
<2.5mA
Gold-plated 3-pin XLR
JFET impedance converter, discrete balanced output
