TAD-E2 Evolution Two

TECHNOLOGY

FLAWLESS, BRILLIANT HIGH-FREQUENCY DETAILS

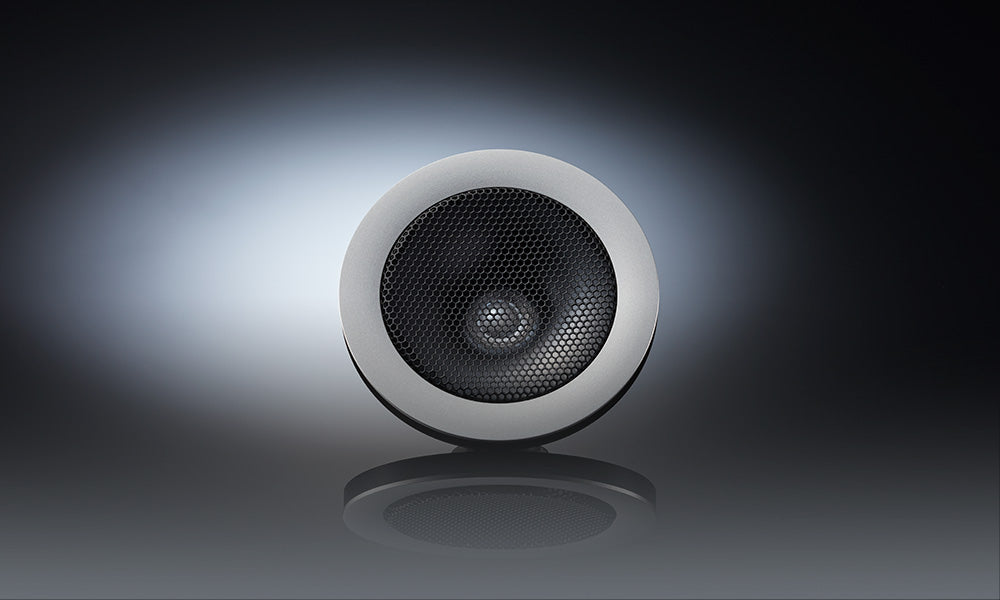

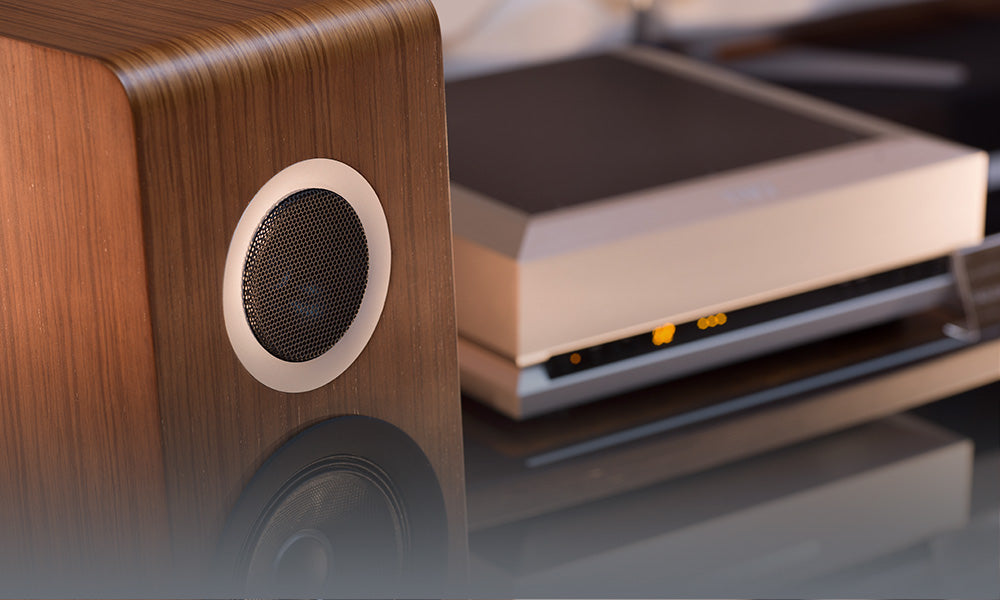

As is the case with the critically acclaimed TAD-E1TX and TAD-ME1 speaker systems, the TAD-E2 features a tweeter with a 25-mm beryllium diaphragm that delivers a polished sound in the mid-to- high frequency range—a signature of all TAD speakers. The directivity of the tweeter is optimally controlled by a newly developed waveguide on which it is mounted. The guide is made of rigid cast aluminum to suppress unwanted resonance and helps disperse soundwaves smoothly over an extended frequency range. The shape of the diaphragm is determined by an advanced optimization method based on the HSDOM (Harmonized Synthetic Diaphragm Optimum Method) computer analysis to provide a frequency response up to 60 kHz.

POWERFUL EXPRESSION OF CLARITY IN THE MID TO LOW RANGE

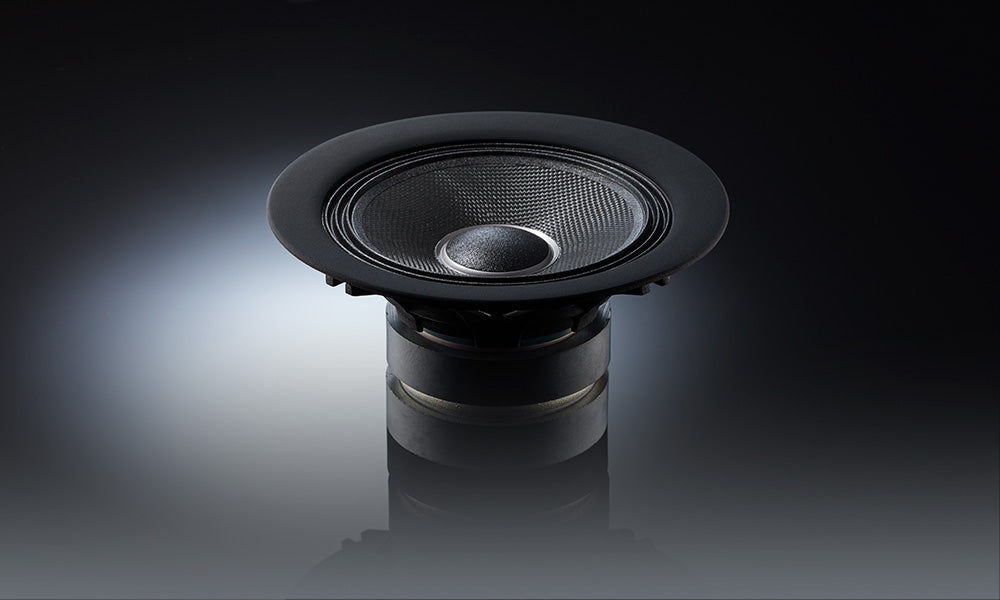

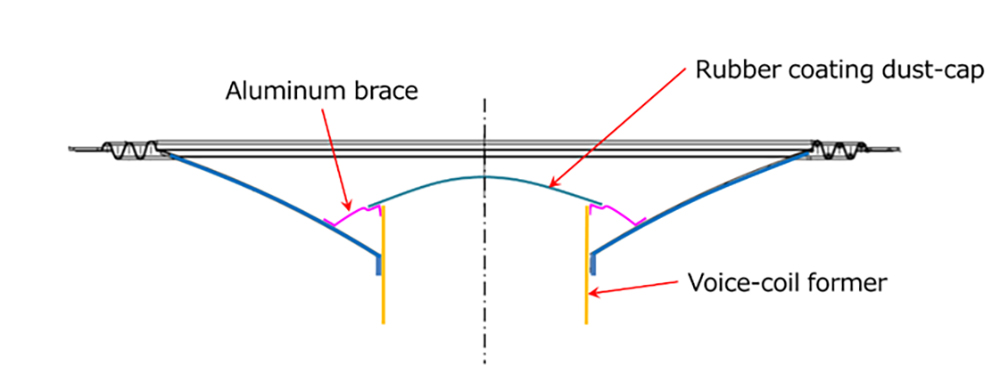

The combination of a newly developed MACC (Multi-layered Aramid Composite Cone) diaphragm and a delta bracing structure incorporated into the twin woofers produces a powerful bass with smooth directivity changes. The vibration-suppressing center cap with excellent flexibility and the corrugated surround back-coated with damping material contribute to a clear, distortion-free, powerful mid- to low-range sound. In addition, a long voice coil with a short magnetic gap, which is responsible for delivering considerable driving force with exceptional linearity, has the long pole piece structure that generates a symmetrical magnetic flux and is positioned in a double short ring to minimize its inductance fluctuations over the entire frequency range and reduce dynamic distortions.

RICH, NATURAL BASS REPRODUCTION

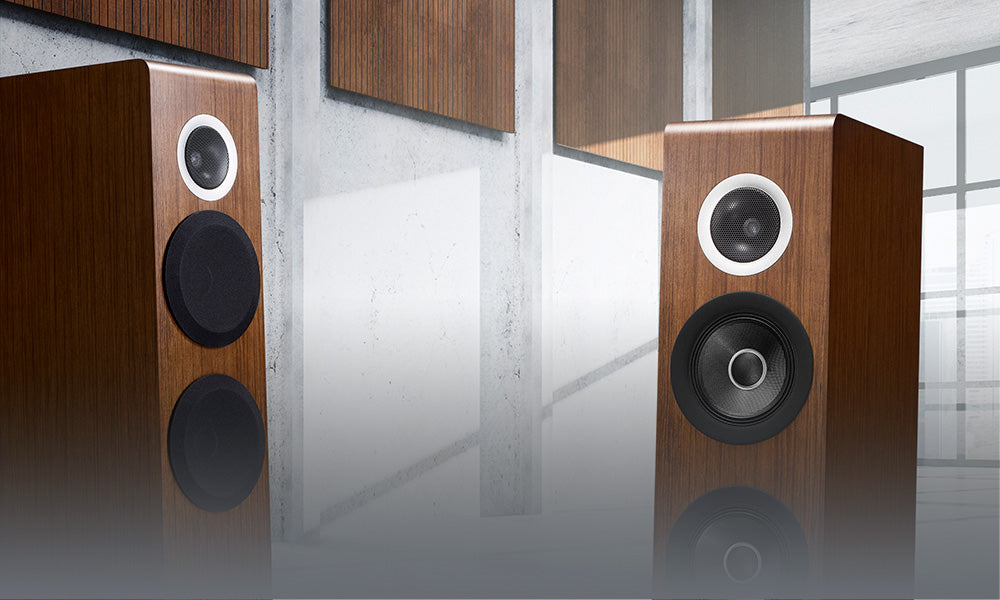

The port positioned on the bottom of the enclosure has openings to the front and the rear, essentially creating a port area the size of a large bass reflex port. This ingenious design lets the air pass through the port more slowly and contributes to a clear sound with a high signal-to-noise ratio. Embodying the long tradition of delivering single-point-of-source sound for which all TAD speakers are known, the TAD-E2 employs a slanted smallest-possible baffle that reduces the diffraction of the sound waves to deliver precise sound-field reproduction. The twin woofers are mounted to the optimum positions relative to the size of the enclosure to reduce internal standing waves. Inside the enclosure, sound-absorbing materials are positioned midair onto the braces that make up the SILENT (Structurally Inert Laminated Enclosure Technology) enclosure to control resonance effectively.
