The TL-1801 from TAD (Technical Audio Devices) is a low-frequency loudspeaker featuring an 18-inch (460mm) driver. It features a high power maximum capacity of 800W thanks to the combined use of a 100mm diameter x 23mm winding depth, edgewise-wound, oxygen-free copper voice coil, a ferrite magnetic circuit with a high flux density of 11,200G, a lightweight transducer system using a cone made of highly rigid pulp and Kevlar fibers, and an advanced heat radiation design. As a result, powerful sound reproduction with a minimum of distortion is possible, even with high-power input.
The frame for the driver is made of rigid die-cast aluminum alloy to support the magnetic circuit and to allow the transducer system to reproduce powerful, accurate bass. Frame resonance is suppressed by the seven frame arms. The cone is laminated with macromolecular film, and its surface specially treated to make it water-repellent and to prevent cone breakup from degrading sound quality.
Lightweight moving parts are employed and the voice coil is of the long-travel design, to ensure a high sensitivity of 96.5dB/1W, an exceptionally high figure for its size. The large input terminal permits direct connection of speaker cables up to 14mm² (6 Gauge) in diameter.
TL-1801 Specification
- Rated Impedance: 8 Ω
- Frequency Range: 26-2,000 Hz
- Highest Recommended Crossover: 800Hz
- Rated Input Power: 200 W
- Maximum Input Power: 800 W
- Sound Pressure Level: 96.5 dB (1W, 1m)
- Total Magnetic Flux: 2.82 x 10-3 Wb
- Magnetic Flux Density: 1.12 T
- Recommended Enclosure: 170 ～500 liter
- Baffle Opening Diameter: 426 mm
- Mounting Dimensions: 441 mm
- Weight: 12.6 kg

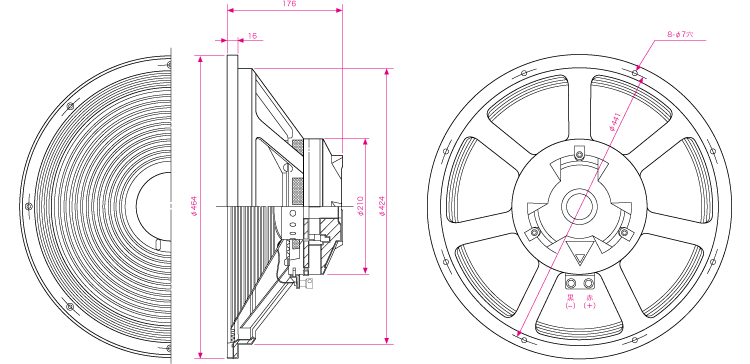

- Dimensions (diameter x depth): 464 x 176 mm
Theile-Small Parameters
- Fs: Free Air Resonance Frequency: 26 Hz
- Qms: Mechanical Q Factor: 7.9
- Qes: Electrical Q Factor: 0.39
- Qts: Total Q factor: 0.37
- BL: Force Factor: 21 Tm
- Mms: Mechanical Mass of Diaphragm and Free Air Load: 158 g
- Mmd: Mechanical Mass of Diaphragm: 114 g
- Cms: Mechanical Suspension Compliance: 2.37 x 10-4 m/N
- Vas: Equivalent Acoustic Volume: 0.500 m3
- Sd: Effective Piston Area: 0.122 m2
- Xmax: Max Linear Peak Excursion (0-P): 7.5 mm
- Max: Excursion Before Damage (P-P): 40 mm
- Vd: 914 cm3
- Revc: Voice Coil Resistance: 6.6 Ω
- Levc: Voice Coil Inductance at 1kHz - 2.0 mH
- ηo: Relative Efficiency: 2.20%
Diaphragm repair parts
DP-1801
