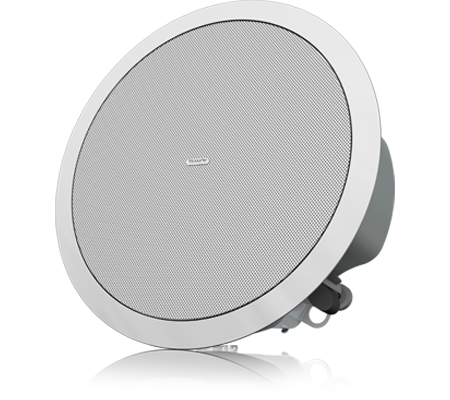

Tannoy CMS 503DC LP

Full range ceiling loudspeaker for installation applications

60 Watts continuous, 240 Watts peak power

Next generation 5" Dual Concentric driver featuring Omnimagnet technology

Torus Ogive waveguide for improved high frequency response and directivity

Ultra-shallow depth profile for applications where cavity space is restricted

UL 1480 certified for general signalling systems

UL 2043 certified for air-handling spaces

Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input

Low insertion loss 30 W line transformer with easily accessible tapping switch

Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel

Semi matt white finish fits unobtrusively in any environment

Powder coated UV resistant perforated steel mesh grille with dust protection

Removable magnetic grille for custom painting

Optional ARCO designer grilles available for minimal architectural impact

Self-aligning 4 way clamp mounting system

Mounting C-ring and ceiling tile rails included

Designed and engineered in the U.K.
