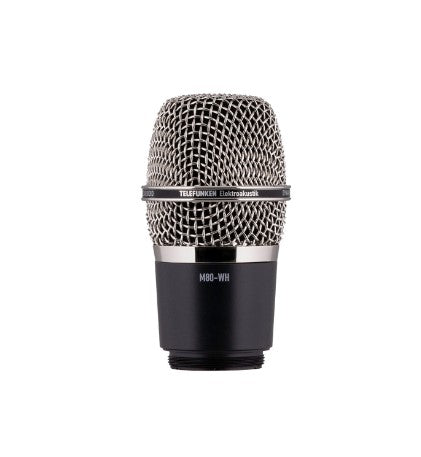

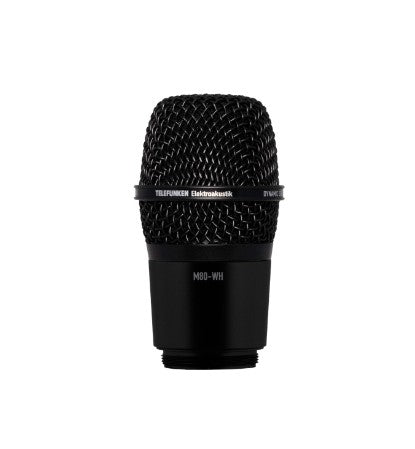

The M80-WH is the wireless capsule head variant of the M80 Dynamic. The wireless capsule is sonically identical to the M80 standard and M80-SH and has the same condenser like performance, minimal proximity effect, and superior feedback rejection one expects in its sibling products.
The product features the same exact dynamic capsule, head grille, and output transformer all neatly packed within a capsule body that is ready to be mated to your wireless transmitter system of choice.
Compatible with the following transmitters:
Shure
• Axient
• UHF-R
• QLXD
• ULXD
• ULX
• PG
• PGX
Lectrosonics
• HH
• HHa
Sony
• UTX-M03
NOT COMPATIBLE with the following transmitters:
Shure
• BLX
• GLXD
• PGXD
The TELEFUNKEN Elektroakustik M80 Dynamic microphone has rapidly become a new standard for live performance and stage use. The microphone features a low-mass capsule built with a super thin Mylar membrane that is coupled with our propriety step-up transformer to give superior clarity and extended high frequency response (which in many ways is similar to what one might expect from a condenser microphone), in a rugged design meant for daily abuse in touring applications.
Technical Specifications
Type: Dynamic
Polar Pattern: Supercardioid
Frequency Range: 50 Hz – 18 kHz, ±3 dB
Capsule: 25mm Dynamic Moving Coil
Transformer: TELEFUNKEN Elektroakustik T80
Sensitivity: 1.54 mV/Pa, ±1 dB
Output Impedance: 325 Ω
Maximum SPL (for 1% THD): 135 dB
Dimensions/Size: 92 mm L x 48 mm Dia
Weight: 166 g
Note: As of February 28, 2023, lead times on the M80 and M81 variations of Dynamic microphones is 16+ weeks.
