Telefunken TF11 FET

Model

Telefunken TF11 FET

Blending an Austrian-inspired voicing similar to the legendary C12 with modern FET high performance, the phantom-powered TF11 exhibits a beautifully open and detailed frequency response with exceptionally fast transient response, high SPL handling, and low self-noise. The compact, cardioid only TF11 is versatile, portable, and dependable for all recording environments from home to studio to stage.

Circuit Design

The TF11 features a unique combination of circuit elements shared with other TELEFUNKEN Elektroakustik designs. The CK12-style edge terminated capsule is a single membrane version of the capsule featured in the TF51. The amplifier is a unique proprietary take on the classic FET microphone amplifier similar to the M60, coupled with a custom large format nickel-iron core transformer made in the UK by OEP/Carnhill. Premium through-hole components include UK-made polystyrene film capacitors, Nichicon Fine Gold electrolytic capacitors, and a high-performance, ultra-low-noise JFET amplifier.

Key Features

• Cardioid polar pattern

• Compact travel and budget friendly design

• Open and detailed tone with fast transient response

• Designed and assembled by hand in the USA

• High SPL handling, low noise phantom-powered FET amplifier

• CK12-style capsule and UK-made OEP/Carnhill transformer

Applications

• Live Sound: Drums, Piano, Acoustic Instruments

• Vocals: Pop, Rock

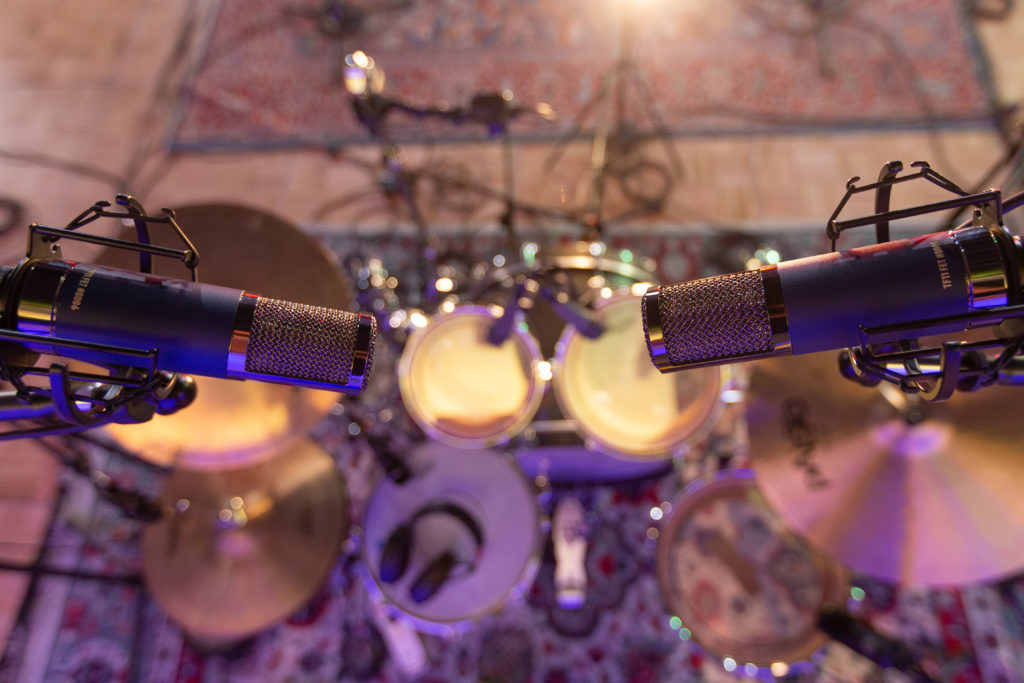

• Drums: Overheads

• Acoustic Guitar

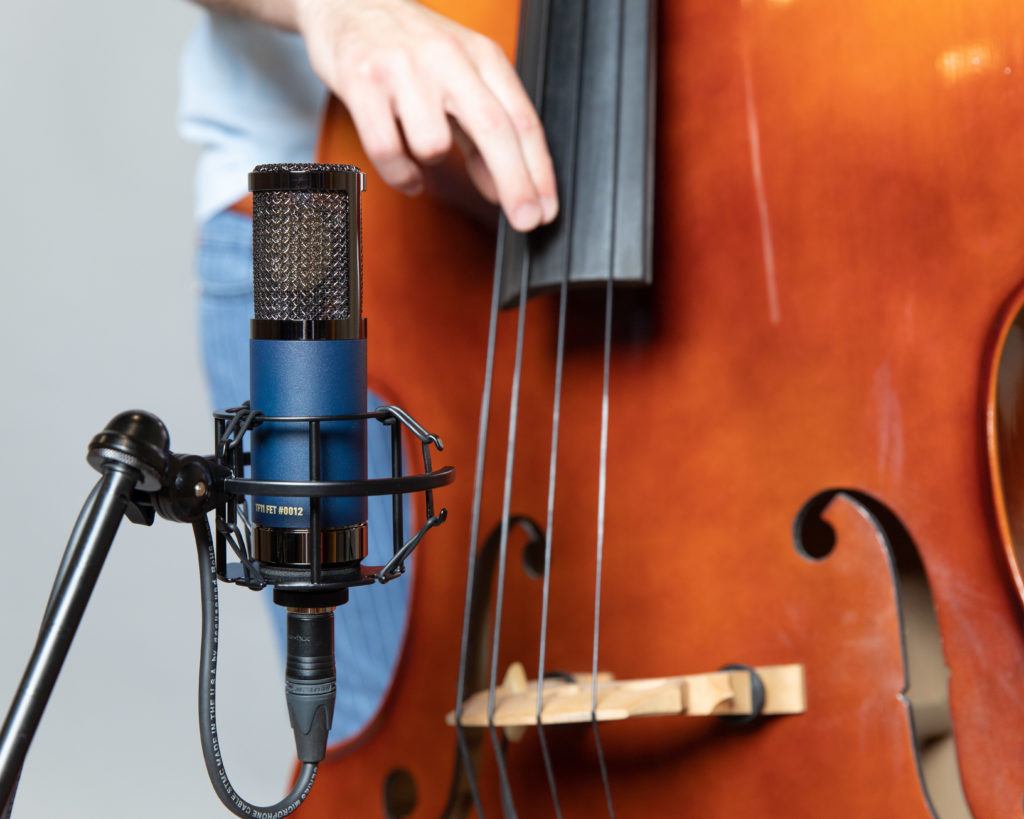

• Cello, Upright Bass

• Percussion

Accessories

Every TF11 FET microphone system comes with a MC11 Microphone Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.

Technical Specifications

Type: FET Condenser

Polar Pattern: Cardioid

Frequency Range: 20 Hz – 20 kHz, ±3 dB

Power Source: +48V Phantom Power

Capsule: TK51S - Edge Terminated Large Diaphragm, Single Membrane

Tube: n/a

Transformer: OEP/Carnhill T218

Sensitivity: 14 mV/Pa, ±1 dB

THD at 1kHZ at 1Pa (Amplifier): < 0.01%

Output Impedance: 110 Ω

Maximum SPL (for 1% THD): > 135 dB

S/N Ratio: 90 dBA

Self Noise (Amplifier): 4 dBA

Dimensions: 175 mm L x 46 mm Dia

Weight: 545 g

Included Accessories: Shock Mount, Stand Mount, Mic Sleeve, Mic Case
