Telefunken TF17 FET

Sale price$ 895.00 Regular price$ 1,029.00
Save $ 134.00
SKU: SYTM-102
Options: TF17 FET Standard

Options
Call us at 1-877-223-8858 or Ask a Question below

Telefunken TF17 FET

Model

Telefunken TF17 FET

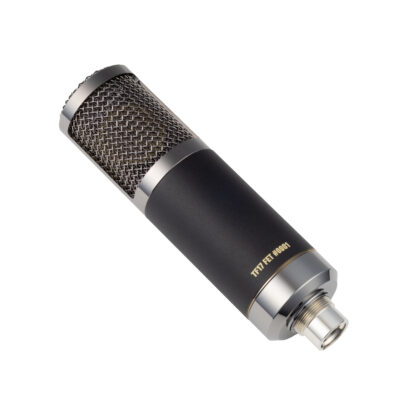

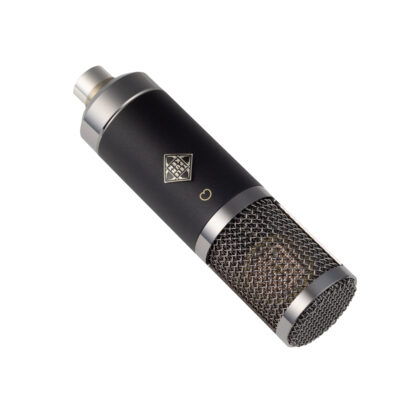

The fixed cardioid TF17 combines a rich, mid-forward voicing with portable and dependable modern phantom-powered circuitry for all recording environments.

TF17 FET

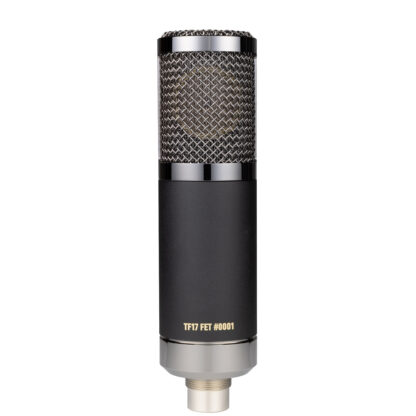

The TF17 is the newest voice in the Alchemy Series and the latest offering of Telefunken’s vintage-inspired phantom-powered condenser microphones. Combining an iconic mid-forward “German” voicing with modern FET technology, the TF17 is sonically bold with a punchy transient response, high SPL handling, and very low self-noise. Its extended low frequency response, strong midrange, and a smooth top end benefit sources including voice, drums, electric guitar, and piano. Designed with all recording environments in mind, the fixed true cardioid TF17 is perfect for home, studio, or stage. The TF17 features a K47-style center-terminated capsule, premium through-hole components and a UK-made OEP/Carnhill transformer with a high-grade nickel-iron core.

FEATURES

  • Bold and forward tone with punchy transient response
  • Compact size suitable for all recording environments
  • Fixed true cardioid polar pattern with K47-style capsule
  • High SPL handling, low noise phantom-powered FET amplifier
  • UK-made OEP/Carnhill transformer with high grade nickel-iron core
  • Designed and assembled by hand in the USA
  • Recommended Applications: Vocals, Drums & Percussion, Electric Guitar, Live Sound

TECHNICAL SPECIFICATIONS

  • Type: FET Condenser
  • Polar Pattern: Cardioid
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: +48V Phantom Power
  • Capsule: TK47S – Center Terminated Large Diaphragm, Single Membrane
  • Transformer: OEP/Carnhill T217
  • Sensitivity: 12 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): 0.01%
  • Output Impedance: < 200 Ω
  • Maximum SPL (for 1% THD): > 135 dB
  • S/N Ratio: 91 dBA
  • Self Noise (Amplifier): 3 dBA
  • Dimensions: 175 mm L x 46 mm Dia
  • Weight: 545 g
  • Included Accessories: Shock Mount, Stand Mount, Mic Sleeve, Mic Case

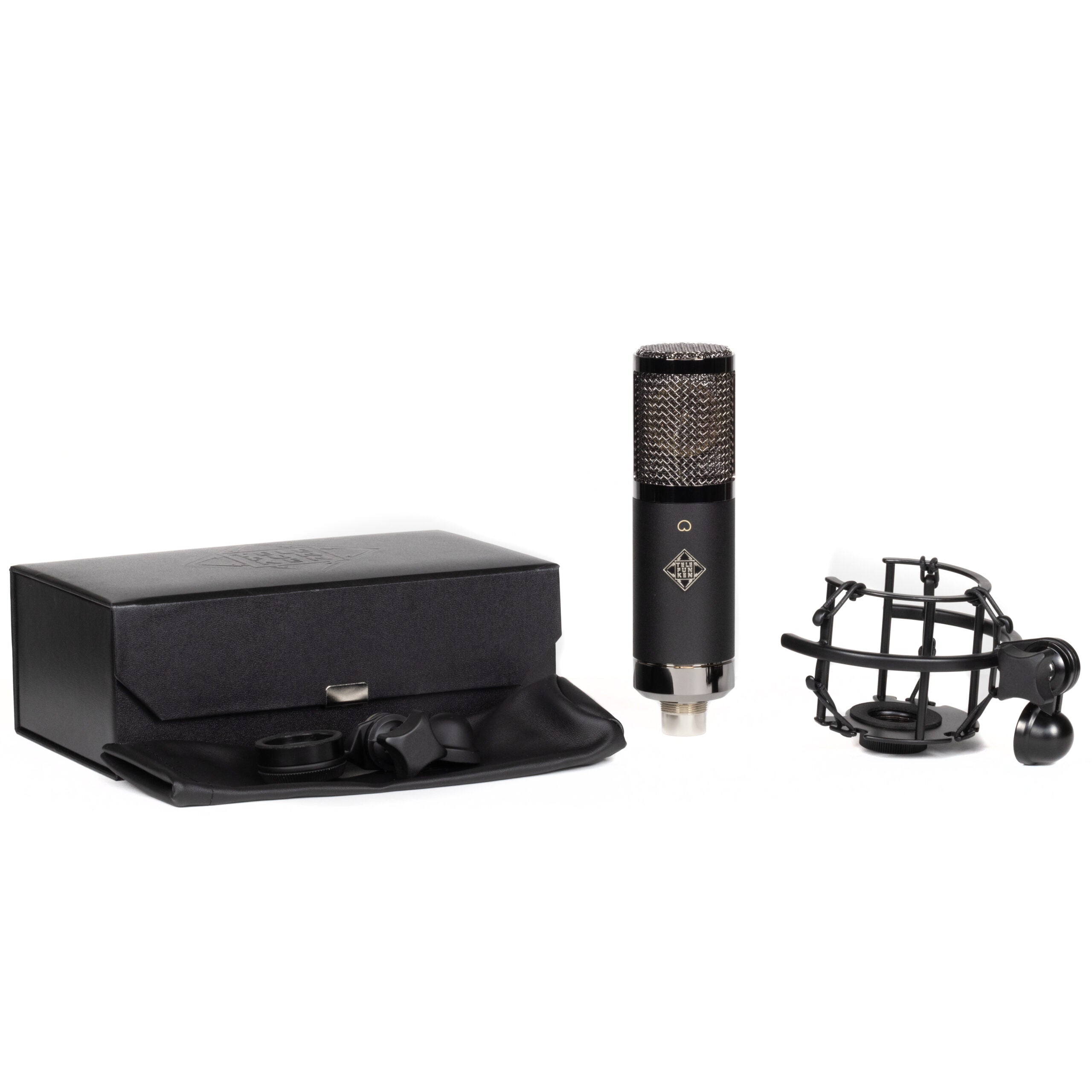

TF17

Single microphone system

Each system includes:

  • TF17 Microphone

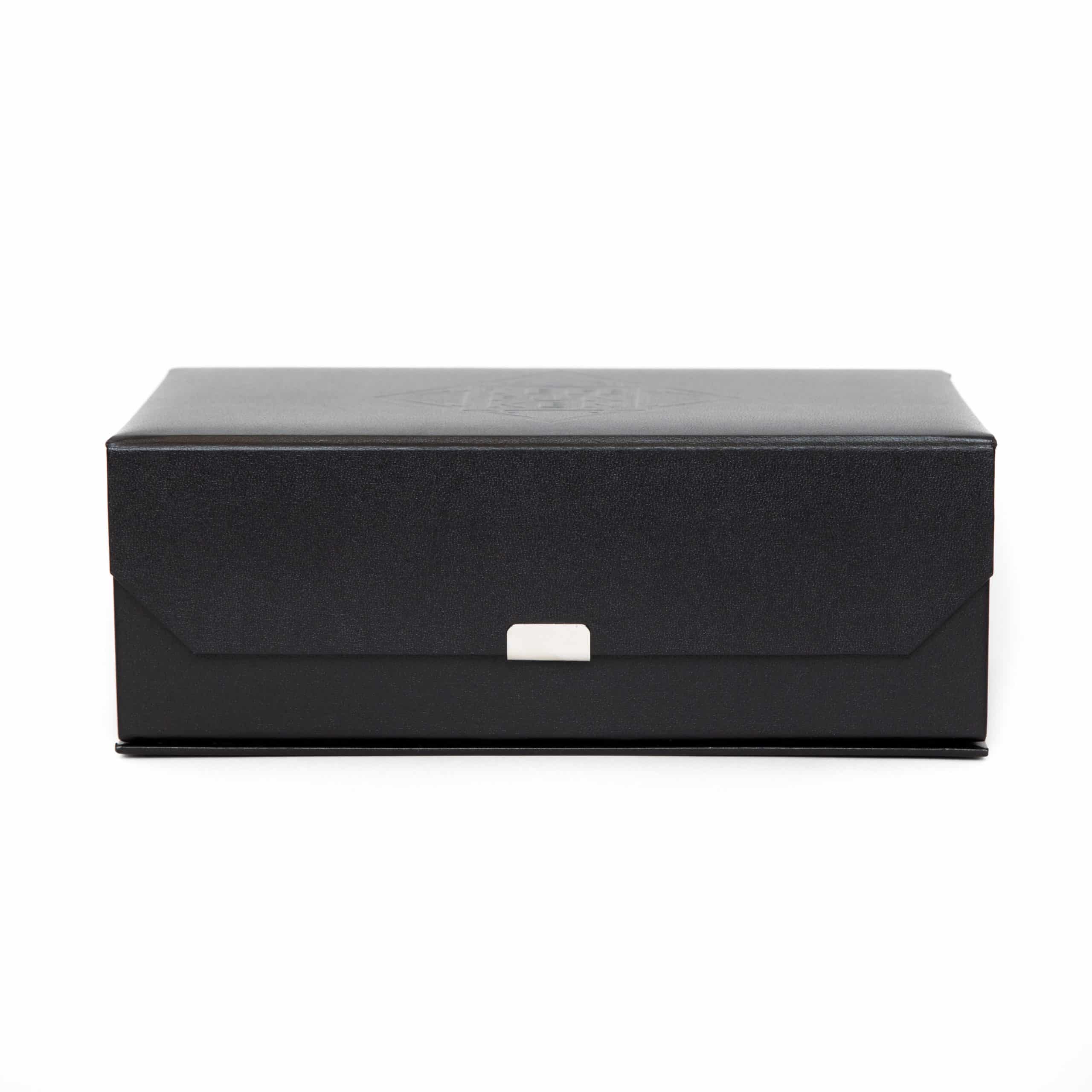

  • MC11 Microphone Case

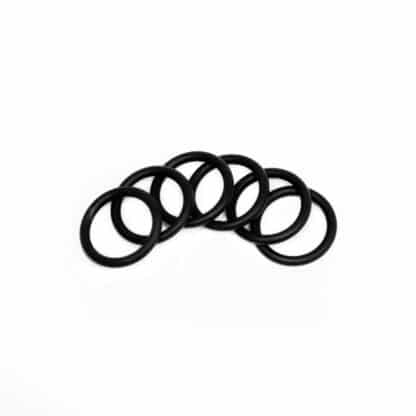

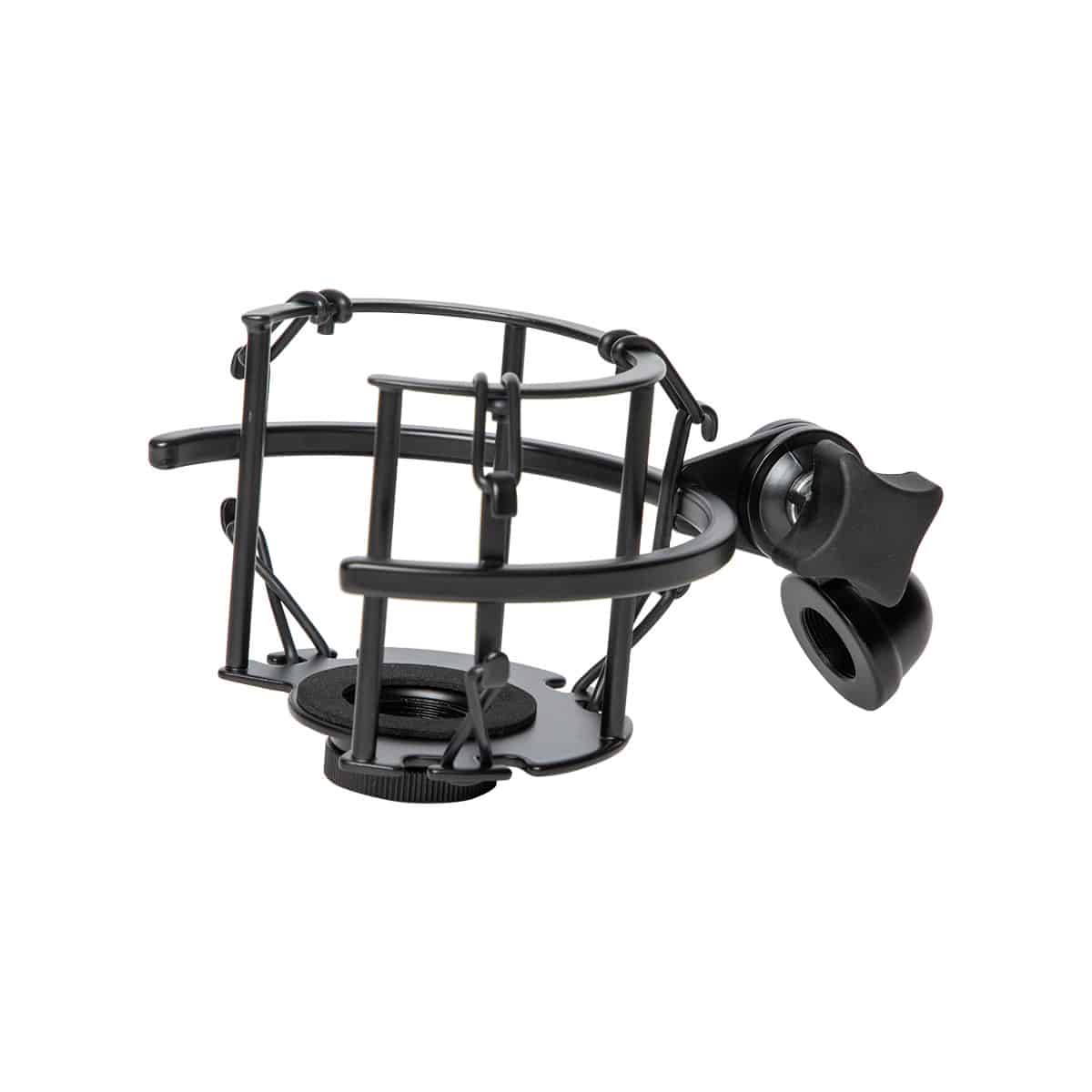

  • M 703 Shock Mount

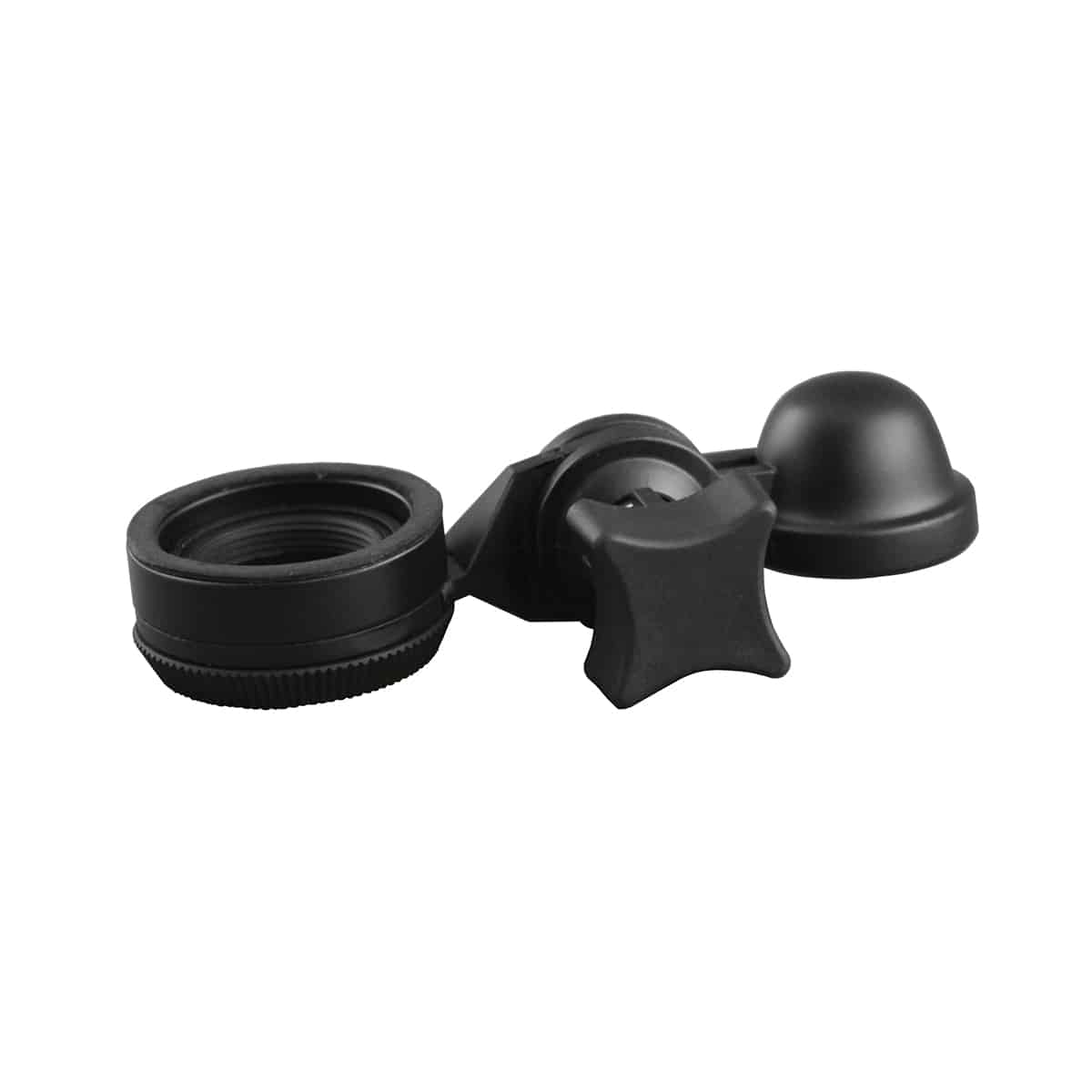

  • M 782 Stand Mount

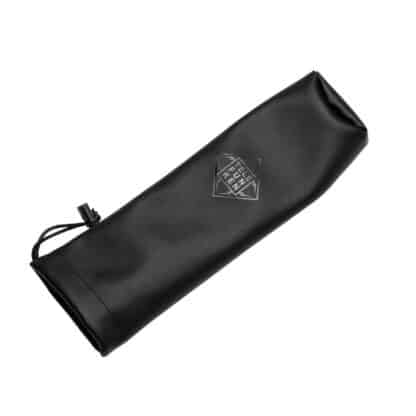

  • MS01 Microphone Sleeve

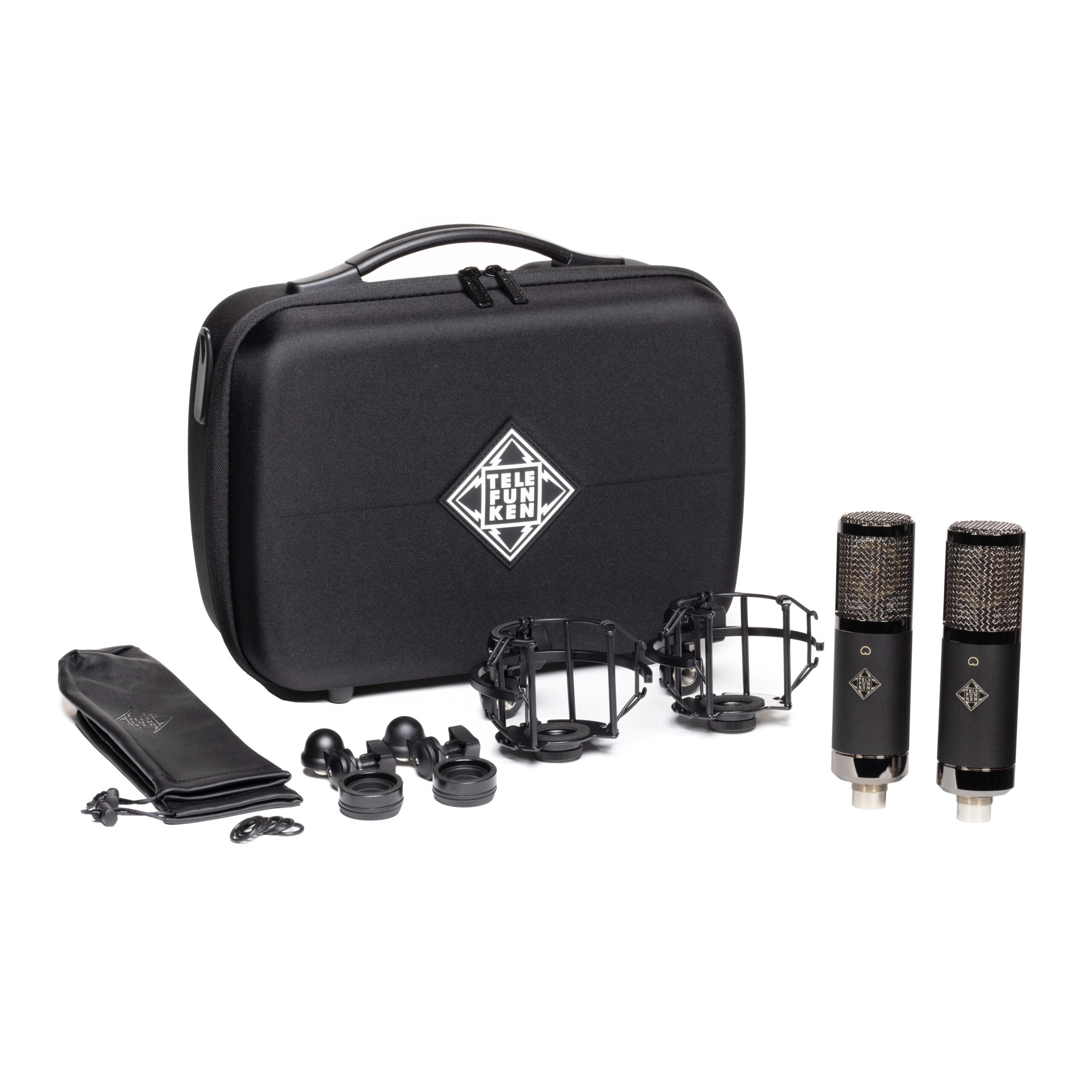

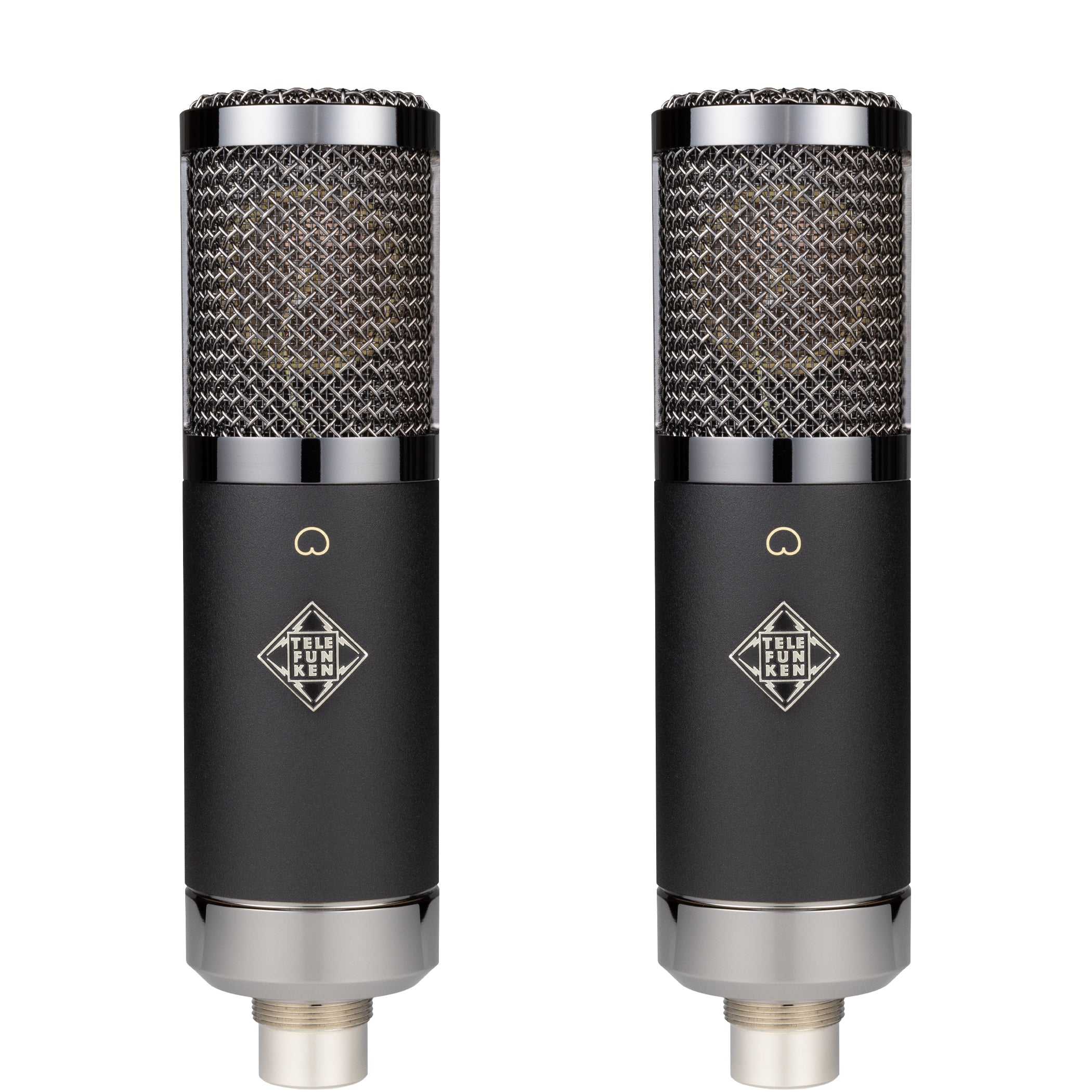

TF17 Stereo Set

A frequency and gain matched pair of microphones

Each system includes:

  • (2x) Matched TF17 Microphones
  • ZC11S Zipper Case
  • (2x) M 703 Shock Mounts
  • (2x) M 782 Stand Mounts
  • (2x) MS01 Microphone Sleeves
