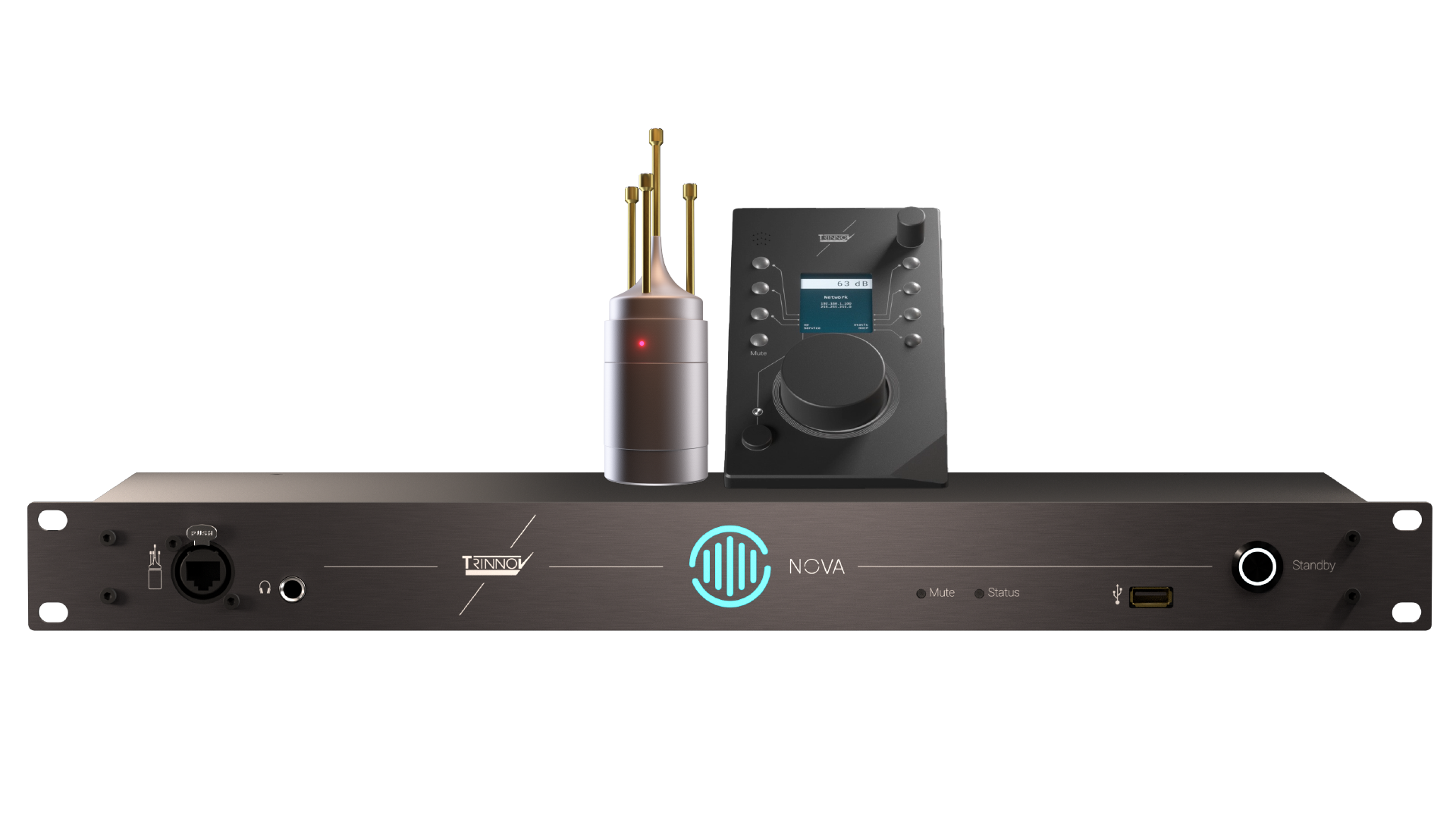

The Trinnov NOVA is a compact, powerful, and flexible device designed to serve as the backbone of a studio's monitoring system. It integrates three primary functions:
-
Loudspeaker/Room Optimization: Utilizing Trinnov's acclaimed Optimizer technology, the NOVA enhances audio quality by calibrating and correcting room acoustics and speaker performance. It supports configurations from stereo up to 5.1 surround sound and can process and optimize up to six speakers, including bass management.
-
Monitor Controller: NOVA offers comprehensive monitoring control, allowing seamless switching between analog and digital sources and multiple speaker sets, regardless of their format or connection. It is Avid EUCON compliant and fully compatible with Trinnov's dedicated hardware controller, "La Remote," enabling personalized control over various functions.
-
Audio Interface: With integrated Dante audio-over-IP capabilities, NOVA can function as an audio interface, facilitating direct DAW-to-monitoring integration with 8 inputs and 8 outputs to and from your digital audio workstation.
Key Features:
-
High-Quality I/O: NOVA provides a comprehensive set of inputs and outputs, including analog, digital, and Dante connections, supporting various studio configurations.
-
Upgradeable Channels: The device comes standard with two optimization channels and can be upgraded to six channels through additional licenses, accommodating expanding studio needs.
-
Enhanced 3D Microphone: The measurement microphone has been improved for simplicity and reliability, now equipped with phantom power and integrated memory, streamlining the calibration process.
-
User-Friendly Interface: NOVA features a redesigned user interface with a step-by-step setup guide, making calibration and operation straightforward. It also includes a dedicated app for wireless control over main features such as volume, mute, and preset selection.
Overall, the Trinnov NOVA combines advanced acoustic optimization with versatile monitoring control and audio interfacing, making it an essential tool for modern music production environments.
Specifications
Front panel
- Microphone Input:1x Calibration Microphone Ethercon Input
- Headphone Output:• 1x Jack 6.35 stereo Headphone Output
- La Remote connectivity:1x USB Type A port for La Remote
- Standby / Mute button:Yes
- Status:LED Status
Audio & processing
- ADC Resolution / Sampling Rate:24 Bits/192 kHz
- DAC Resolution / Sampling Rate:24 Bits/192 kHz
- A/D Dynamic Range (AES17):115 dB (A-Weighted, ref. +18dBu)
- D/A Dynamic Range (AES17):115 dB (A-Weighted, ref. +18dBu)
- D/A THD+N ratio:> 110dB, 1kHz@0dBFS (20kHz BW)
- Processing Sampling Rate:Native up to 96kHz (192kHz coming soon)
- Processing Resolution:64 bits floating point
- Processing channels:2 Optimizer licenses included (upgradable)
- Zero latency bypass:Software or Hardware Bypass
- Crossovers / multiway:coming 2025
Digital Audio Connectivity
- ADAT/SPDIF Input:1x ADAT or SPDIF optical input
- SPDIF Input:1x SPDIF coaxial input
- Ethernet port:2x Ethernet ports (Dante 16 in/16 out)
- XLR Output:1x AES3 XLR stereo output
Analogue Audio Connectivity
- Balanced Input:4x Jack 6.35 Balanced Inputs
- Balanced Input:2x XLR Balanced Inputs
- Balanced Output:6x XLR Balanced Outputs
Power supply
- Power requirement:100V-240V AC 50Hz/60Hz
- Power consumption:15W
- Mains fuse:T500mA slow blow
- Transformer:Integrated (no external transformer, standard IEC socket)
Network
- Network connectivity:IPV4 dual connector (configurable)
- IP Configuration modes:DHCP / Auto-IP link local / fixed IP
- Compatibility:Eucon compatibility via the “Trinnov App”
Weight & dimensions
- Dimensions (L x l x P) mm:482 x 44 x 192
- Dimensions (L x l x P) inches:19” x 1.7” x 7.5”
- Shipping box dimensions (W x H x D) cm:59 x 7 x 30
- Weight:2.5 kg / 5.5 lbs
- Shipping weight / volume:3.7 kg / 8.1 Lbs
- Rack Mounting:1U - Fixed Rack Ears
Options
- Processing channels upgrade:2-channel software bundle (up to 6 total)
- 3D Measurement Microphone:Ethercon connector
- USB Hardware Remote Controller:La Remote
